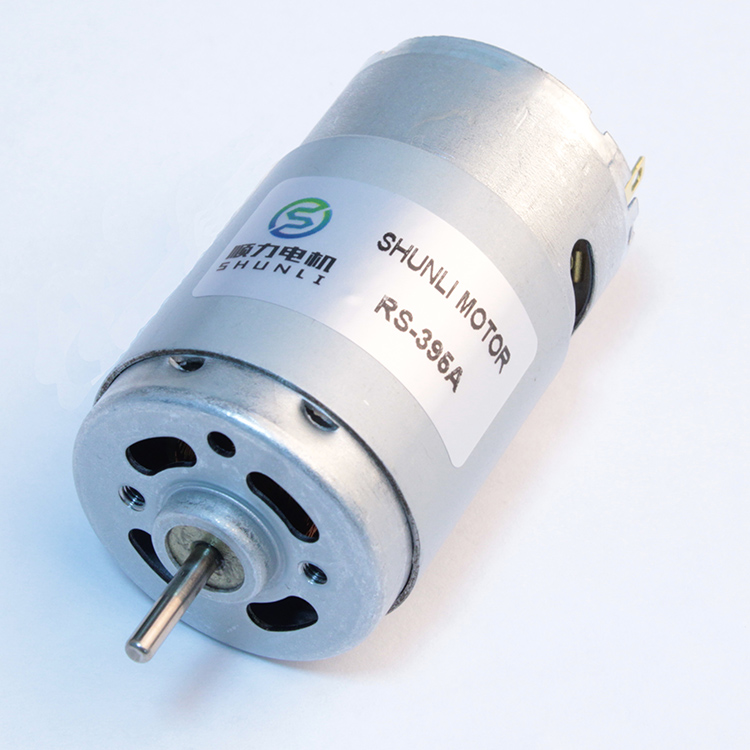

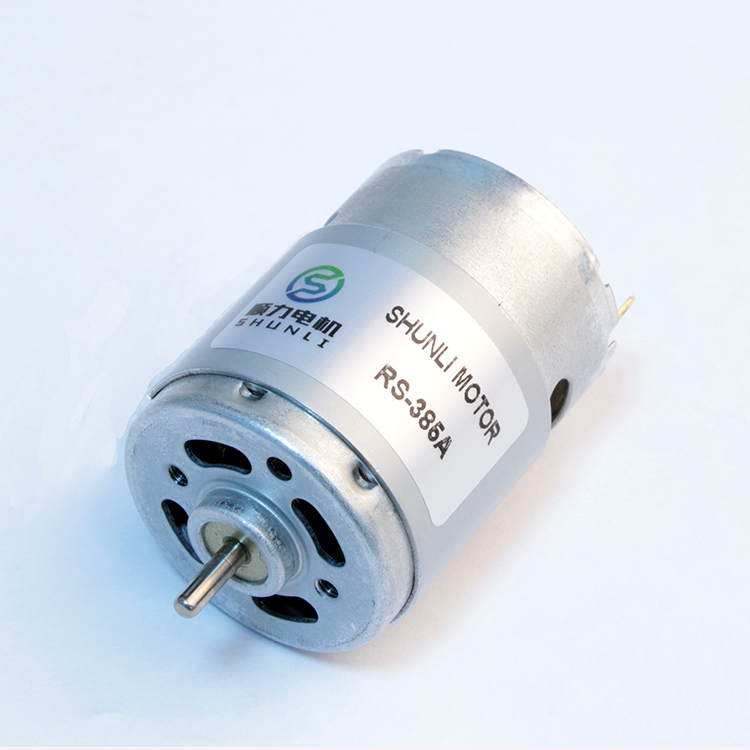

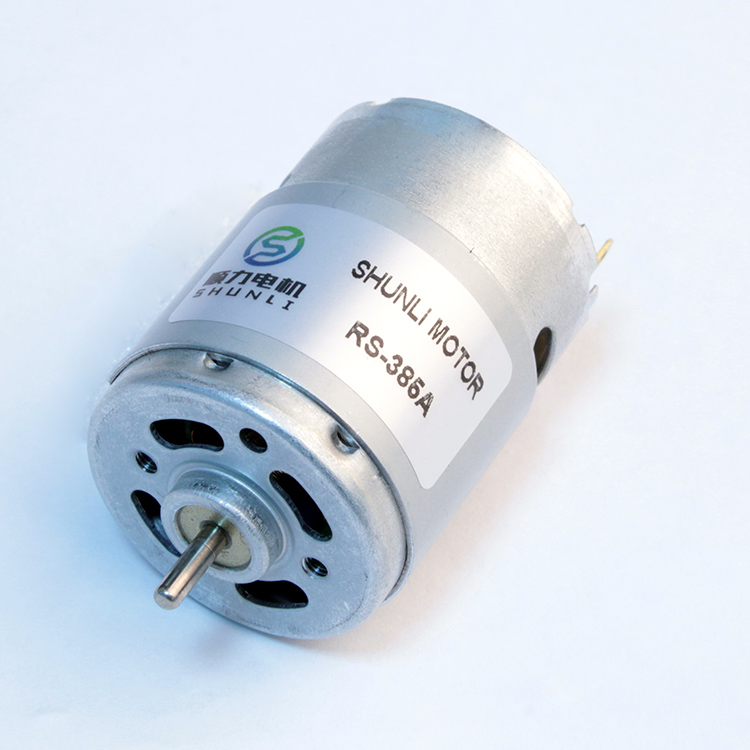

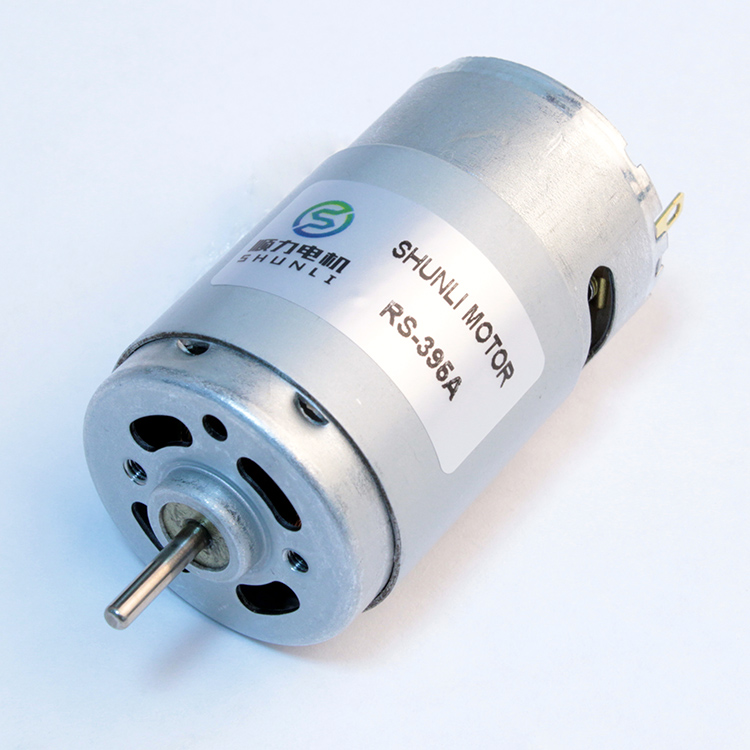

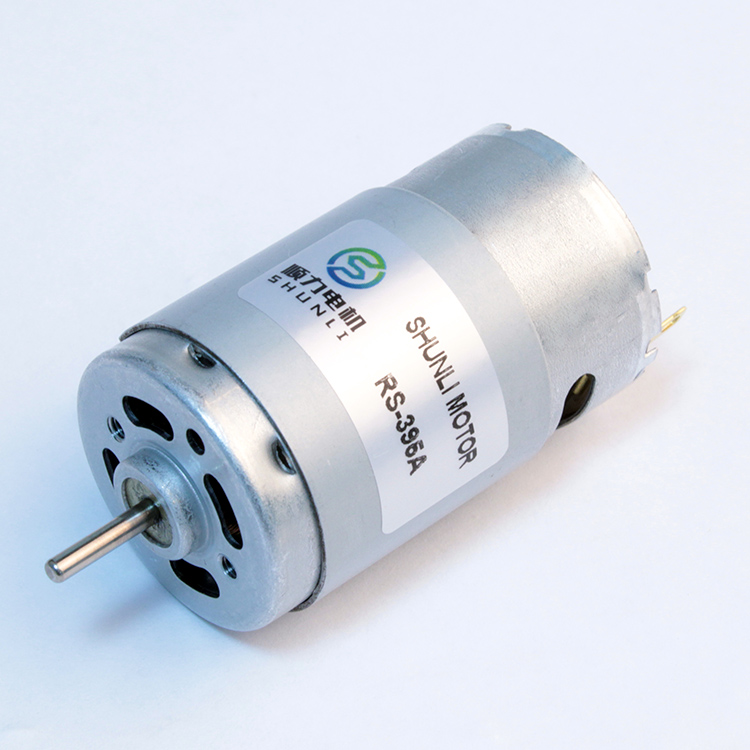

390 Dc Motor for Machine Fan From Shenzhen Supplier 12v 6000rpm Motor

1 / 5

390 Dc Motor for Machine Fan From Shenzhen Supplier 12v 6000rpm Motor

Send Inquiry

Product Description

390 Dc Motor for Machine Fan 12v 6000rpm Motor

Product Description

390 dc motor for machine fan 12v 6000rpm motor

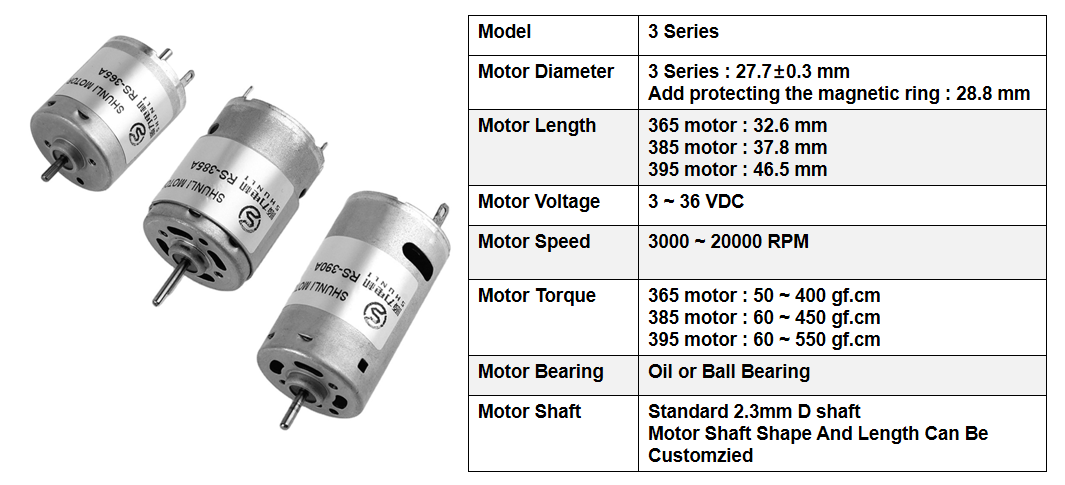

Product Details

⚙️

Motor Customized Specification is available. Please contact us for details.

Reference Drawing

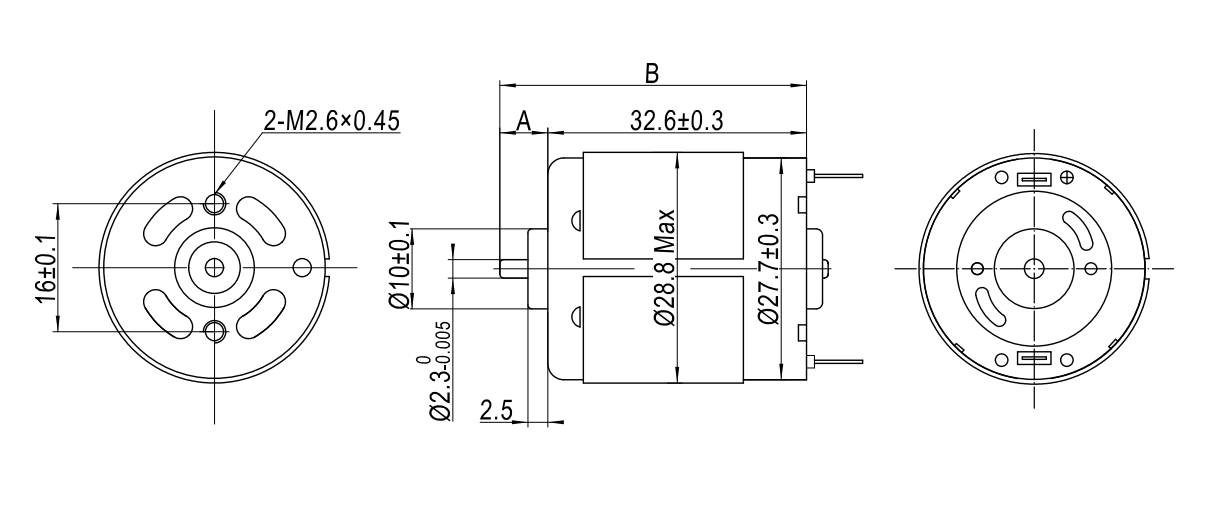

RS - 365

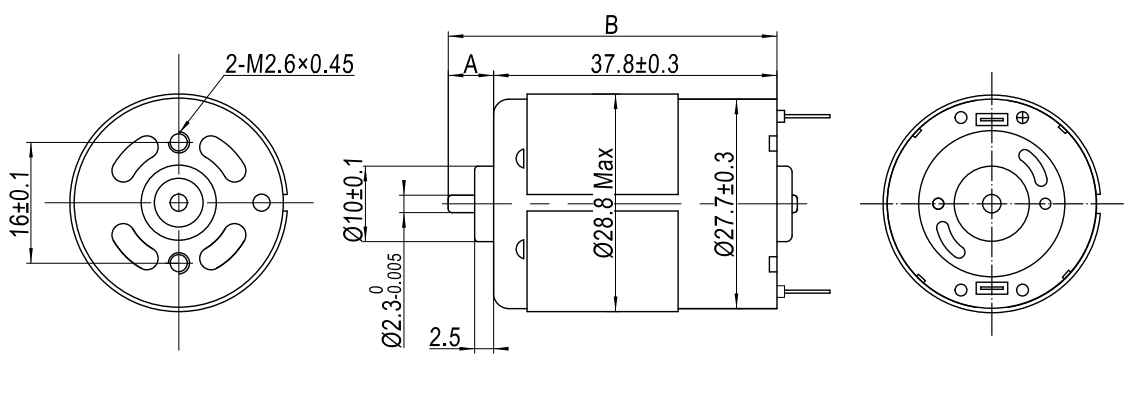

RS - 385

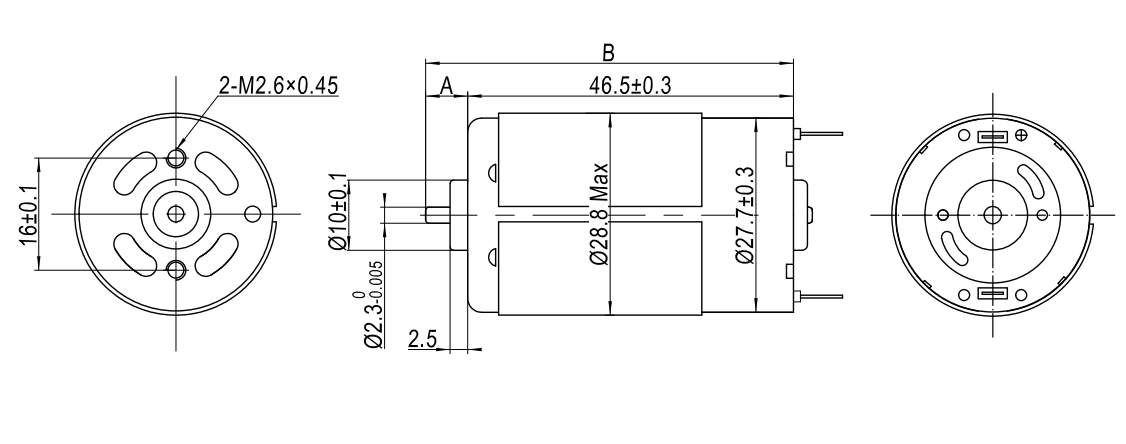

RS - 395

📏

The length of shaft can be customized. Please contact us for specifications.

Reference Datasheet

PMDC MOTOR Technical Data
Model		Rated Voltage (V)		No-Load		Rated				Stall
		Operating Range	Nominal	Speed	Current	Speed	Current	Torque	Power	Current	Torque
		Operating Range	Nominal	RPM	A	RPM	A	mN.m / gf.cm	W	A	mN.m / gf.cm
RS-390SH	20156R	6.0~12.0	12VDC	5000	0.08	4243	0.33	6.07 / 61.9	2.72	2.22	42.2 / 430
RS-390SH	2975	6.0~12.0	12VDC	12000	0.29	10165	0.33	5.75 / 58.6	1.31	8.9	80.4 / 820
RS-395SH	15130	6.0~12.0	12VDC	3650	0.66	2949	0.25	5.83 / 59.5	1.8	1.06	30.4 / 310
RS-395SH	15100R	6.0~24.0	24VDC	10300	0.07	8893	0.38	7.09 / 72.3	6.68	2.66	54.9 / 560

Give us a chance to cooperate with you!

Frequently Asked Questions (FAQ)

Can the specifications of the 390 DC motor be customized?

Yes, the motor specifications such as voltage, speed, current, and torque can be customized to match your specific application requirements.

Is it possible to adjust the shaft length for these motors?

Absolutely. The length and shape of the motor shaft can be customized according to your mechanical design demands.

What are the primary applications of the RS-390 and RS-395 motors?

These permanent magnet DC (PMDC) motors are widely used in machine fans, household appliances, smart devices, and other small-scale mechanical assemblies.

What voltage options are available for the RS-395SH motor model?

According to the technical datasheet, the operating range varies from 6.0V to 24.0V, with nominal ratings typical at 12VDC and 24VDC depending on the winding configuration.

How can I obtain the reference drawings and datasheets for my design?

You can reference the technical drawings and specifications listed above for models RS-365, RS-385, and RS-395, or request specific CAD files for custom configurations.
