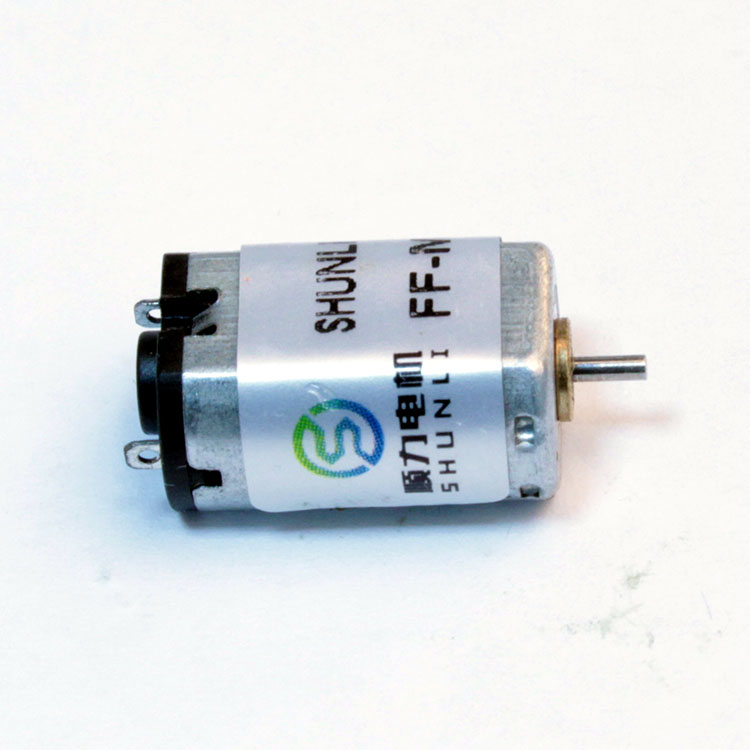

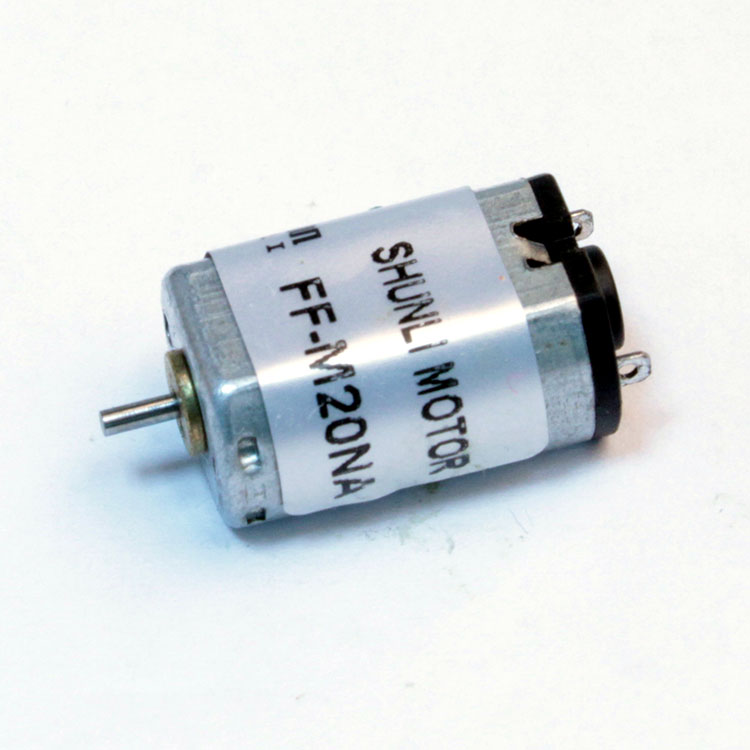

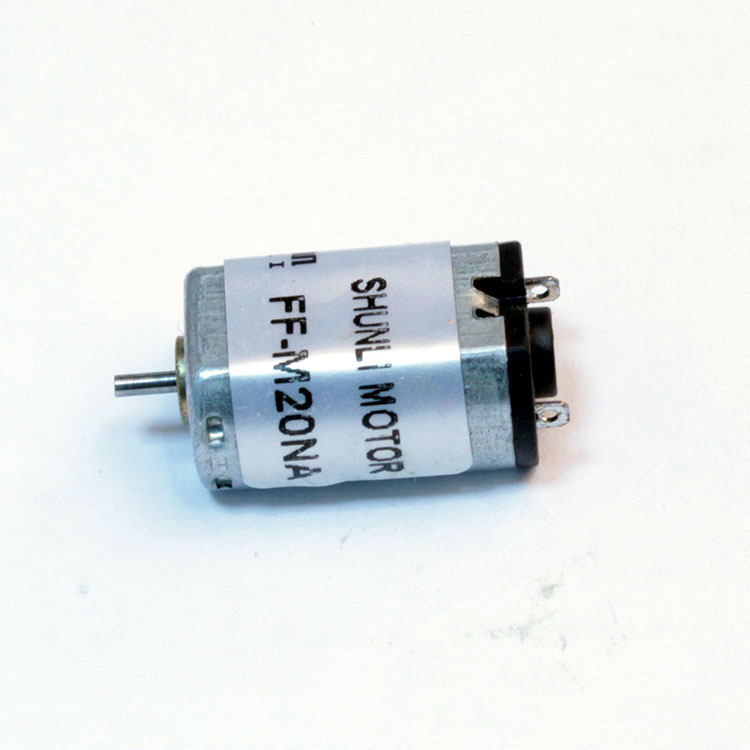

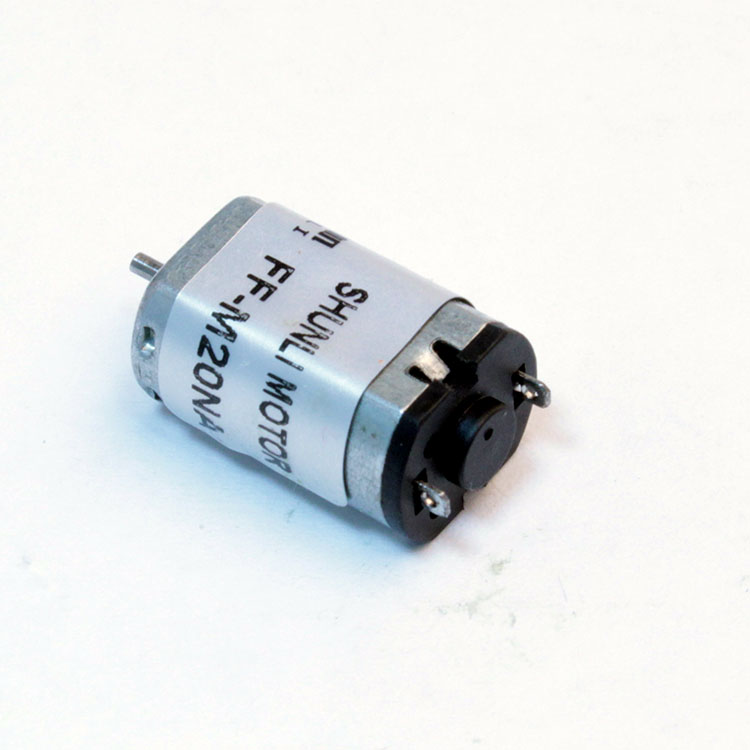

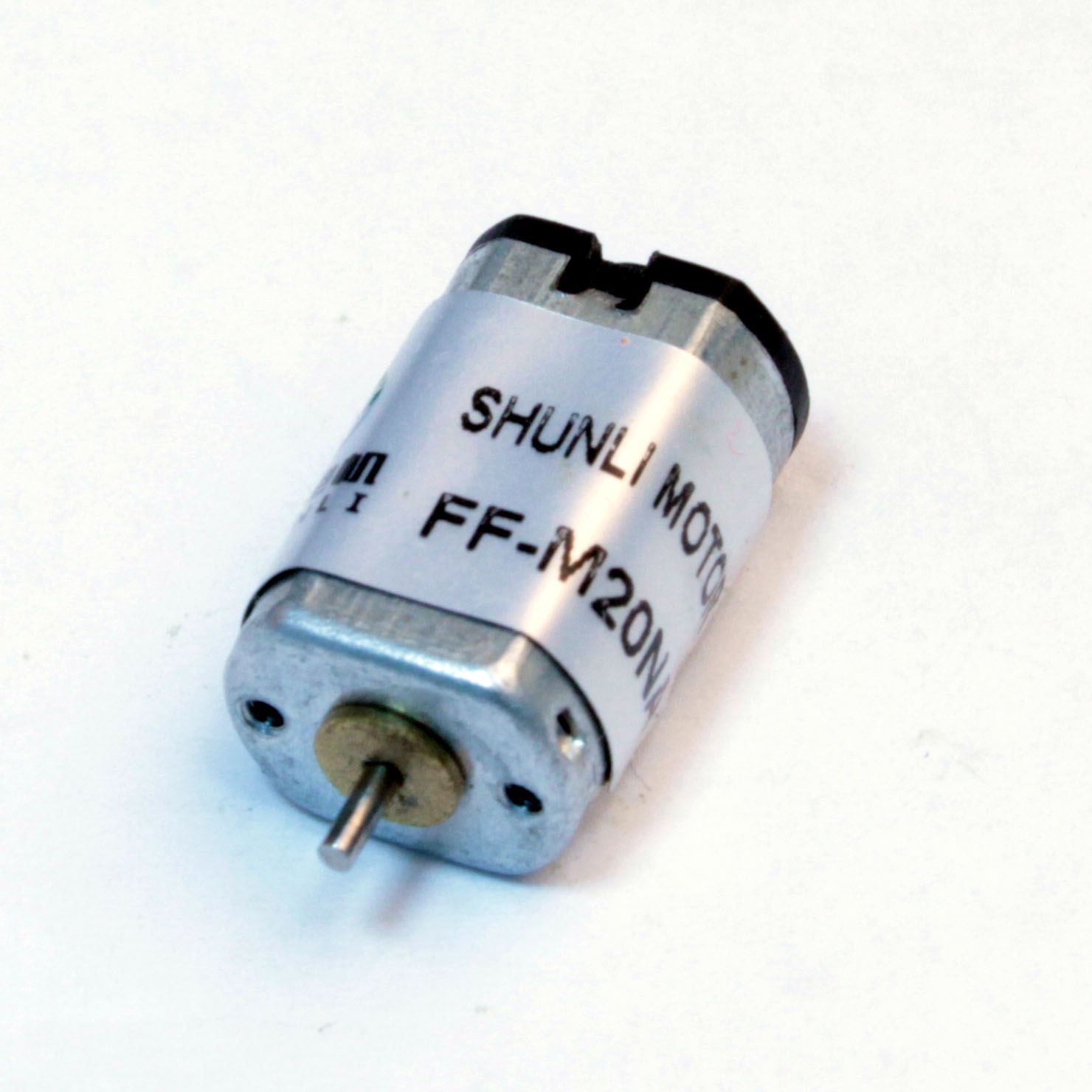

8mm *10mm M10 Toys Dc Mini Small Motor 1.5v-6v

Promotion

Our motors have long life, high efficiency and good stability. Insert the drive inside the motor to capture data more accurately.

Product Description

PMDC MOTOR Technical Data
PMDCMOTOR Model		Rated Voltage (V)		No-Load		Rated				Stall
PMDCMOTOR Model		Operating Range	Nominal	Speed (RPM)	Current (mA)	Speed (RPM)	Current (mA)	Torque (mN.m / gf.cm)	Power (W)	Current (mA)	Torque (mN.m / gf.cm)
FF-M10VA	06230	2.0~5.0	4.5 VDC	23200	0.065	17500	0.14	0.098/1	0.2	0.39	0.39 / 4
FF-M10VA	09120	1.0~3.0	1.5 VDC	14000	0.12	6000	0.3	0.157/1.6	0.08	0.25	0.25 / 2.6

Click on the tilt font to know more parameters!

Application

Certifications

Why Choose Us

1. Factory Strength

We are a factory specialize in producing motors more than 14 years, professional R&D team mature management will bring you a pleasant shopping experience.

2. Quality Control

In order to confirm quality, from we receive material to shipment to be carefully checked every step of the way. Quality is our basis of our development.

Our Services

We are gold seller and in possession of high credibility.

100% on-time delivery rate confirm your product arrives timely.

Samples will be produced within 2 weeks. Customized samples will be produced within 3 weeks.

Timely reply, your message will be replied within 2 hours.

FAQ

Are you a trading company or manufacturer?

We are a factory. We specialize in micro DC motors and DC gear motors for more than 14 years.

What is the payment term for a new customer?

We can establish a secure online transaction order for our new customers, supporting online credit card payments, Visa, PayPal, or T/T.

I cannot find a suitable motor on your website, can you customize it for me?

Yes, we can customize a suitable motor according to our customer's specific technical requirements.

Do you have certificates for the motors?

Yes, we hold CE, FCC, ISO, and other relevant certificates. If you require other specific certifications, we can apply for them.

How do you manage quality control?

We have dedicated inspection personnel on each production line. Finished motors undergo comprehensive testing using advanced equipment, including Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Chambers, and Noise Testers.

What is the typical lead time for standard and customized samples?

Standard samples are generally prepared and produced within 2 weeks, while customized specifications or unique requests are completed within 3 weeks.
