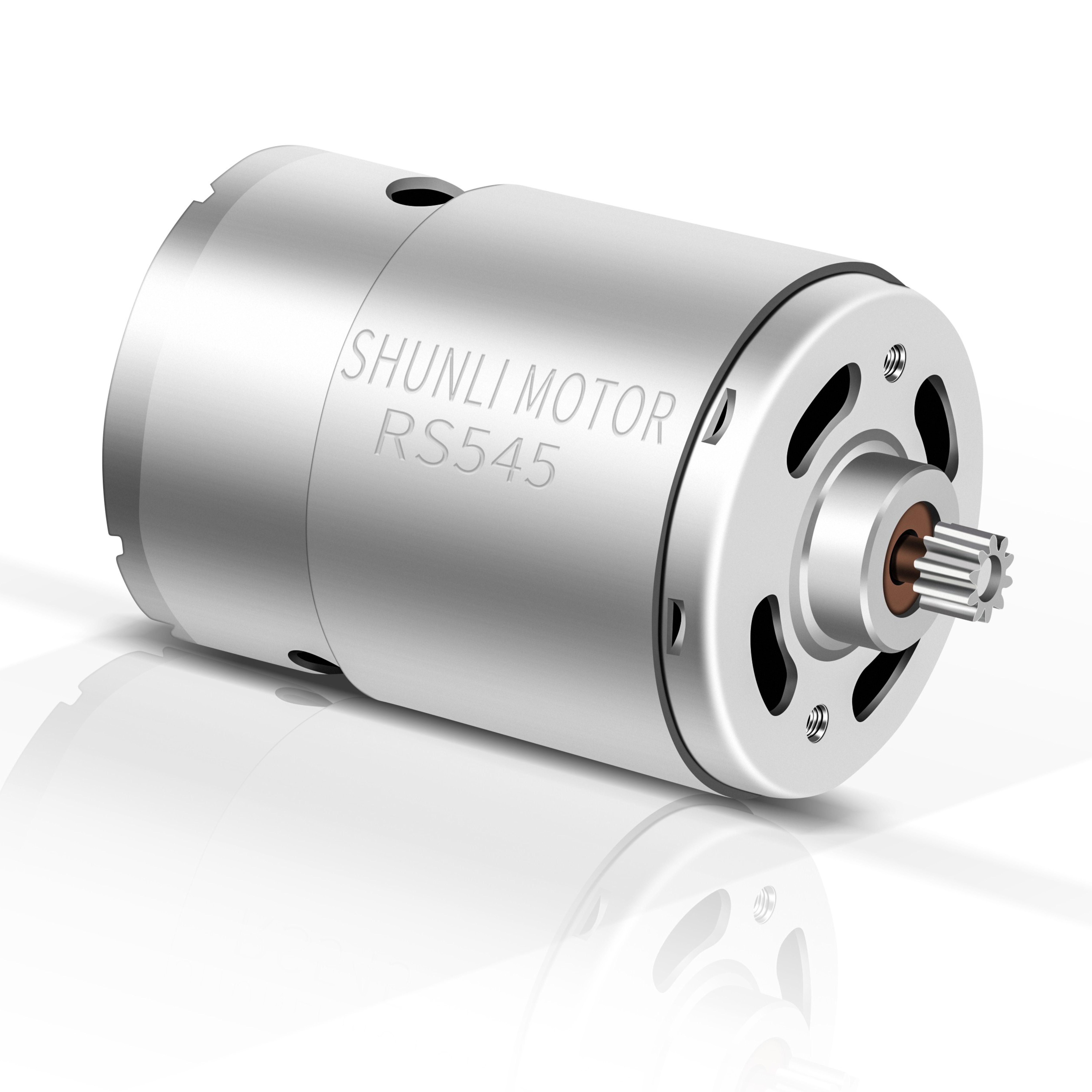

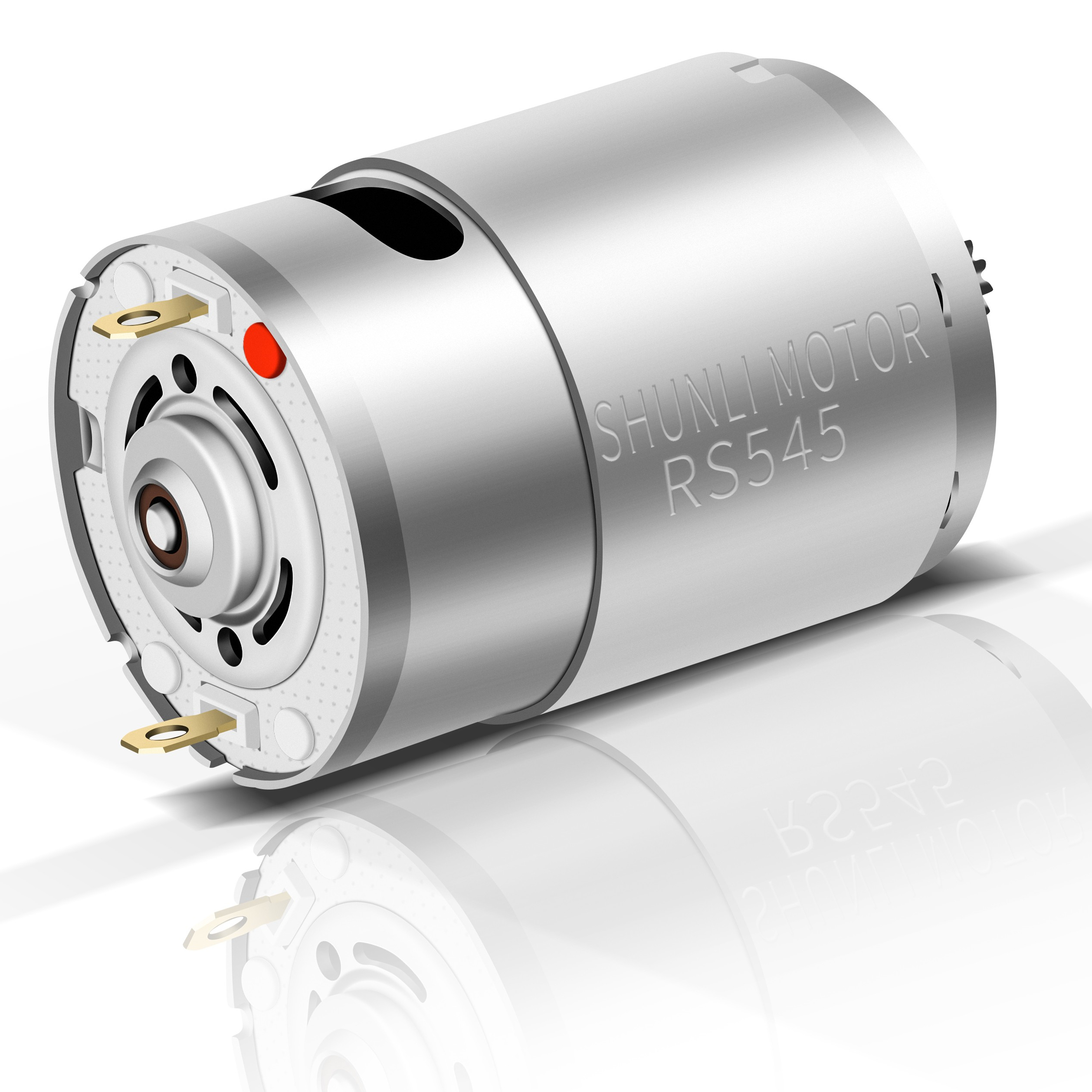

6v 12v 24v Micro Motor Electric Car Motor Micro Dc Motor

1 / 5

6v 12v 24v Micro Motor Electric Car Motor Micro Dc Motor

Send Inquiry

Product Description

Product Description

6v 12v 24v Micro Motor Electric Car Motor Micro Dc Motor

⚙️ Product Details & Specifications

✉️ Motor Customized Specification, Please contact us for further information.

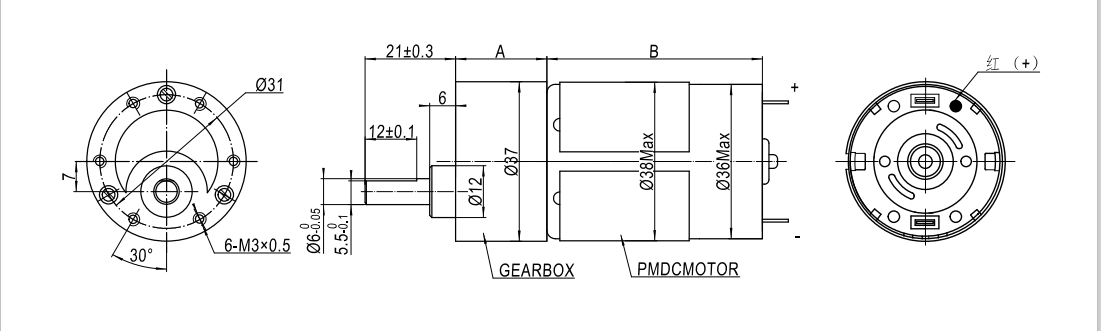

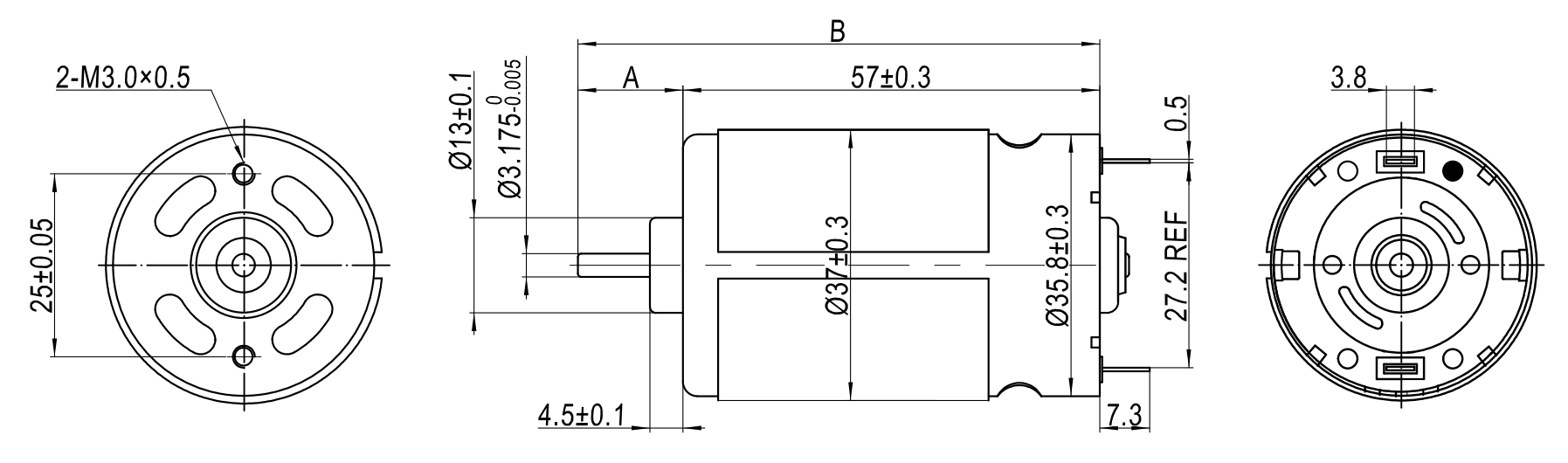

Reference Drawing

🔹 RS - 545 A

🔹 RS - 555 A

🔹 RS - 575 A

📏 The length of shaft can be customized based on your requirements.

Reference Datasheet

PMDC MOTOR Technical Data
Model		Rated Voltage(V)		No-Load		Rated				Stall
Model		Operating Range	Nominal	Speed (RPM)	Current (A)	Speed (RPM)	Current (A)	Torque (mN.m)	Power (W)	Current (A)	Torque (mN.m)
RS-550H	23128R	6.0~24.0	24VDC	4500	0.1	3932	0.39	25.7	10.6	4.8	204
RS-550H	6034	6.0~12.0	12VDC	16000	1.12	13613	4.96	25.6	40.36	48.89	281.4
RS-555H	3540	6.0~12.0	12VDC	7800	0.3	6708	1.84	21.9	15.35	11.31	156
RS-555H	23100	6.0~24.0	24VDC	7000	0.14	6004	0.77	19.2	12.09	4.2	124.5

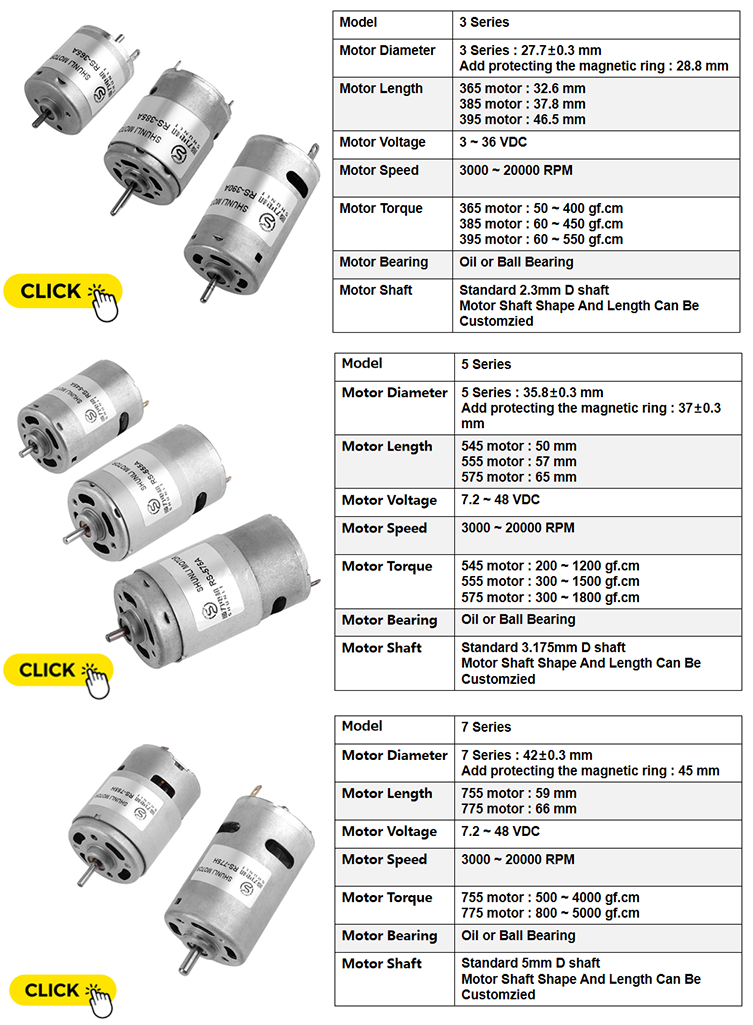

Recommend Product

Frequently Asked Questions (FAQ)

What voltage options are available for these micro DC motors?

We offer a versatile range of voltage options including 6V, 12V, and 24V DC to suit various industrial and consumer applications.

Can the motor shaft be customized?

Yes, the shaft length and specifications can be fully customized to meet your specific mechanical design requirements.

What are the typical applications for the RS-550 and RS-555 series?

These motors are widely used in electric cars, power tools, micro-appliances, and various automation equipment due to their high torque and efficiency.

Do you provide technical drawings for installation?

Yes, reference drawings for models like RS-545A, RS-555A, and RS-575A are provided to assist in your engineering and integration process.

How can I determine the best motor model for my project?

You can refer to our technical datasheet for speed (RPM), torque (mN.m), and current consumption (A) at different voltages to match your specific performance needs.

Are the performance parameters fixed?

While the datasheet provides standard reference values, performance parameters can often be adjusted during customization to better fit your load and speed requirements.
