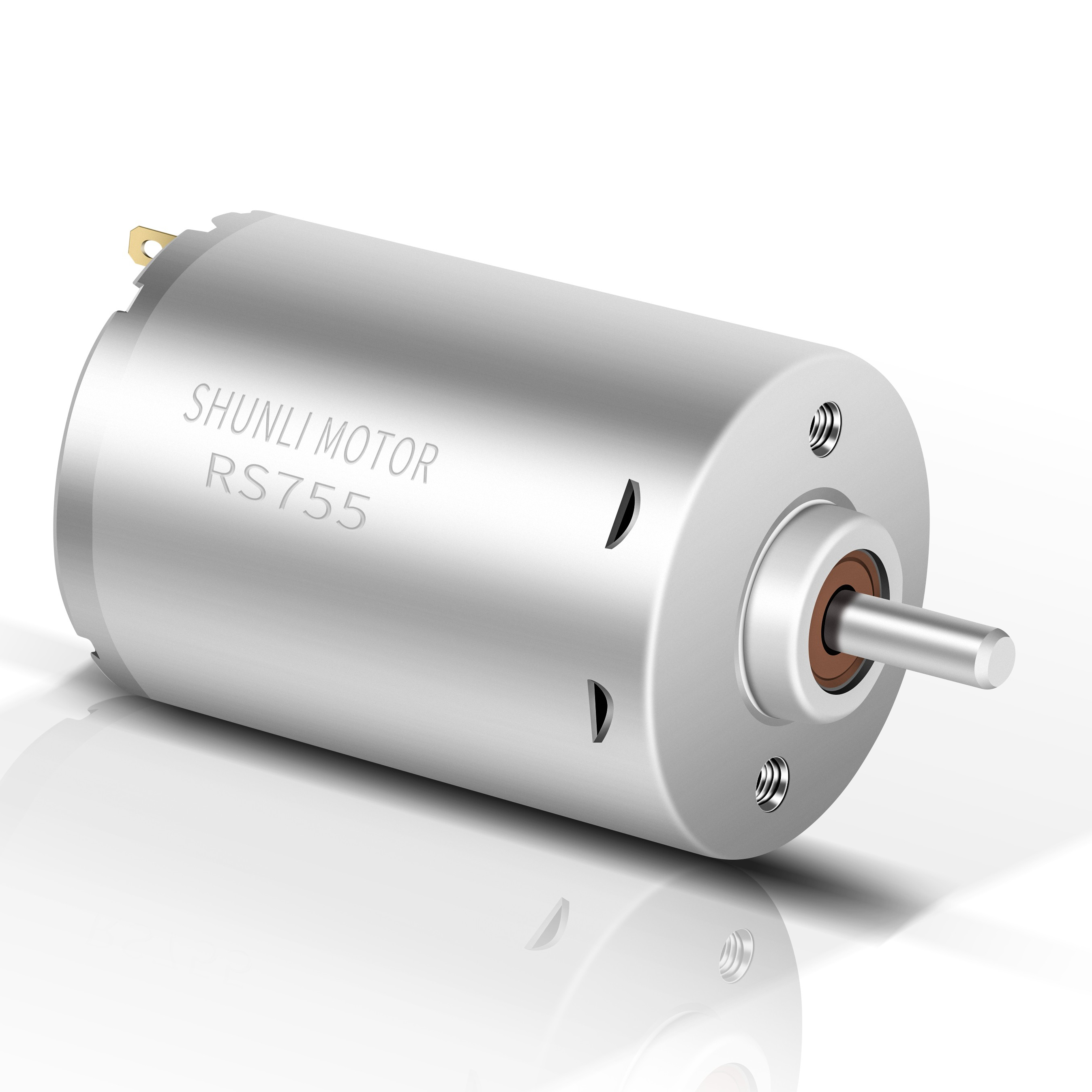

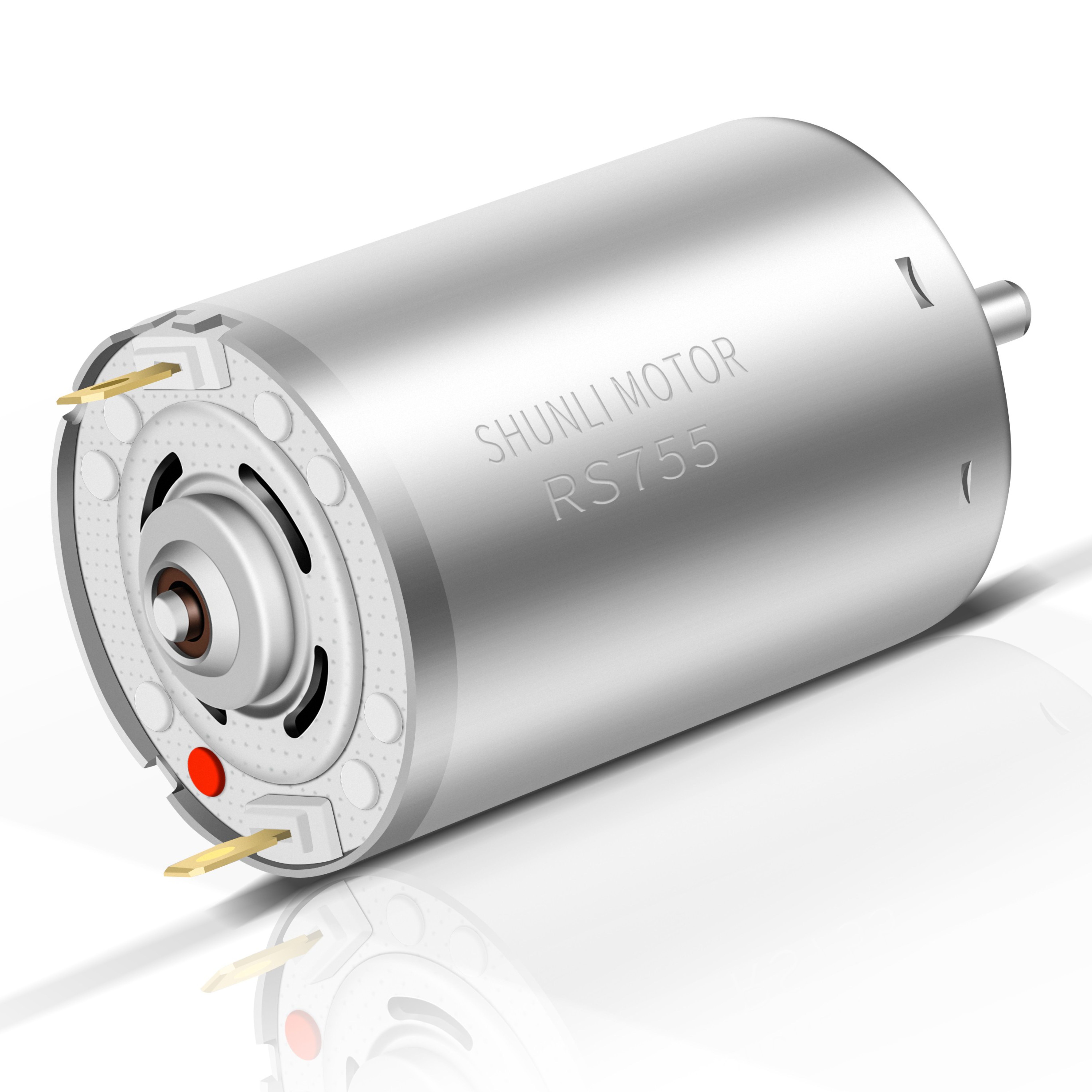

Powerfull 20000rpm rs 775 Mini High Speed 24 Volt Dc Motor

1 / 4

Powerfull 20000rpm rs 775 Mini High Speed 24 Volt Dc Motor

Send Inquiry

Product Description

Powerfull 20000rpm RS 775 Mini High Speed 24 Volt DC Motor

Product Details

Motor Customized Specification Available Upon Request

Reference Drawing

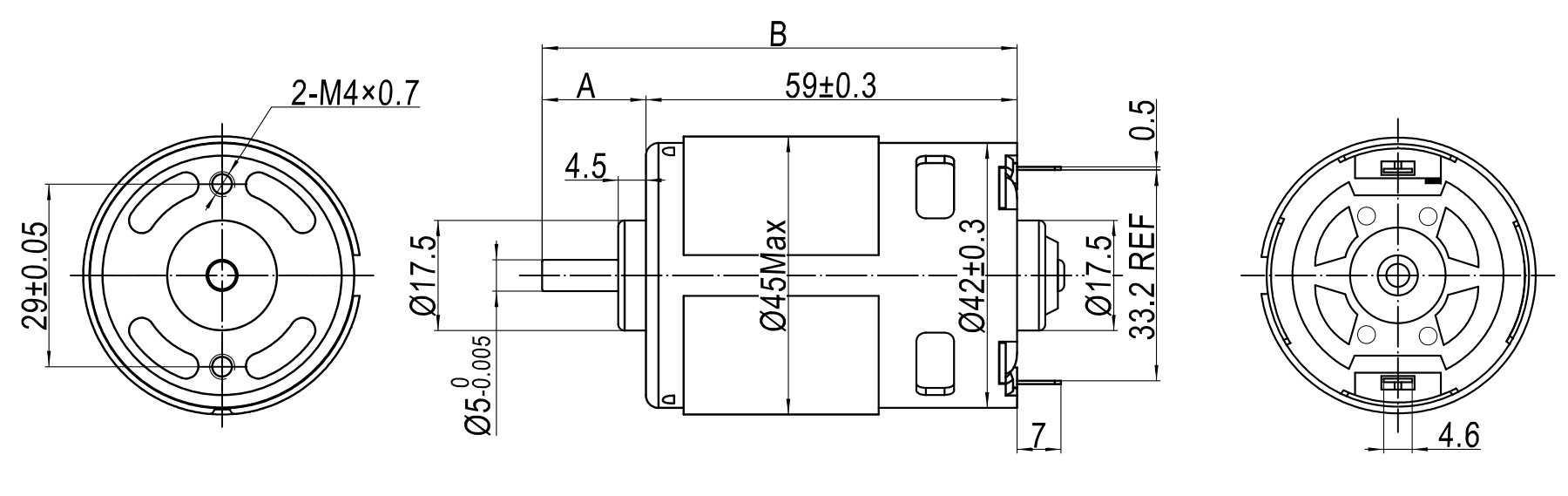

Model: RS-755 H

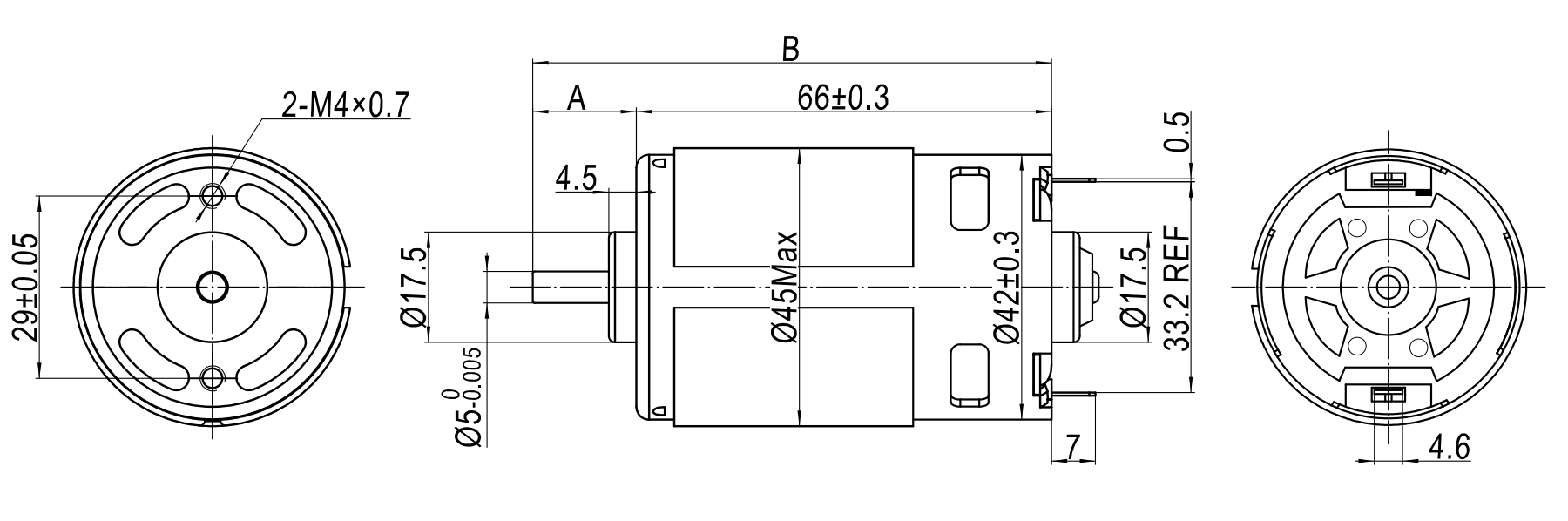

Model: RS-775 H

The length of shaft can be customized.

PMDC MOTOR Technical Data

Model		Rated Voltage (V)		No-Load		Rated				Stall
Model		Operating Range	Nominal	Speed (RPM)	Current (A)	Speed (RPM)	Current (A)	Torque (mN.m)	Power (W)	Current (A)	Torque (mN.m)
RS-770H	8523R	6.0~12.0	12 VDC	15000	2.2	13177	15.91	81 / 826.2	111.8	115	666.9 / 6802
RS-775H	25110R	6.0~24.0	24 VDC	3478	0.15	2925	0.75	44.4 / 452.9	13.35	4.07	245.7 / 2506

Application Areas

Certifications & Quality Assurance

Recommend Products

Frequently Asked Questions

Are you a trading company or a manufacturer?

We are a factory specializing in micro DC motors and DC gear motors with over 14 years of experience.

What are the payment terms for new customers?

We support online assurance orders, allowing payment via Master Card, Visa, PayPal, or TT.

Can you customize a motor if I can't find a suitable one on the website?

Yes, we provide full customization services to meet specific customer requirements.

Do you hold official certifications for your motors?

Yes, our motors are certified with CE, FCC, ISO, and other relevant standards as required.

How do you ensure Quality Control?

We employ professional inspection staff at every stage of production. Finished motors undergo rigorous testing using Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, and Noise Testers.

Is technical support available for motor selection?

Yes, our engineering team can assist in technical evaluations and provide reference drawings to ensure the motor fits your application perfectly.

Product Detail

Powerfull 20000rpm rs 775 Mini High Speed 24 Volt Dc Motor

Product Description

Powerfull 20000rpm RS 775 Mini High Speed 24 Volt DC Motor
