Customized 6v/12v/24v 22mm Planetary Gearbox Plus Permanent Magnet DC Motor China Supplier
Customized 6v/12v/24v 22mm Planetary Gearbox Plus Permanent Magnet DC Motor China Supplier
Customized 6v/12v/24v 22mm Planetary Gearbox Plus Permanent Magnet DC Motor China Supplier
Customized 6v/12v/24v 22mm Planetary Gearbox Plus Permanent Magnet DC Motor China Supplier
Customized 6v/12v/24v 22mm Planetary Gearbox Plus Permanent Magnet DC Motor China Supplier
1 / 5
Customized 6v/12v/24v 22mm Planetary Gearbox Plus Permanent Magnet DC Motor China Supplier
Customized 6v/12v/24v 22mm Planetary Gearbox Plus Permanent Magnet DC Motor China Supplier
Customized 6v/12v/24v 22mm Planetary Gearbox Plus Permanent Magnet DC Motor China Supplier
Customized 6v/12v/24v 22mm Planetary Gearbox Plus Permanent Magnet DC Motor China Supplier
Customized 6v/12v/24v 22mm Planetary Gearbox Plus Permanent Magnet DC Motor China Supplier

Customized 6v/12v/24v 22mm Planetary Gearbox Plus Permanent Magnet DC Motor China Supplier

Send Inquiry

Product Description

Product Display
Technical Specifications
Product Model GMP22M130/180
Gearbox Length 13.3~27.3MM
Speed 30RPM-138RPM
Voltage 6V/5V
Torque 0.095 N.m/0.32 N.m
Support Customization Transmission Dimensions And Motor Parameters Can Be Customized

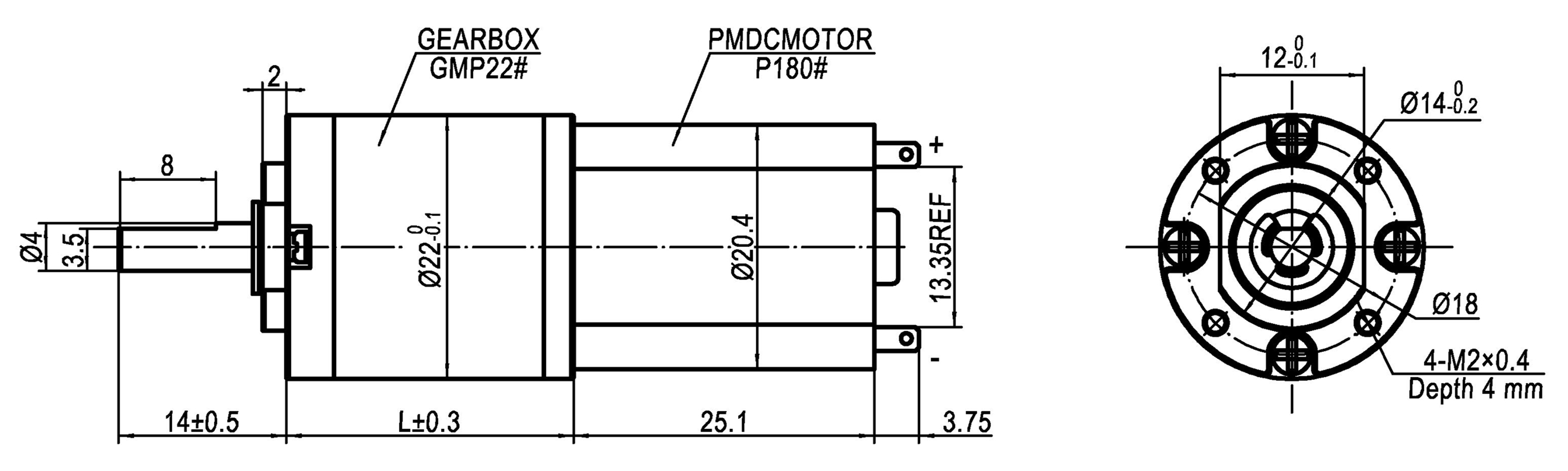

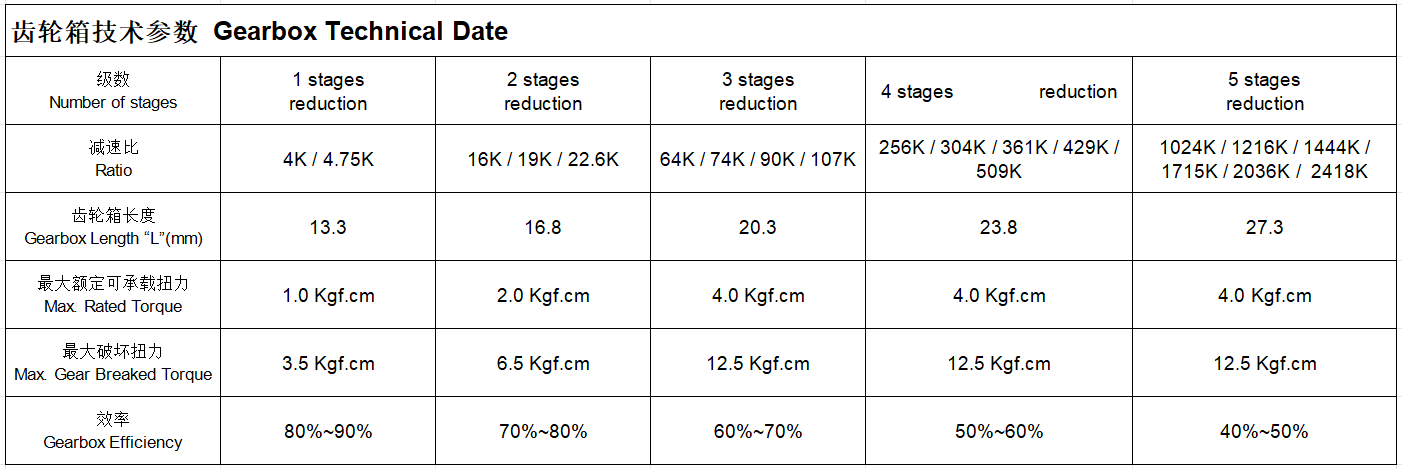

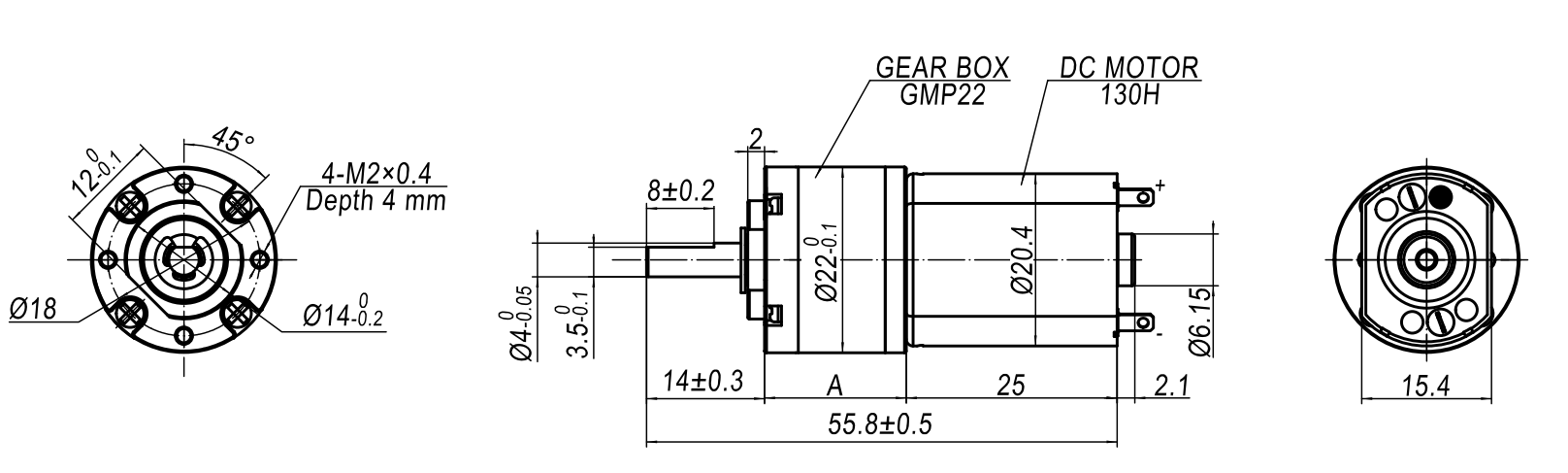

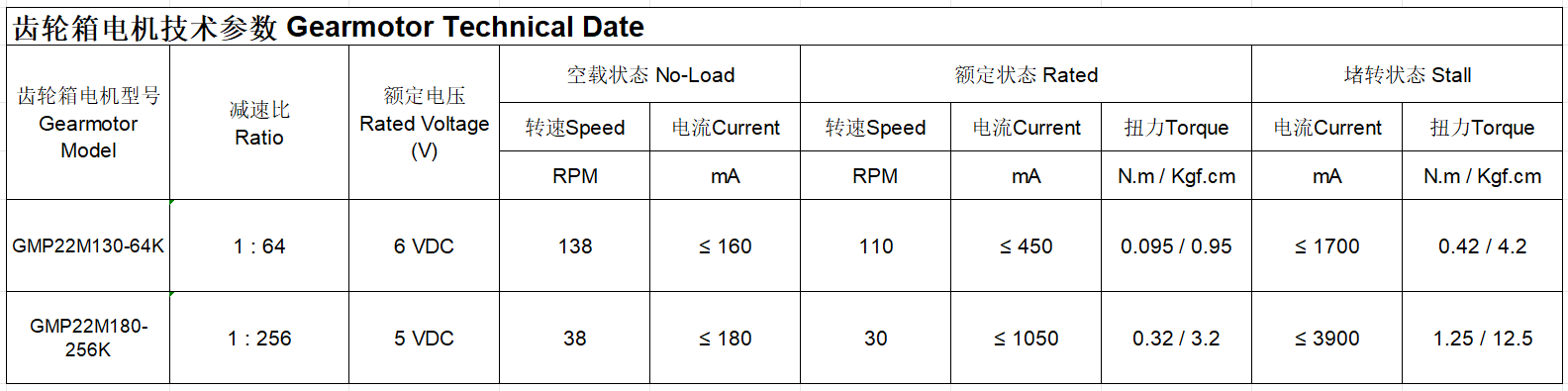

Technical Drawing Performance Chart Motor Dimension
Details 1
Details 2
Details 3
Details 4
Details 5
Details 6
Frequently Asked Questions
? Are you a trading company or a manufacturer?
We are a factory specializing in micro DC motors and DC gear motors for more than 14 years.
? What is the payment term for new customers?
We provide flexible payment options including online assurance orders (Master Card, Visa, etc.), PayPal, or TT for our new customers.
? Can you customize a motor if I cannot find a suitable one on the website?
Yes, we can customize a suitable motor according to our customer's specific requirements for transmission dimensions and motor parameters.
? Do you have certificates for your motors?
Yes, we have CE, FCC, ISO, and other relevant certificates. We can also apply for other specific certificates if required.
? How is your Quality Control managed?
We have professional checking staff on every production line process. Finished motors undergo comprehensive testing using equipment like Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, and Noise Testers.
? What testing equipment is used for quality assurance?
Our quality control involves 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Test Machines, and Noise Testers to ensure top product performance.
