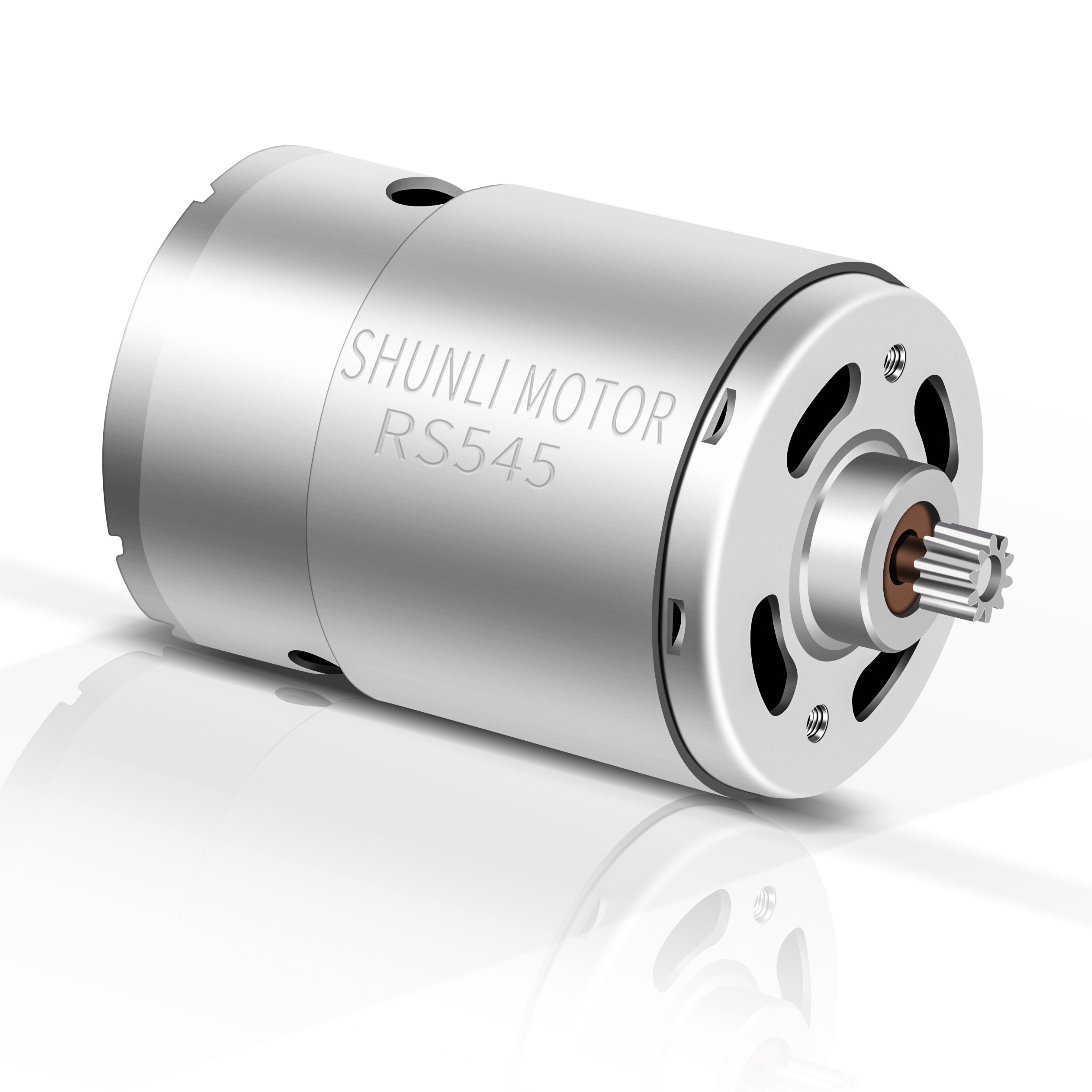

6V 12V 18V DC Motor RS 550 545 555 High RPM Speed DC Motor 15000RPM

1 / 5

6V 12V 18V DC Motor RS 550 545 555 High RPM Speed DC Motor 15000RPM

Send Inquiry

Product Description

📋 Application

6V 12V 18V DC Motor RS 550 545 555 High RPM Speed DC Motor 30000RPM

Product Details

⚙️ Motor Customized Specification available.

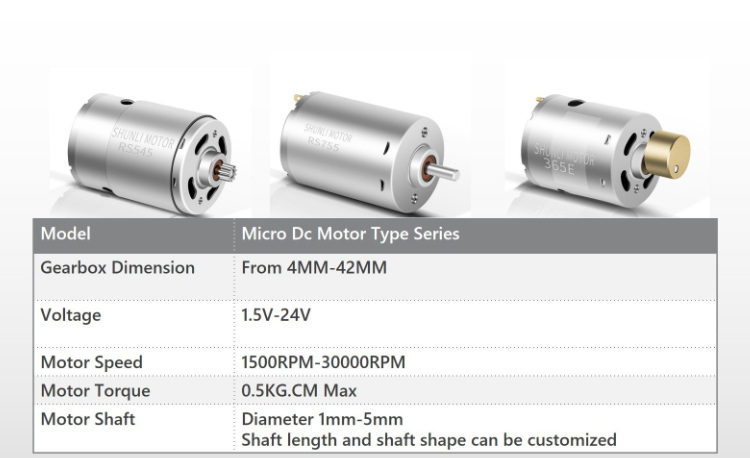

PMDC MOTOR Technical Data
Model		Rated Voltage(V)		No-Load		Rated
		Operating Range	Nominal	Speed	Current	Speed	Current	Torque	Power
		Operating Range	Nominal	RPM	A	RPM	A	mN.m / gf.cm	W
RS-550H	23128R	6.0~24.0	24VDC	4500	0.1	3932	0.39	25.7/262	10.6
RS-550H	6034	6.0~12.0	12VDC	16000	1.12	13613	4.96	25.6/261.3	40.36
RS-555H	3540	6.0~12.0	12VDC	7800	0.3	6708	1.84	21.9/223.4	15.35
RS-555H	23100	6.0~24.0	24VDC	7000	0.14	6004	0.77	19.2/195.8	12.09

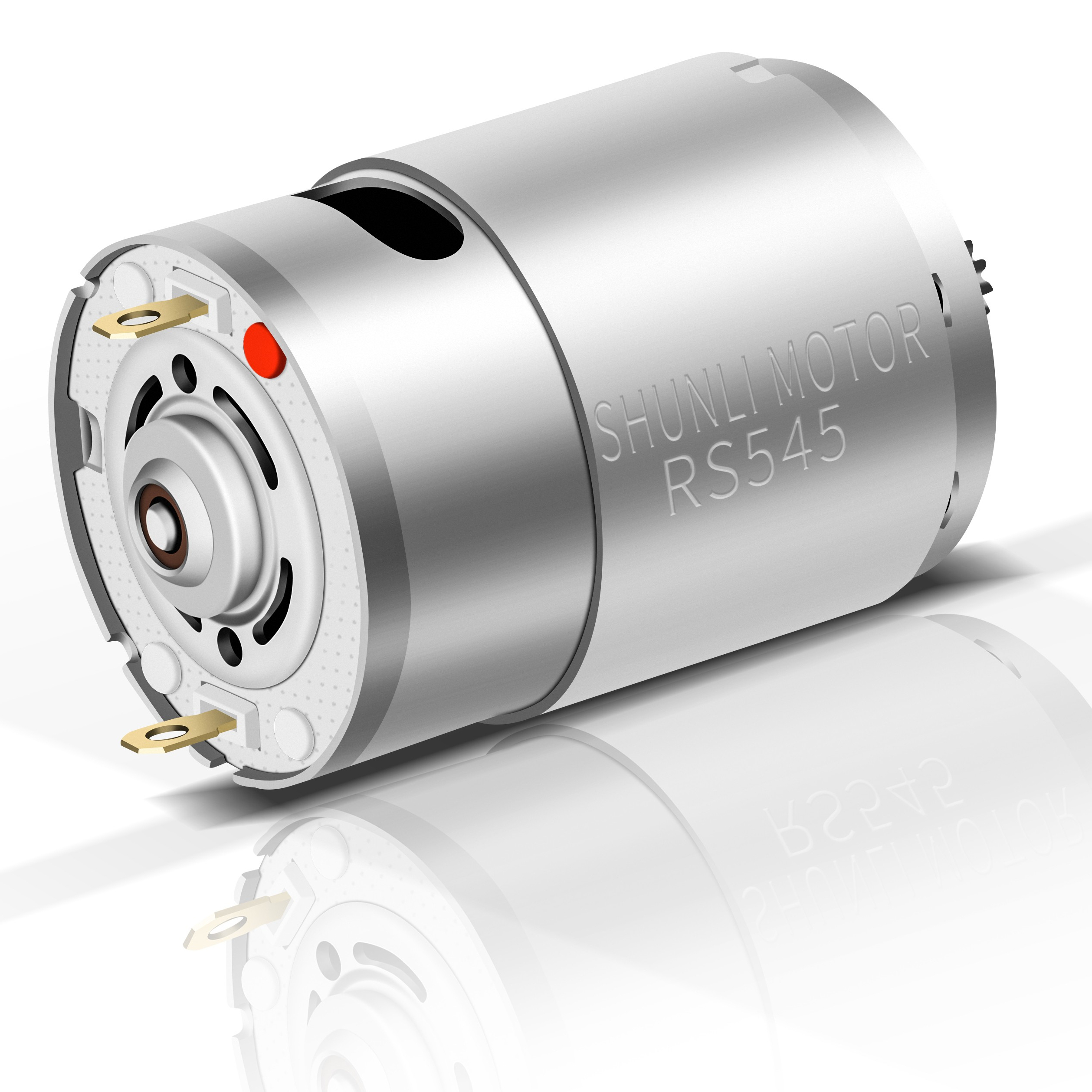

RS - 545 A Performance Data

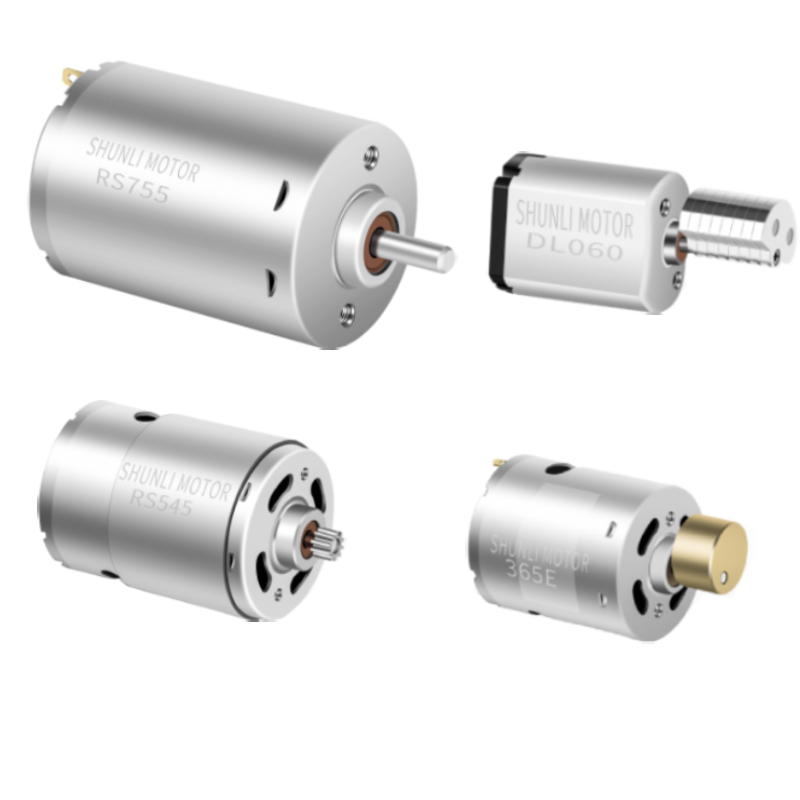

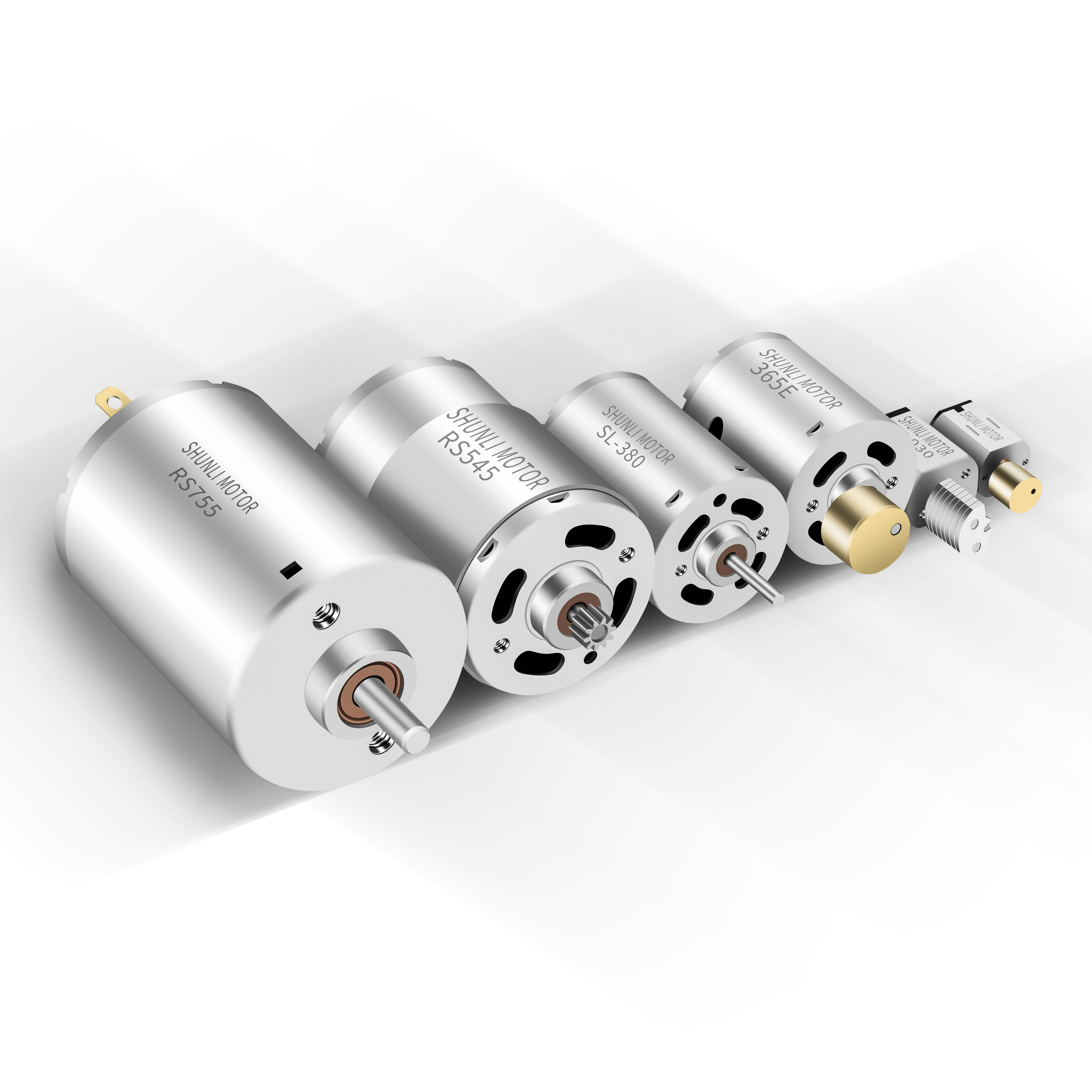

🖼️ Product Gallery

Frequently Asked Questions

What is the voltage range for the RS-550 series DC motors?

The RS-550 series typically operates within a range of 6V to 24V DC, depending on the specific model and winding configuration.

Can the RPM be customized for specific applications?

Yes, technical specifications such as speed (RPM), torque, and power can be customized by adjusting the motor windings to meet your specific requirements.

What are the typical applications for these high RPM motors?

These motors are widely used in power tools, automotive electronic equipment, vacuum cleaners, and industrial automation where high speed and reliable torque are needed.

How do I choose between the RS-550 and RS-555 models?

The RS-555 is generally longer than the RS-550, offering different torque characteristics. Please refer to the technical data table for specific speed and current ratings at your required voltage.

Do these motors support bidirectional rotation?

Yes, these are Permanent Magnet DC (PMDC) motors, meaning the direction of rotation can be changed by reversing the polarity of the input voltage.

What is the maximum speed these motors can reach?

Depending on the model and load conditions, these motors can reach speeds up to 15,000 to 30,000 RPM at their rated voltage.

Product Detail

6V 12V 18V DC Motor RS 550 545 555 High RPM Speed DC Motor 15000RPM

Product Description

6V 12V 18V DC Motor RS 550 545 555 High RPM Speed DC Motor 30000RPM
