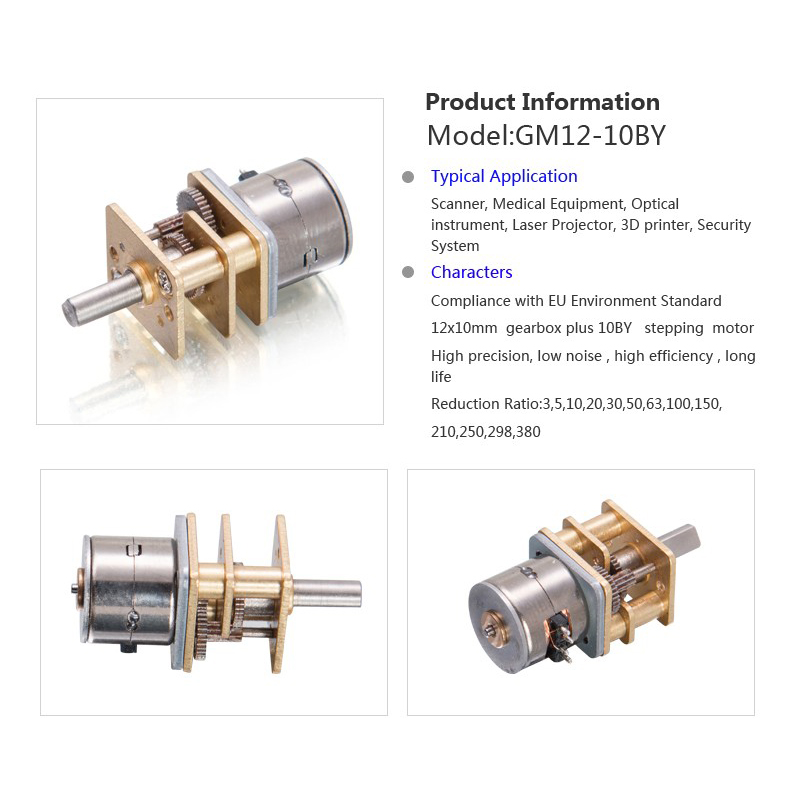

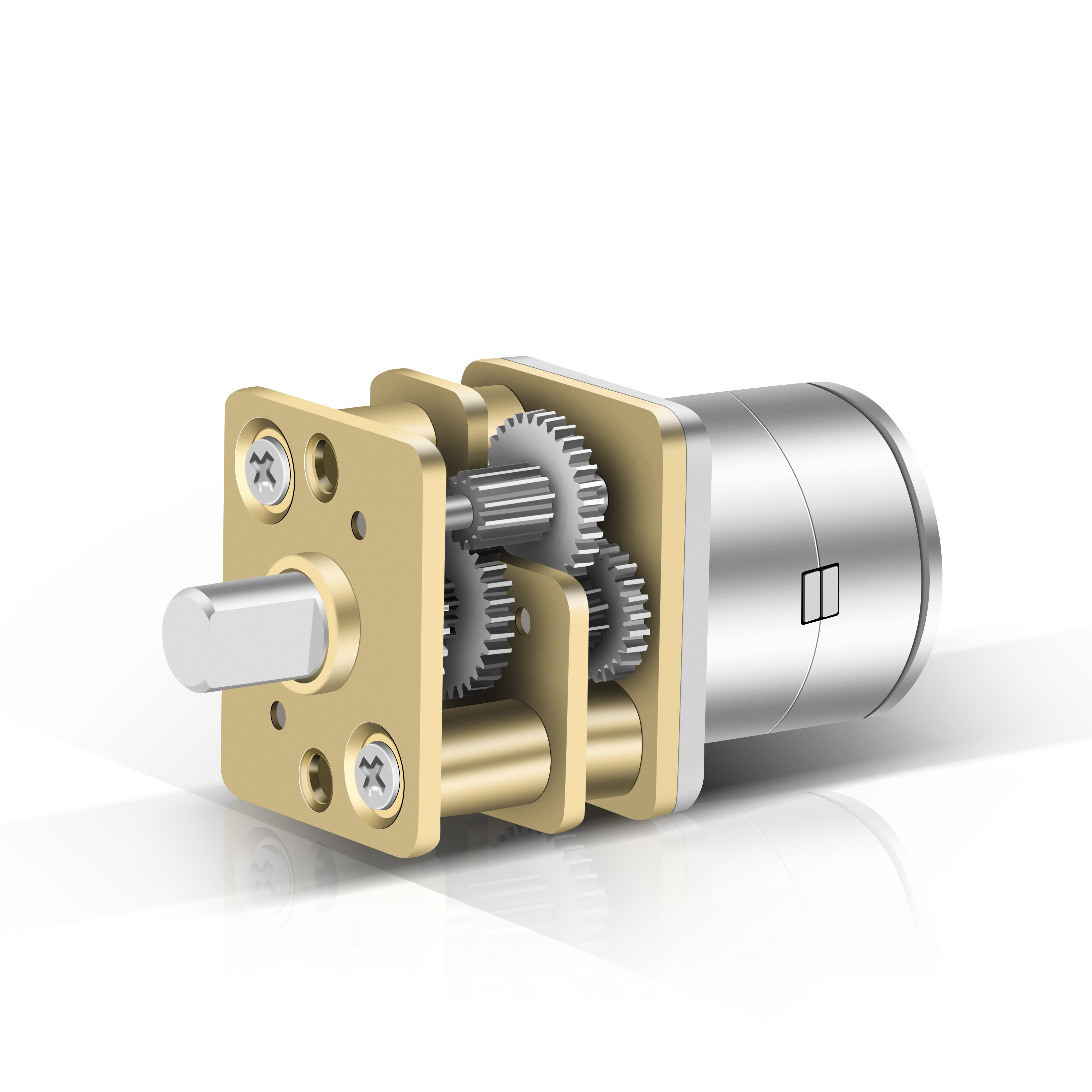

Customized 12mm micro DC gear motor - Non captive stepper motor miniature 5V stepper motor for medical equipment

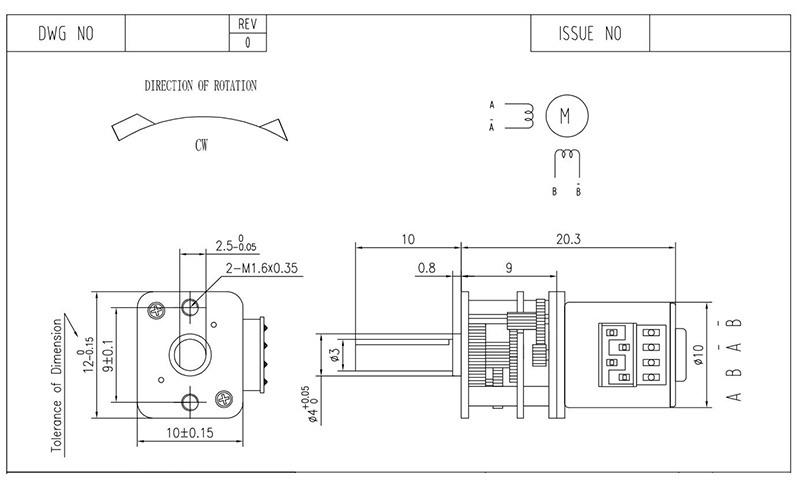

Model: GM12-10BY Reference Drawing
| Number of stages | 1 | 2 | 3 | 4 | 5 |
|---|---|---|---|---|---|
| Ratio | 4K / 4.75K | 16K / 19K / 22.6K | 64K / 74K / 90K / 107K | 256K / 304K / 361K / 429K / 509K | 1024K / 1216K / 1444K / 1715K / 2036K / 2418K |
| Gearbox Length “L”(mm) | 13.3 | 16.8 | 20.3 | 23.8 | 27.3 |
| Max. Rated Torque | 1.0 Kgf.cm | 2.0 Kgf.cm | 4.0 Kgf.cm | 4.0 Kgf.cm | 4.0 Kgf.cm |
| Max. Gear Breaked Torque | 3.5 Kgf.cm | 6.5 Kgf.cm | 12.5 Kgf.cm | 12.5 Kgf.cm | 12.5 Kgf.cm |
| Gearbox Efficiency | 80%~90% | 70%~80% | 60%~70% | 50%~60% | 40%~50% |
| Model | Ratio | Voltage (V) | No-Load | Rated | Stall | ||||
|---|---|---|---|---|---|---|---|---|---|
| Speed(RPM) | Current(mA) | Speed(RPM) | Current(mA) | Torque(Kgf.cm) | Current(mA) | Torque(Kgf.cm) | |||
| GMP22M130-64K | 1 : 64 | 6 VDC | 138 | ≤ 160 | 110 | ≤ 450 | 0.95 | ≤ 1700 | 4.2 |
| GMP22M180-256K | 1 : 256 | 5 VDC | 38 | ≤ 180 | 30 | ≤ 1050 | 3.2 | ≤ 3900 | 12.5 |
Our facility is a high-tech enterprise integrating the research, development, production and sales of various kinds of micro DC motor, geared motor, planetary geared motor, shade pole geared motor and special gearbox motor. Products are widely used in automobiles, communications equipment, smart home, medical equipment, security, household appliances, and other high-end transmission structures, exported to more than 50 countries and regions.
