Product Description

Product Presentation

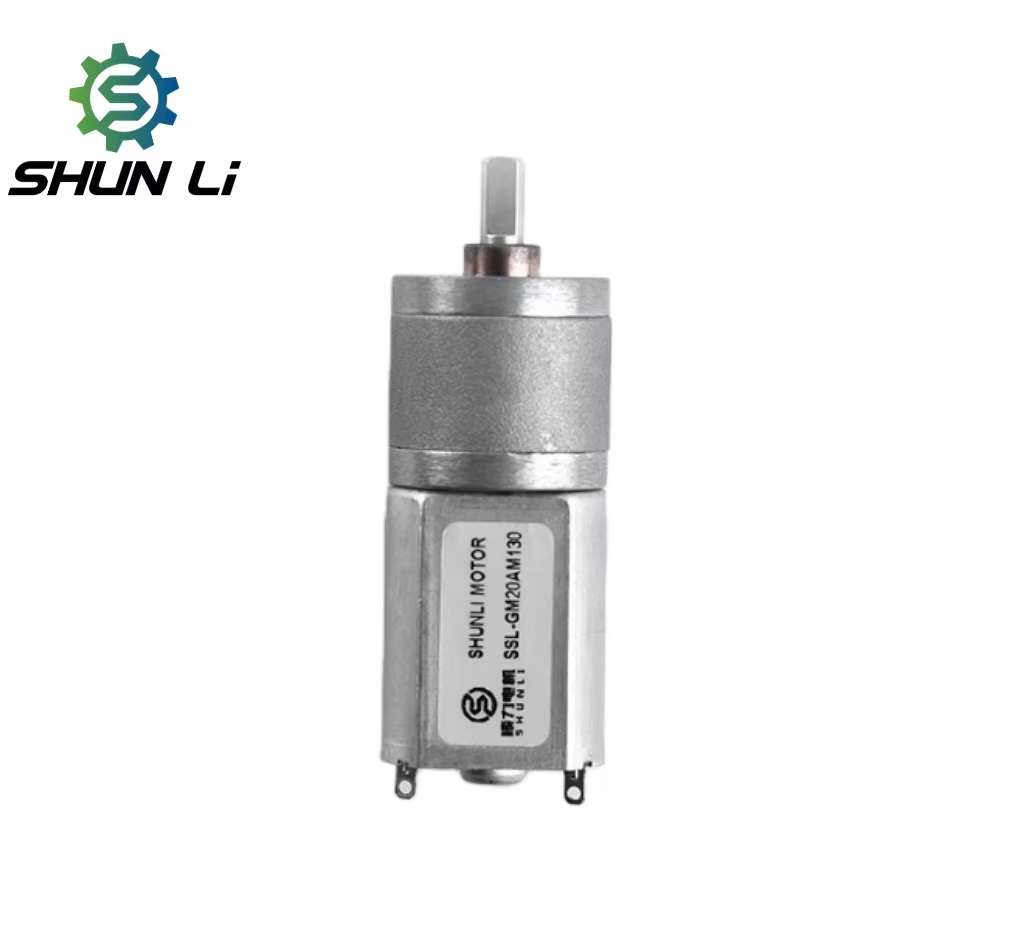

Motor Details
Technical Specifications
Product Model GM20AM130/180
Gearbox Length 14.5~20.5mm
Speed 32RPM-88RPM
Voltage 6V/5V
Torque 0.1N.m/0.32N.m
Customization Dimensions and motor parameters can be customized

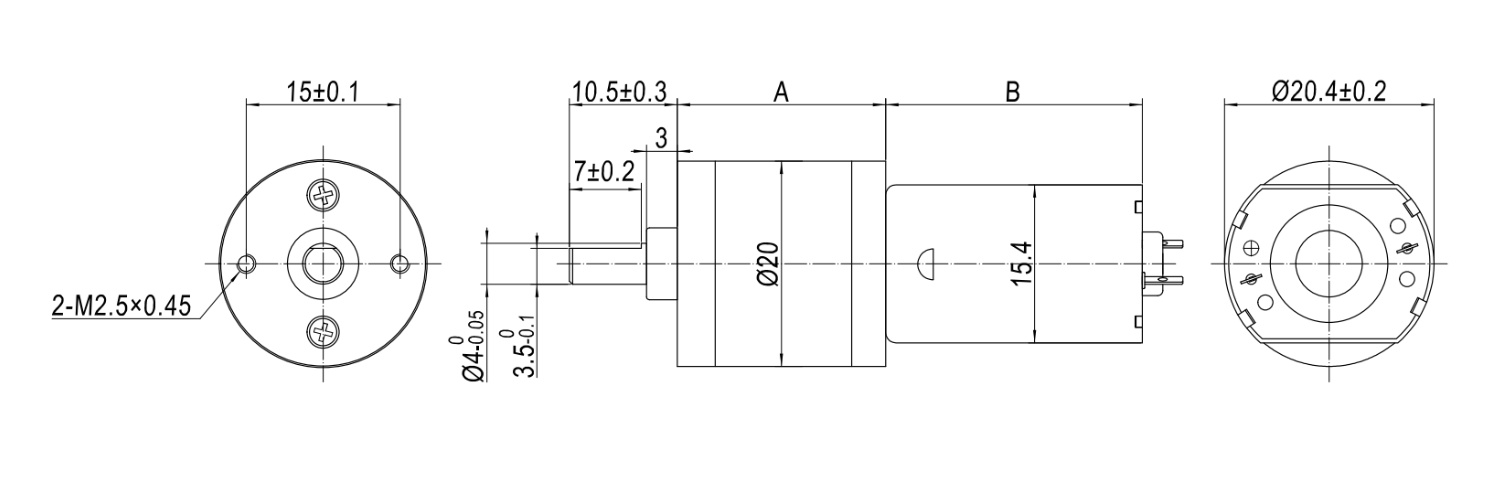

Technical Drawing 1

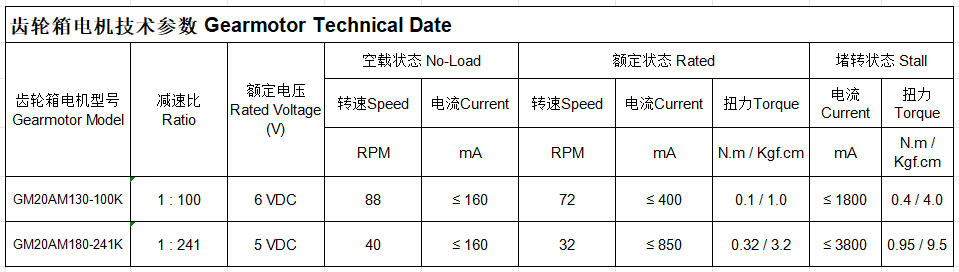

Performance Chart
Product Gallery
Product View 1
Product View 2
Product View 3
Product View 4
Product View 5
Product View 6

Frequently Asked Questions

1. Are you a trading company or a manufacturer?
We are a professional factory specializing in micro DC motors and DC gear motors with over 14 years of industry experience.
2. What are the payment terms for new customers?
We offer flexible payment options including Online Assurance Orders (Master Card, Visa), PayPal, and TT (Telegraphic Transfer).
3. Can you provide customized motor solutions?
Yes, we specialize in customization. We can adjust the motor parameters and transmission dimensions to meet your specific requirements.
4. What certifications do your products hold?
Our motors are certified with CE, FCC, and ISO. If you require additional certifications for your specific market, we can apply for them.
5. How do you ensure product quality control?
We maintain a rigorous quality control process with professional staff on every production line. Our testing facility includes Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, and Noise Testers.
6. What is the typical lead time for customized orders?
Lead times depend on the level of customization required; however, we strive to maintain efficient production schedules to ensure timely delivery for all our global clients.
