Strata Motor
Strata Motor

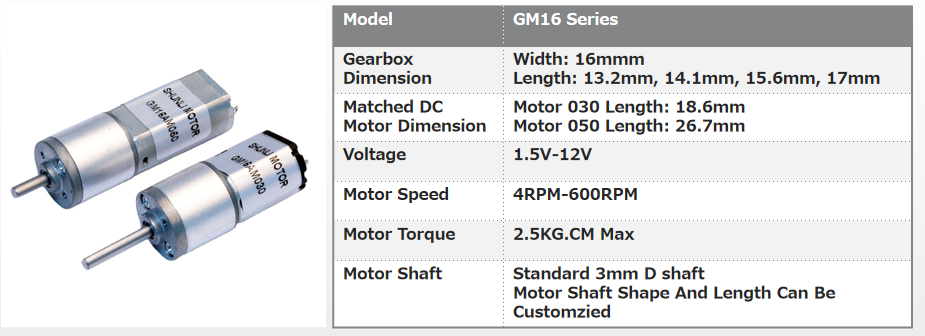

Product Details
Motor Customized Specification Available

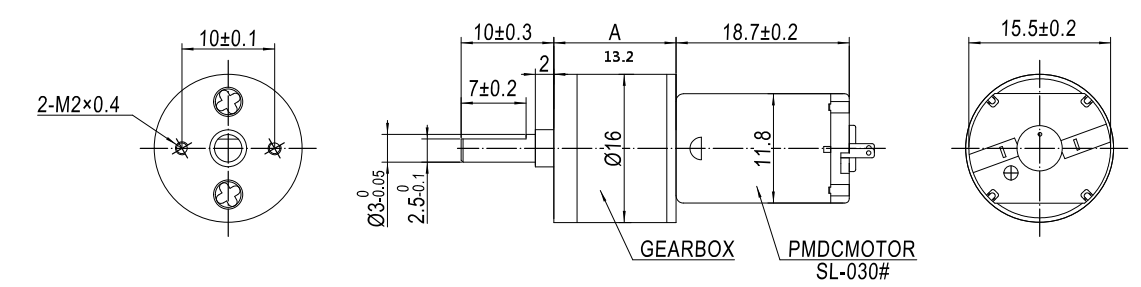

Model: GM16AM030

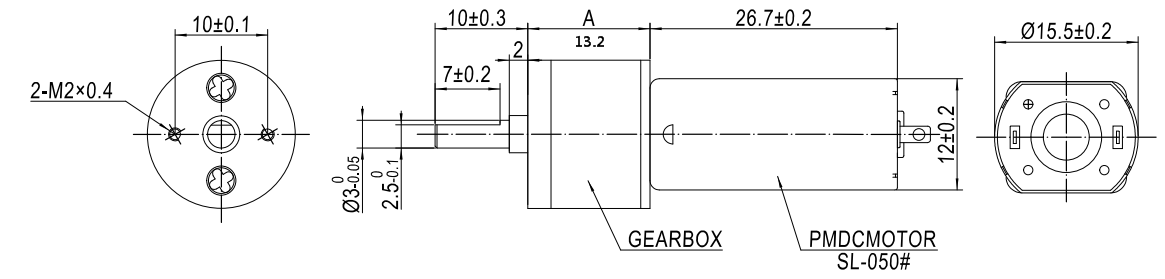

Model: GM16AM050
| Gearmotor Model | Ratio | Rated Voltage (V) | No-Load | Rated | Stall | ||||
|---|---|---|---|---|---|---|---|---|---|
| Speed | Current | Speed | Current | Torque | Current | Torque | |||
| RPM | mA | RPM | mA | N.m / Kgf.cm | mA | N.m / Kgf.cm | |||
| GMP16M030-100K | 1 : 100 | 3.7 VDC | 100 | ≤ 80 | 72 | ≤ 300 | 0.03/0.3 | ≤ 700 | 0.11/1.1 |
| GMP16M050-300K | 1 : 300 | 3.7 VDC | 50 | ≤ 200 | 40 | ≤ 650 | 0.1/1.0 | ≤ 3000 | 0.55/5.5 |
| Number of stages | 4 | 5 | 6 | 7 |
|---|---|---|---|---|
| Ratio | 25K - 42K | 70K - 119K | 143K - 285K | 300K - 800K |
| Gearbox Length "A"(mm) | 13.2 | 14.1 | 15.6 | 17.0 |
| Max. Rated Torque | 0.6 Kgf.cm | 1.0 Kgf.cm | 1.5 Kgf.cm | 2.0 Kgf.cm |
| Efficiency | 60%~70% | 55%~60% | 50%~55% | 45%~50% |
We are a factory specialized in producing motors for more than 14 years. Our professional R&D team and mature management ensure a high-quality experience.
In order to confirm quality, every step from raw material to shipment is carefully checked. Quality is the basis of our development.
Gold seller with high credibility and professional standing.
100% on-time delivery rate to ensure products arrive timely.
Standard samples within 2 weeks; Customized samples within 3 weeks.
Timely reply: your message will be answered within 2 hours.
Looking forward to your feedback!
