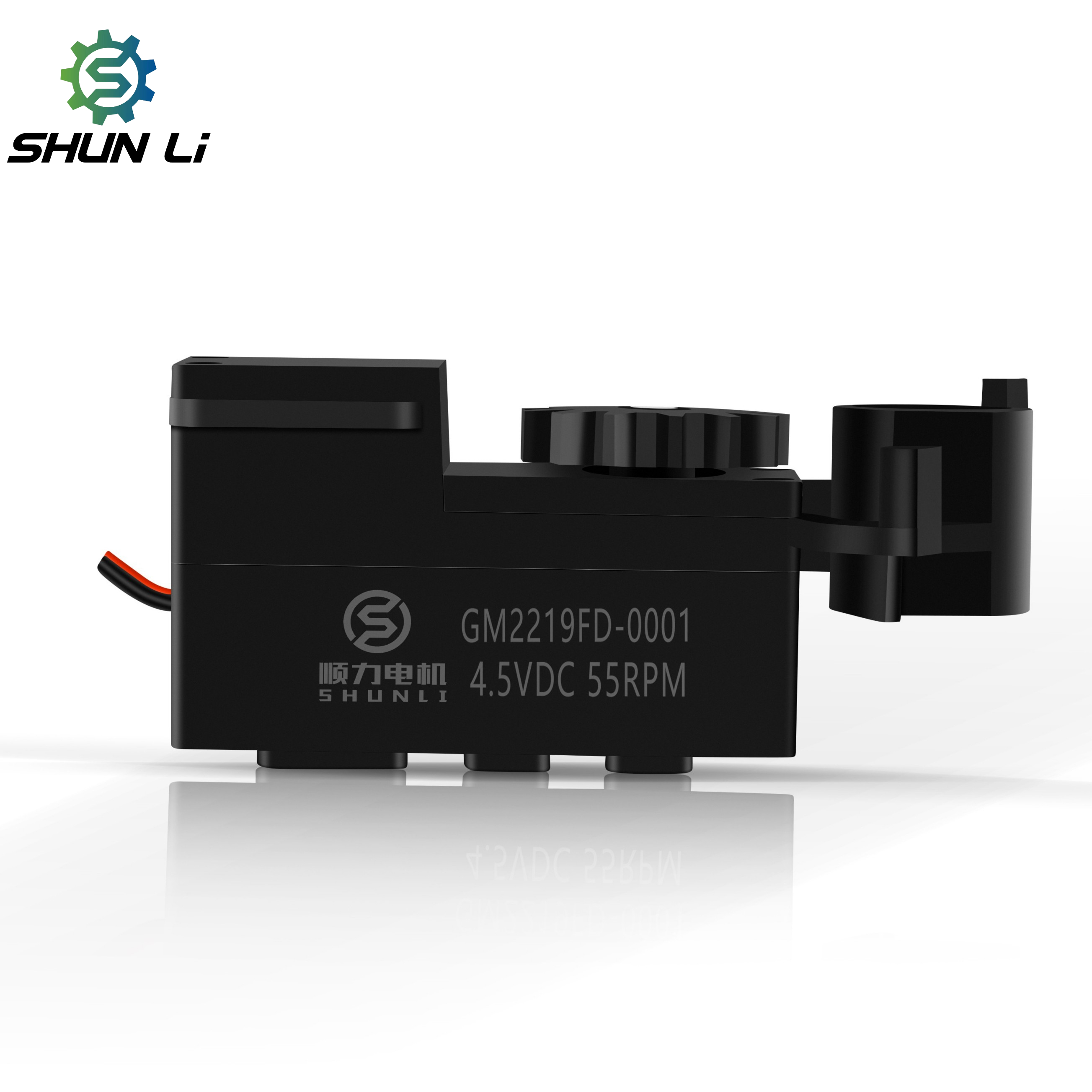

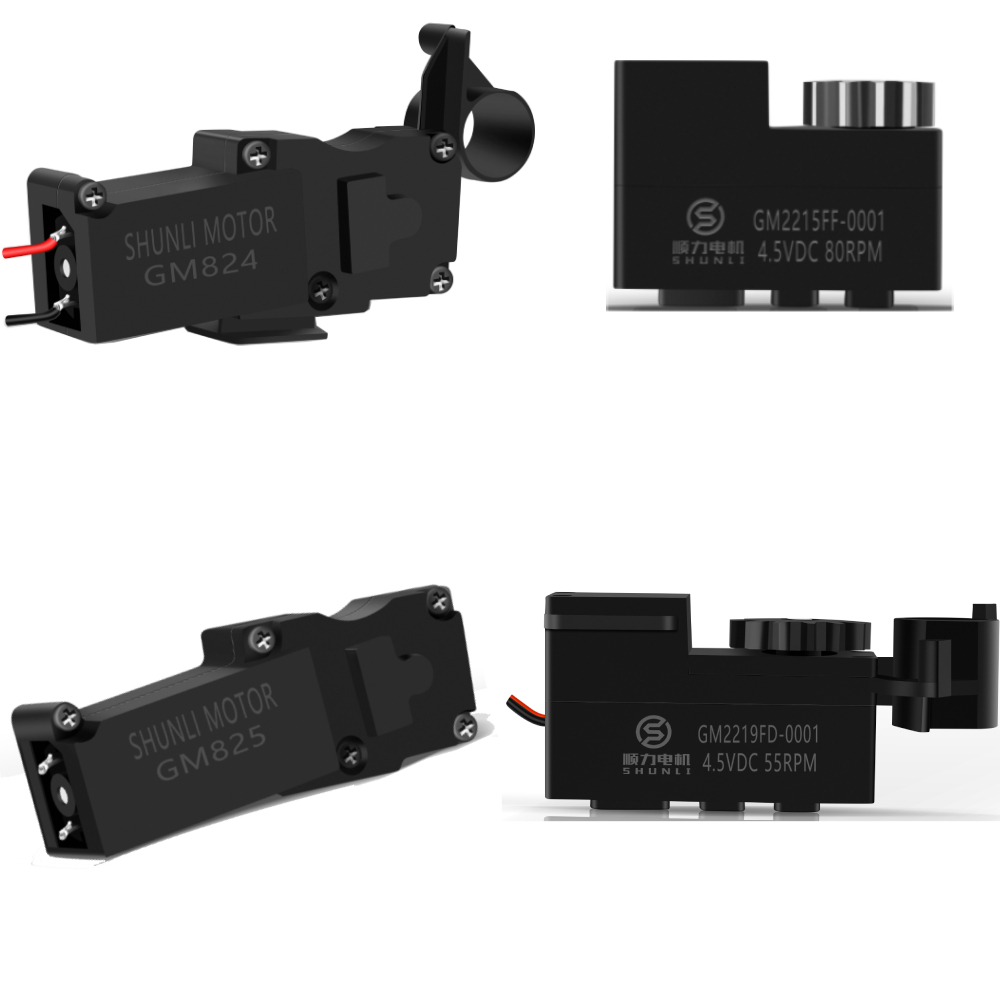

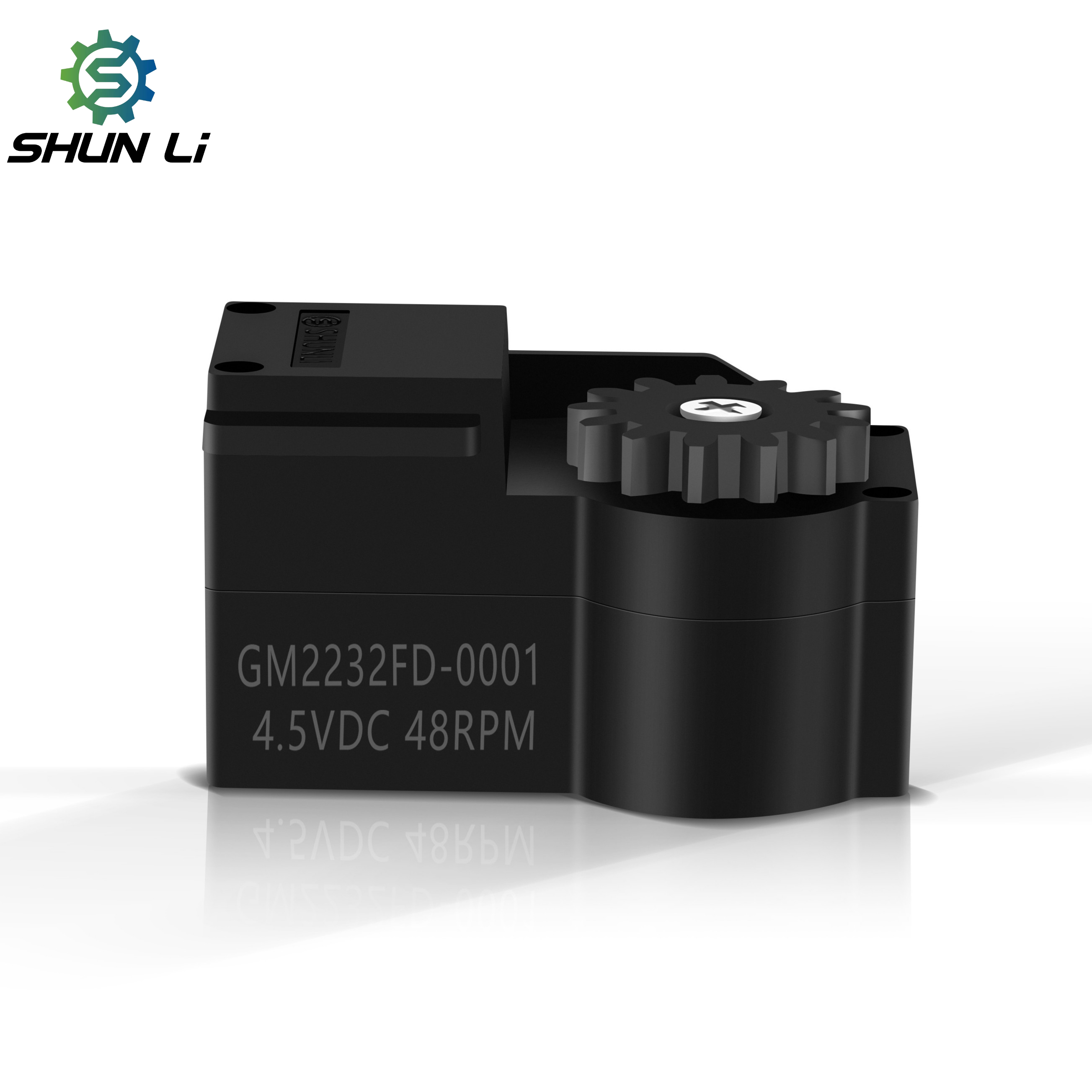

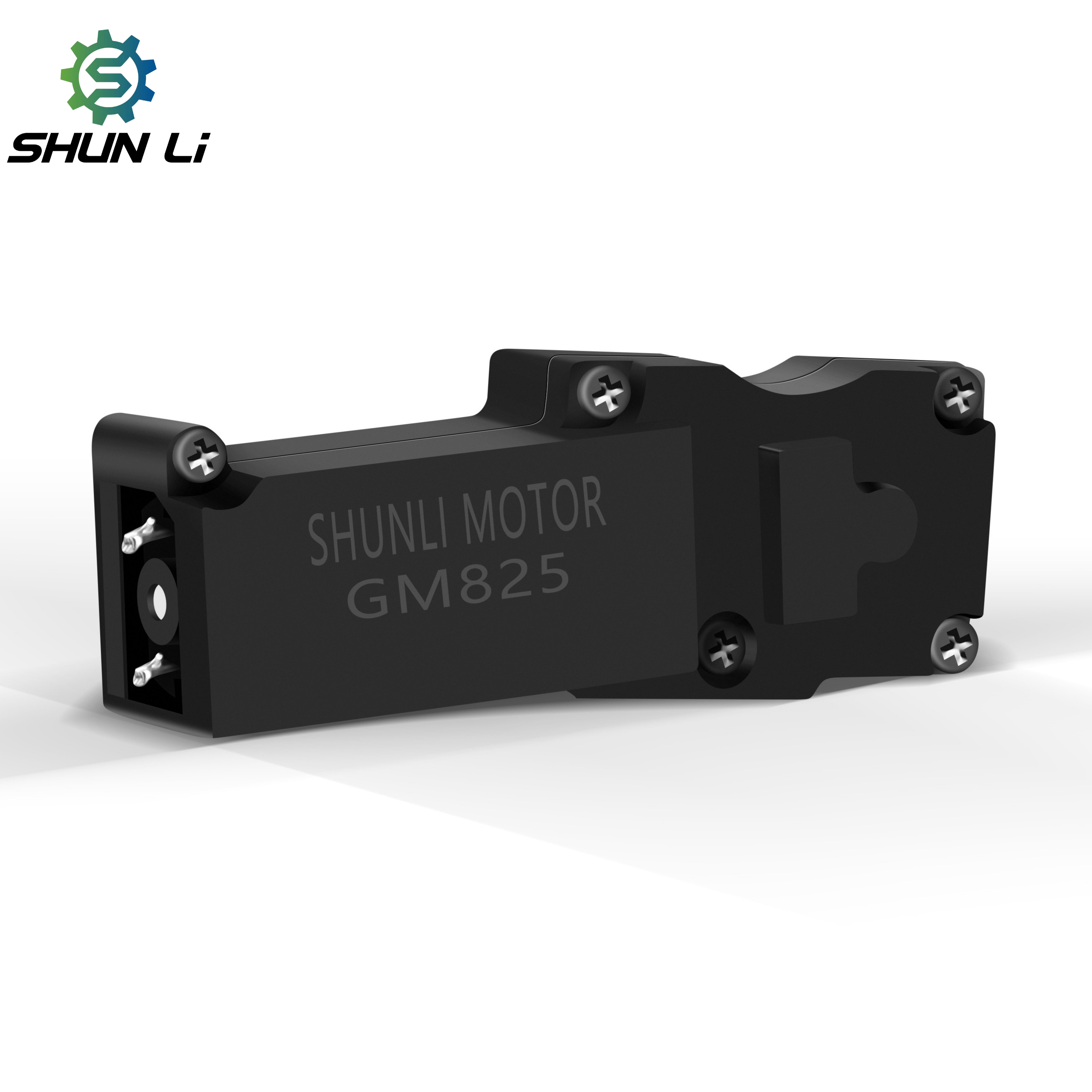

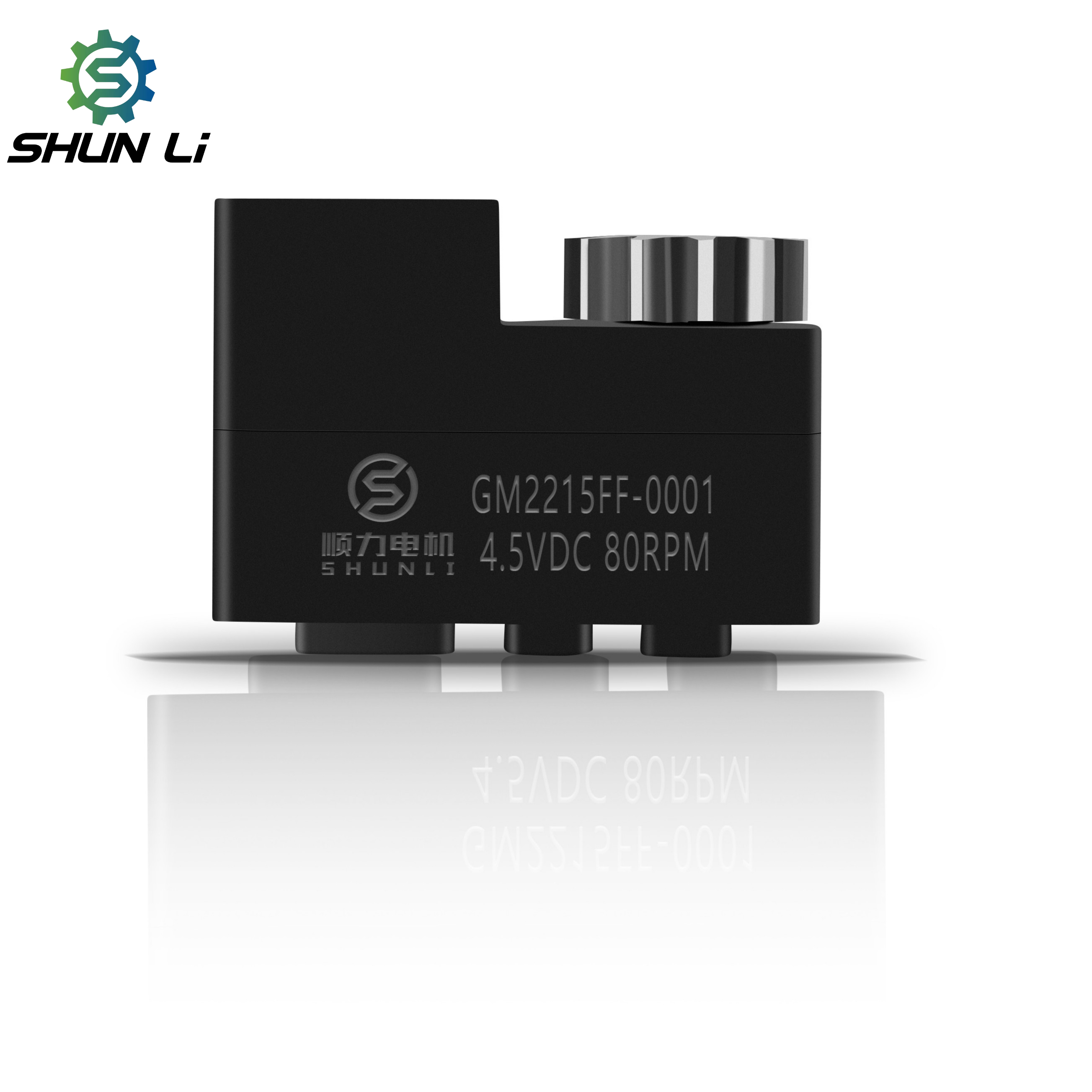

4.5v DC Motor with Gearbox,dc Gear Motor for Door Lock
4.5v DC Motor with Gearbox,dc Gear Motor for Door Lock
4.5v DC Motor with Gearbox,dc Gear Motor for Door Lock
4.5v DC Motor with Gearbox,dc Gear Motor for Door Lock
4.5v DC Motor with Gearbox,dc Gear Motor for Door Lock
1 / 5
4.5v DC Motor with Gearbox,dc Gear Motor for Door Lock
4.5v DC Motor with Gearbox,dc Gear Motor for Door Lock
4.5v DC Motor with Gearbox,dc Gear Motor for Door Lock
4.5v DC Motor with Gearbox,dc Gear Motor for Door Lock
4.5v DC Motor with Gearbox,dc Gear Motor for Door Lock

4.5v DC Motor with Gearbox,dc Gear Motor for Door Lock

Send Inquiry

Product Description

Product Banner
Smart Lock Motor

Technical Specifications

Product Model Smart Lock Motor
Gearbox Size Width: 10mm, Length: 7mm
Dimensions of DC Motor M10 Length: 12.5mm
M20 Length: 15mm
Speed Range 40RPM - 100RPM
Voltage 1.5V ~ 6V
Max Torque 0.5KG.CM Max
Motor Shaft Standard: 1mm plastic shaft
*Shape and length can be customized
Customization Transmission dimensions and motor parameters supported

Dimensional Drawing

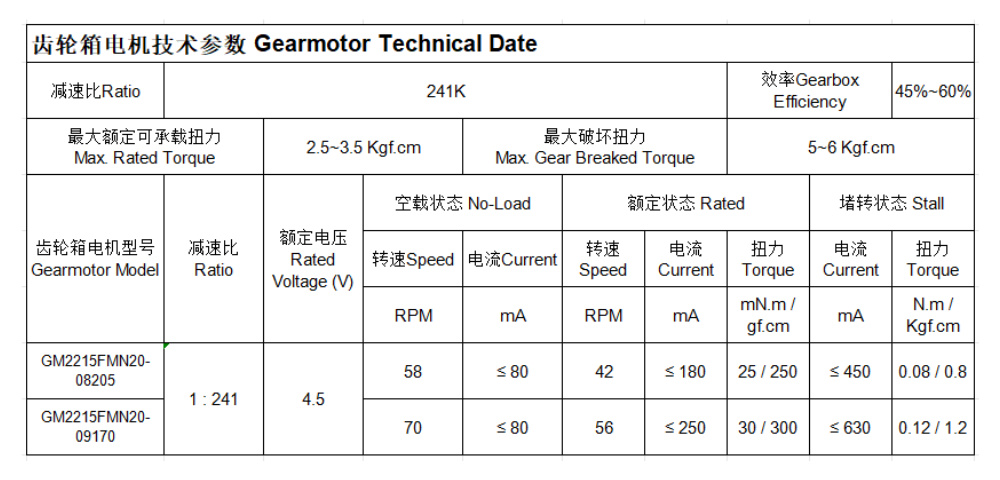

Technical Drawing

Product Showcase

Detail 1
Detail 2
Detail 3
Detail 4
Detail 5
Detail 6

Frequently Asked Questions

Are you a trading company or a manufacturer?
We are a specialized factory. We have focused on micro DC motors and DC gear motors for more than 14 years.
What are the payment terms for new customers?
We offer flexible payment options including Online Assurance Orders (Master Card, Visa, etc.), PayPal, and TT transfers.
Can you customize a motor if I can't find a suitable one?
Yes! We provide full customization services to match a motor to your specific technical requirements.
Do your motors have official certifications?
Yes, our motors carry CE, FCC, and ISO certifications. We can also apply for other specific certificates if required.
How do you ensure quality control?
We employ professional inspection staff at every stage. Our facility uses advanced testing equipment such as Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, and Noise testers.
Are samples available for testing?
We provide sample units for performance verification and quality testing before proceeding with bulk orders.
