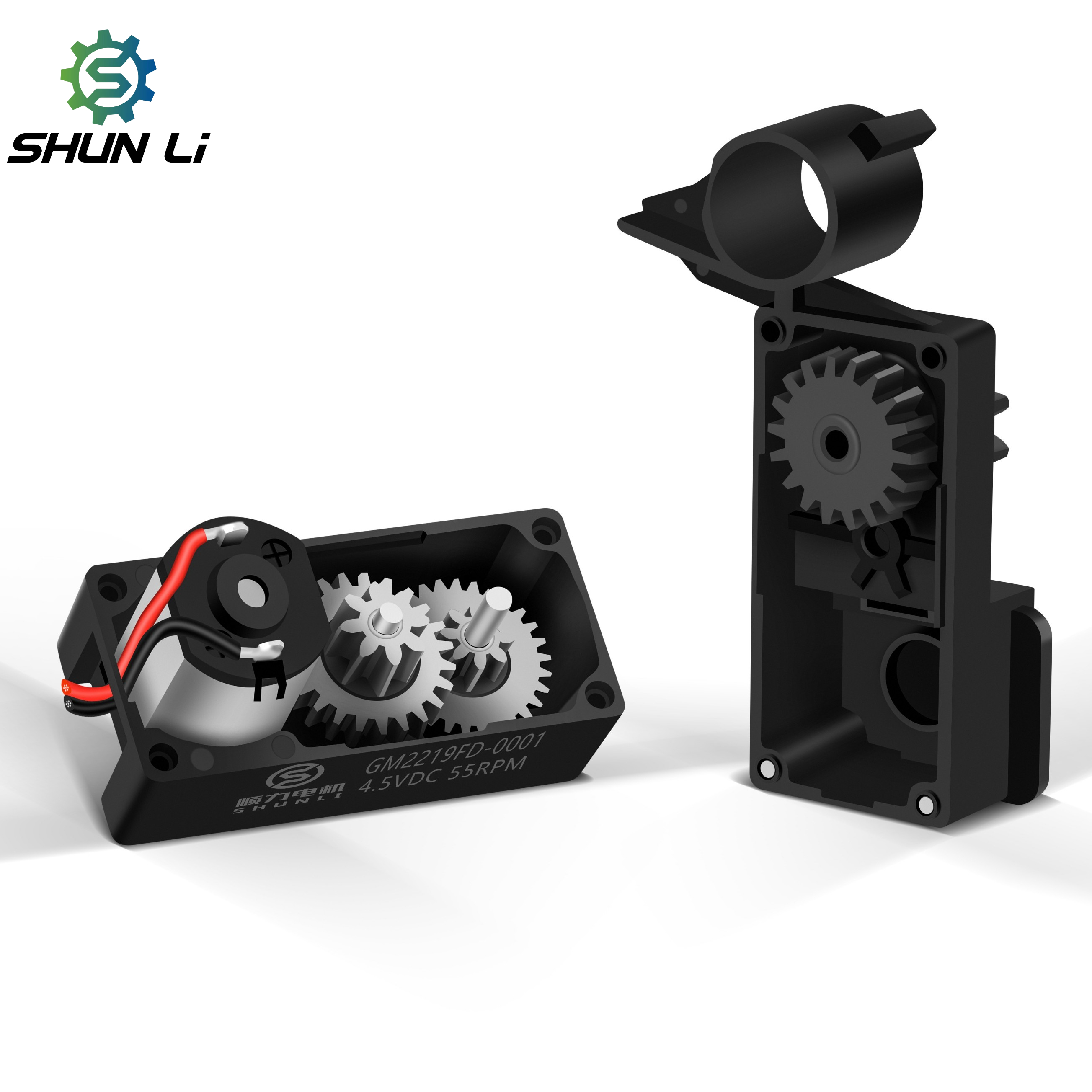

3v 4.5v 6v 12v Dc Mini Motor with Gear Box for Office Automation Equipment
3v 4.5v 6v 12v Dc Mini Motor with Gear Box for Office Automation Equipment
3v 4.5v 6v 12v Dc Mini Motor with Gear Box for Office Automation Equipment
3v 4.5v 6v 12v Dc Mini Motor with Gear Box for Office Automation Equipment
3v 4.5v 6v 12v Dc Mini Motor with Gear Box for Office Automation Equipment
1 / 5
3v 4.5v 6v 12v Dc Mini Motor with Gear Box for Office Automation Equipment
3v 4.5v 6v 12v Dc Mini Motor with Gear Box for Office Automation Equipment
3v 4.5v 6v 12v Dc Mini Motor with Gear Box for Office Automation Equipment
3v 4.5v 6v 12v Dc Mini Motor with Gear Box for Office Automation Equipment
3v 4.5v 6v 12v Dc Mini Motor with Gear Box for Office Automation Equipment

3v 4.5v 6v 12v Dc Mini Motor with Gear Box for Office Automation Equipment

Send Inquiry

Product Description

Product Presentation

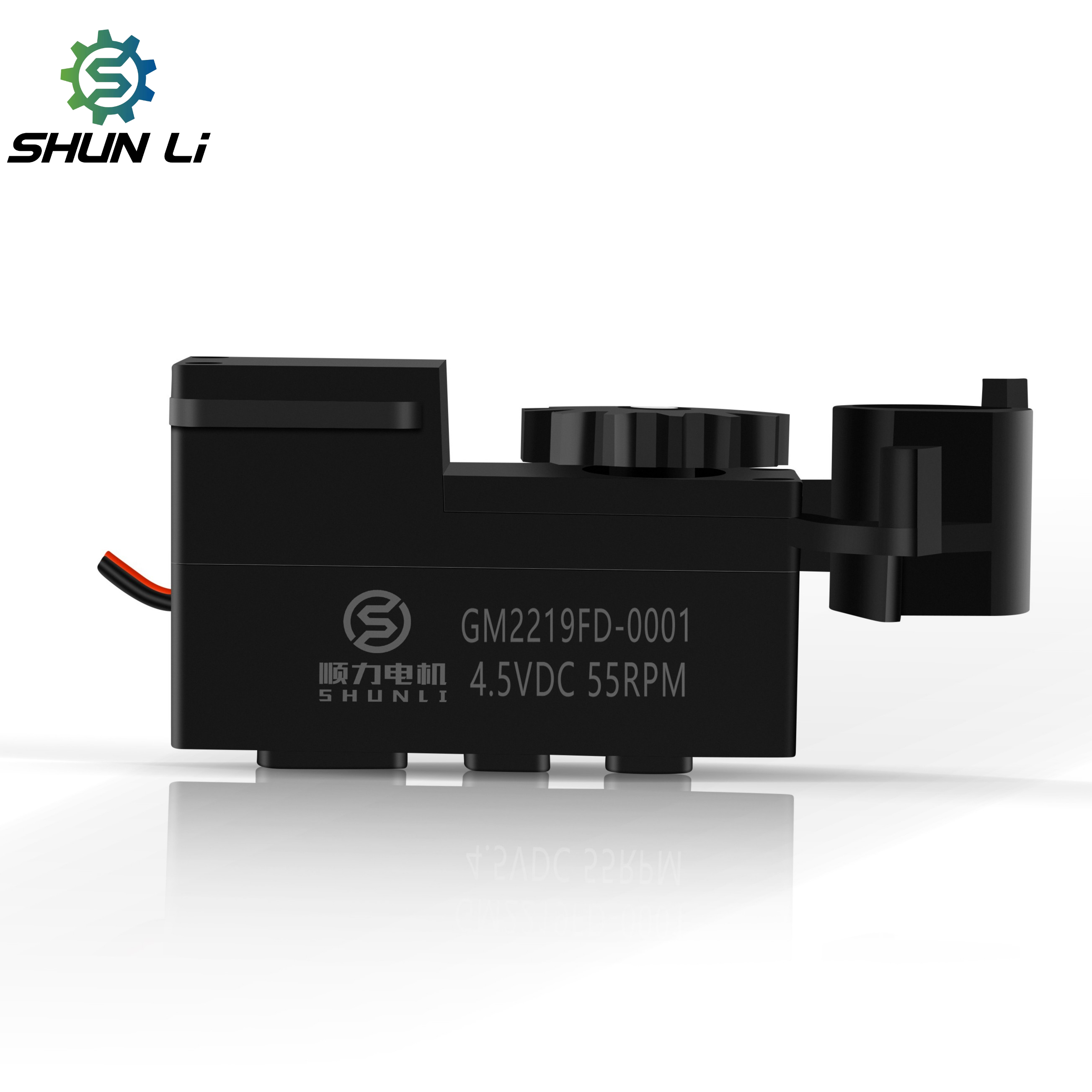

Motor Specifications
Product Model GM2219FD-0001
Ratio 265K
Speed 31RPM-62RPM
Voltage 4.5V
Rated Torque 30 mN.m / 32 mN.m / 35 mN.m
Support Customization Transmission dimensions and motor parameters can be fully customized
Technical Dimensions & Design

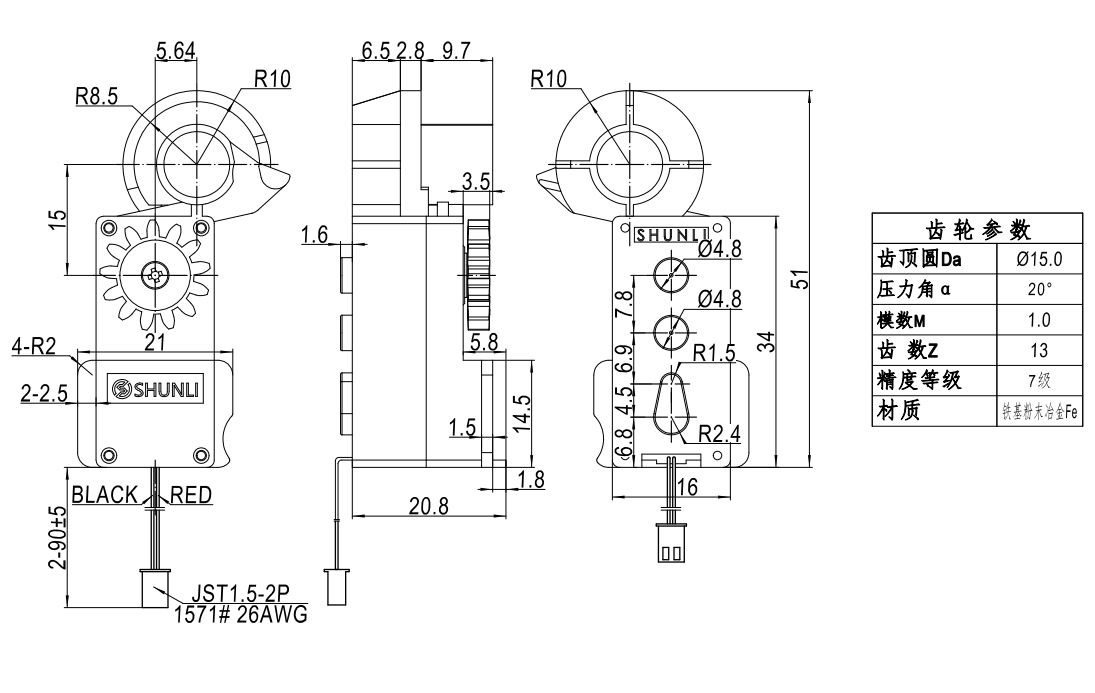

Technical Drawing 1

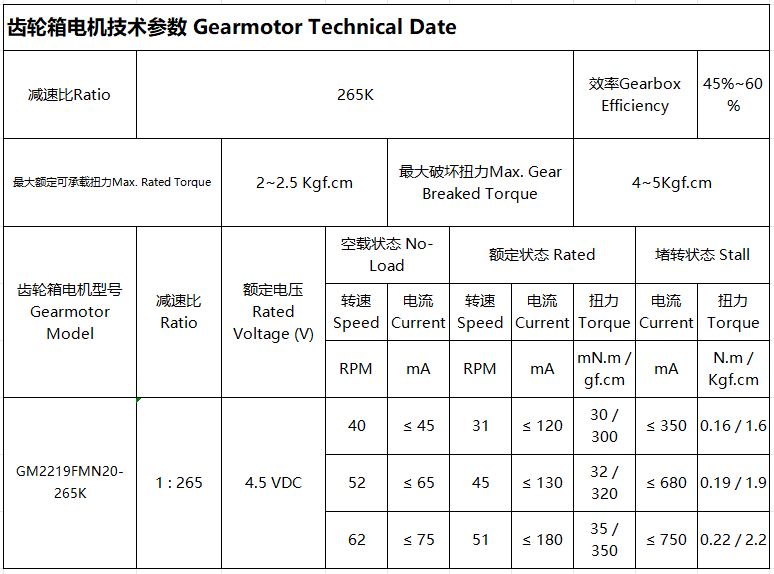

Technical Drawing 2

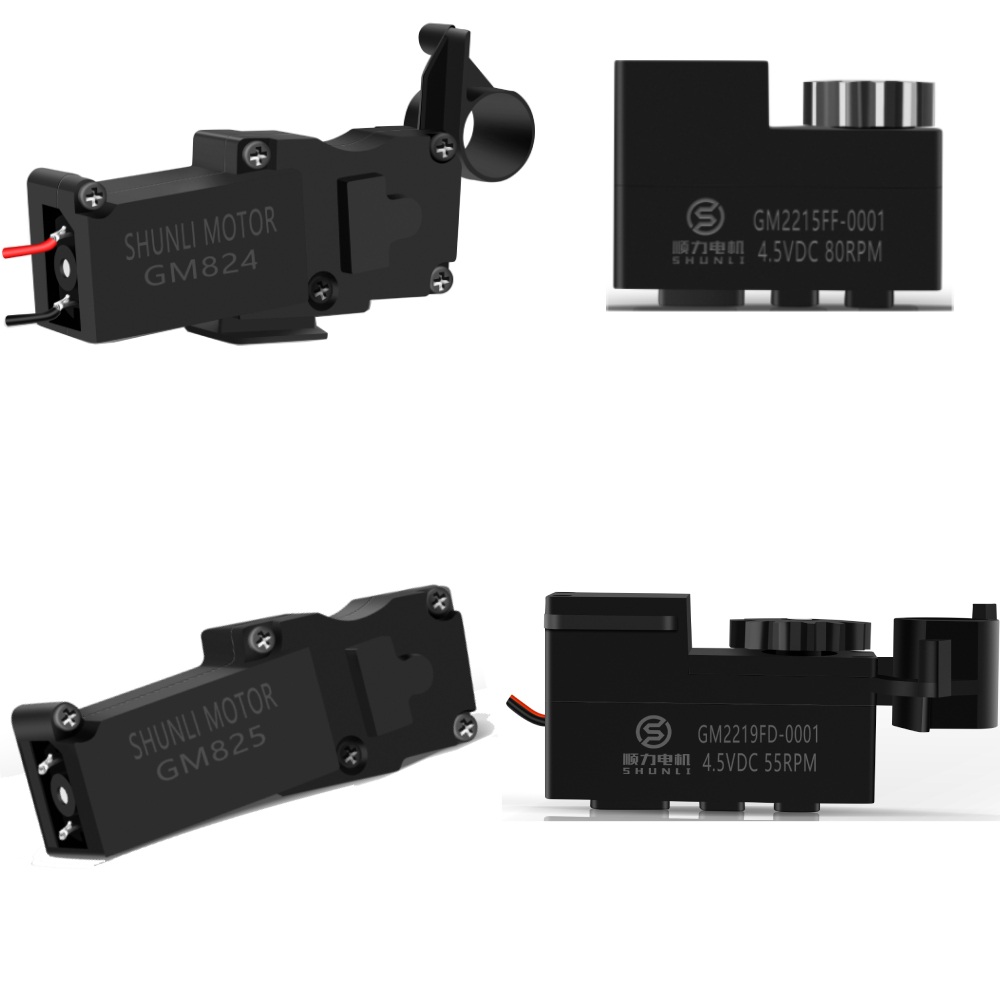

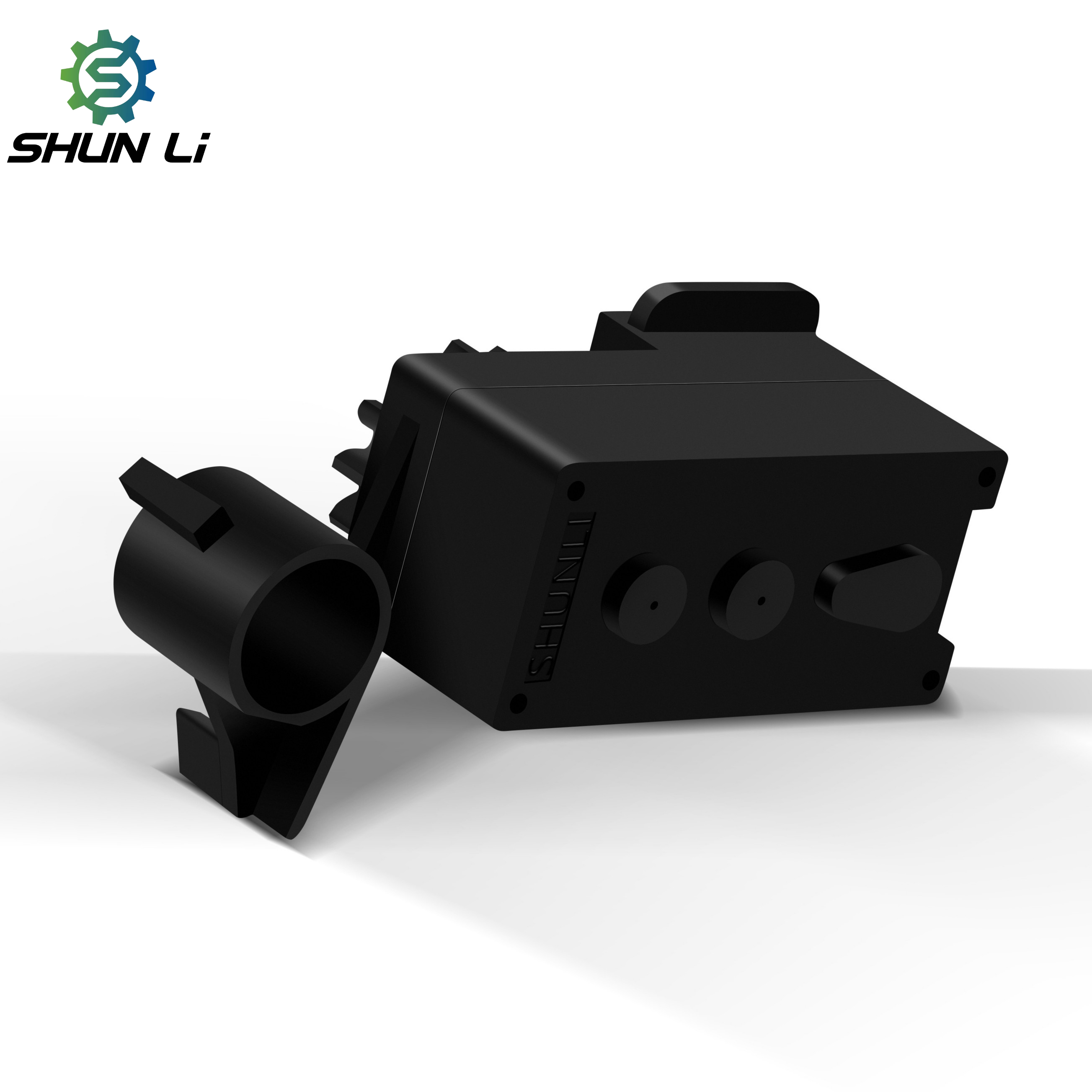

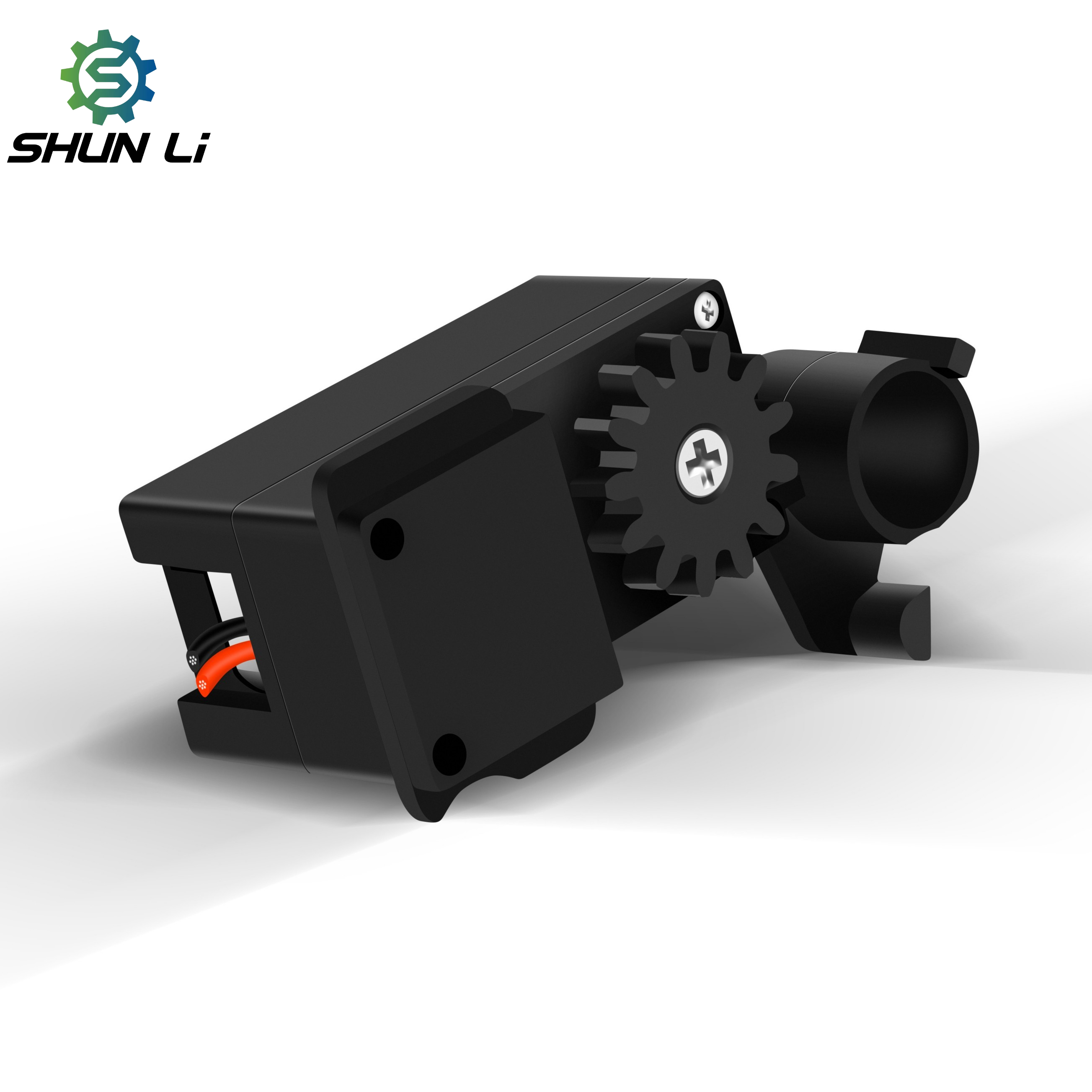

Product Showcase
Micro Motor View 1
Micro Motor View 2
Micro Motor View 3
Micro Motor View 4
Micro Motor View 5
Micro Motor View 6
Frequently Asked Questions
Are you a trading company or a manufacturer?
We are a dedicated factory specializing in micro DC motors and DC gear motors with over 14 years of professional manufacturing experience.
What are the available payment terms for new customers?
We offer flexible payment options including Online Assurance Orders (supporting Master Card, Visa, etc.), PayPal, and T/T transfers to ensure a secure transaction process.
Can you provide customization if I can't find a suitable motor?
Yes, we provide comprehensive customization services. We can design and manufacture a suitable motor tailored specifically to your technical requirements and applications.
What certifications do your motors carry?
Our products are certified with CE, FCC, ISO, and other industry standards. If your project requires specific additional certifications, we can apply for them as needed.
How do you ensure product quality control?
We employ professional inspection staff at every stage of the production line. Every finished motor undergoes rigorous testing using advanced equipment such as Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, and Noise testers.
Is technical support available for motor integration?
Absolutely. Our engineering team can provide technical guidance and parameters to ensure our DC gear motors integrate perfectly into your specific device or machinery.
