DC 6V 12V Gear Motor 1024GA20 Thread Flip N20 Gear Motor M4 X 55mm Shaft(6V 30RPM)
DC 6V 12V Gear Motor 1024GA20 Thread Flip N20 Gear Motor M4 X 55mm Shaft(6V 30RPM)
DC 6V 12V Gear Motor 1024GA20 Thread Flip N20 Gear Motor M4 X 55mm Shaft(6V 30RPM)
DC 6V 12V Gear Motor 1024GA20 Thread Flip N20 Gear Motor M4 X 55mm Shaft(6V 30RPM)
DC 6V 12V Gear Motor 1024GA20 Thread Flip N20 Gear Motor M4 X 55mm Shaft(6V 30RPM)
1 / 5
DC 6V 12V Gear Motor 1024GA20 Thread Flip N20 Gear Motor M4 X 55mm Shaft(6V 30RPM)
DC 6V 12V Gear Motor 1024GA20 Thread Flip N20 Gear Motor M4 X 55mm Shaft(6V 30RPM)
DC 6V 12V Gear Motor 1024GA20 Thread Flip N20 Gear Motor M4 X 55mm Shaft(6V 30RPM)
DC 6V 12V Gear Motor 1024GA20 Thread Flip N20 Gear Motor M4 X 55mm Shaft(6V 30RPM)
DC 6V 12V Gear Motor 1024GA20 Thread Flip N20 Gear Motor M4 X 55mm Shaft(6V 30RPM)

DC 6V 12V Gear Motor 1024GA20 Thread Flip N20 Gear Motor M4 X 55mm Shaft(6V 30RPM)

Send Inquiry

Product Description

Product Overview

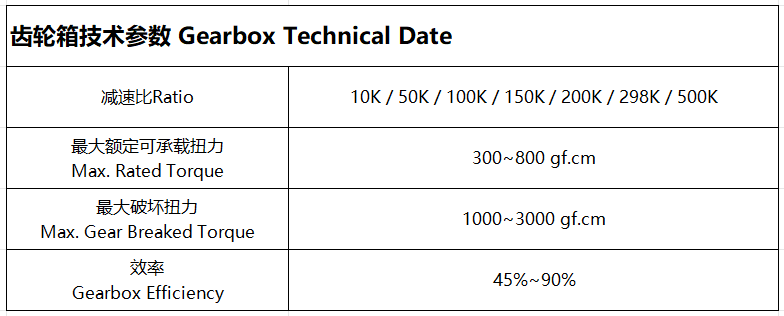

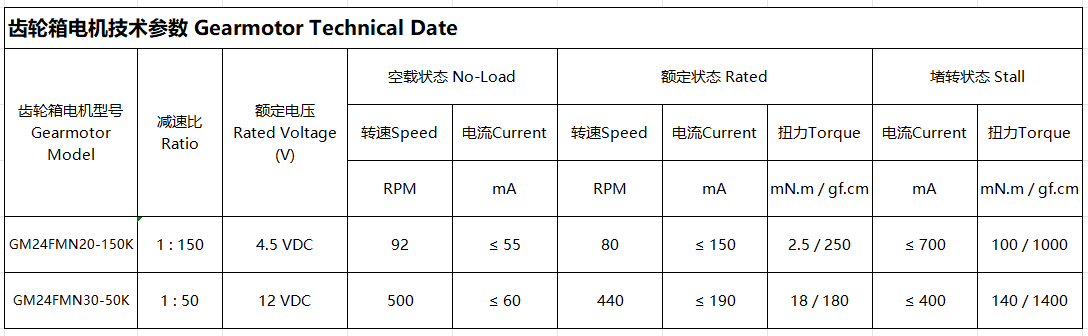

📊 Technical Specifications
Product Model Image
Product Model GM24FMN20/N30
Gearbox Length 19±0.3mm
Speed 80RPM-325RPM
Voltage 3.7V
Torque 12mN.m/60mN.m
Support customization Transmission Dimensions and Motor Parameters Can Be Customized

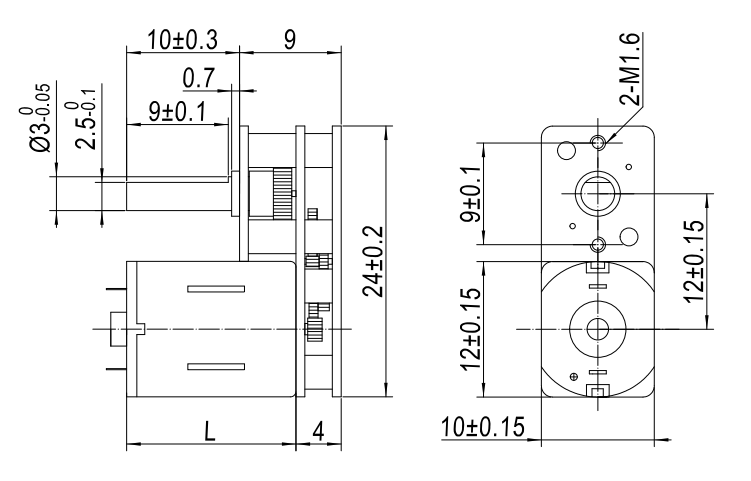

📐 Dimensional Drawings & Features

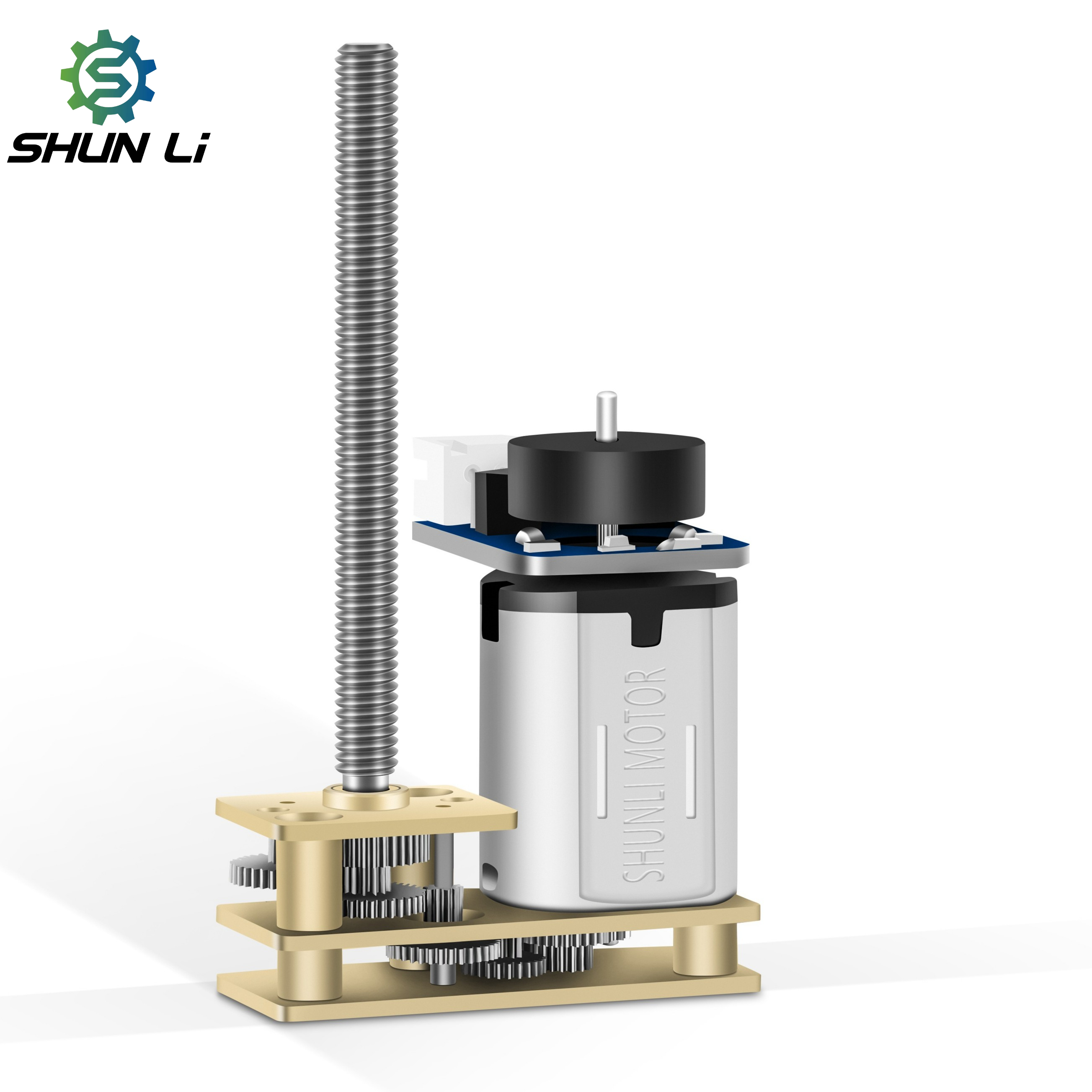

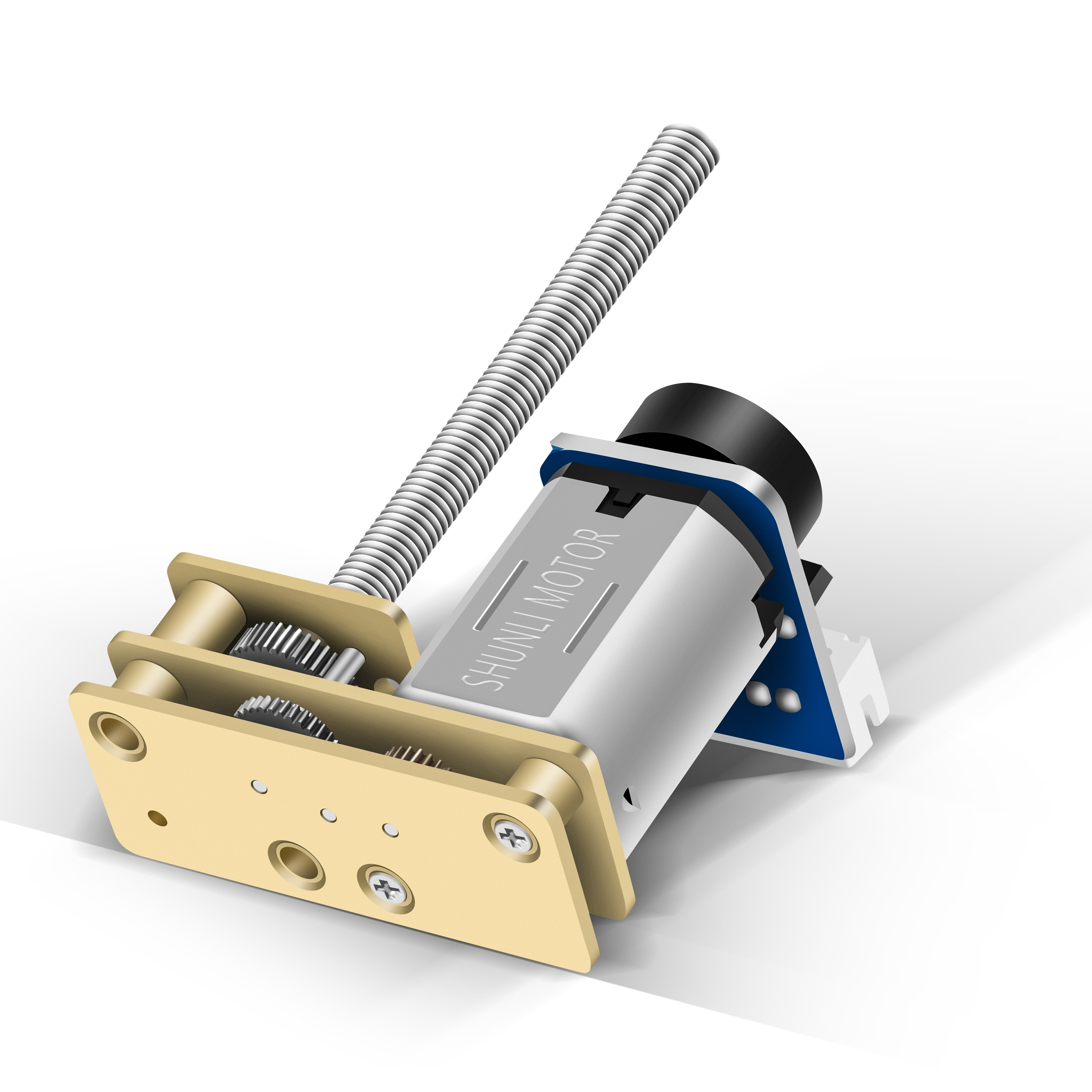

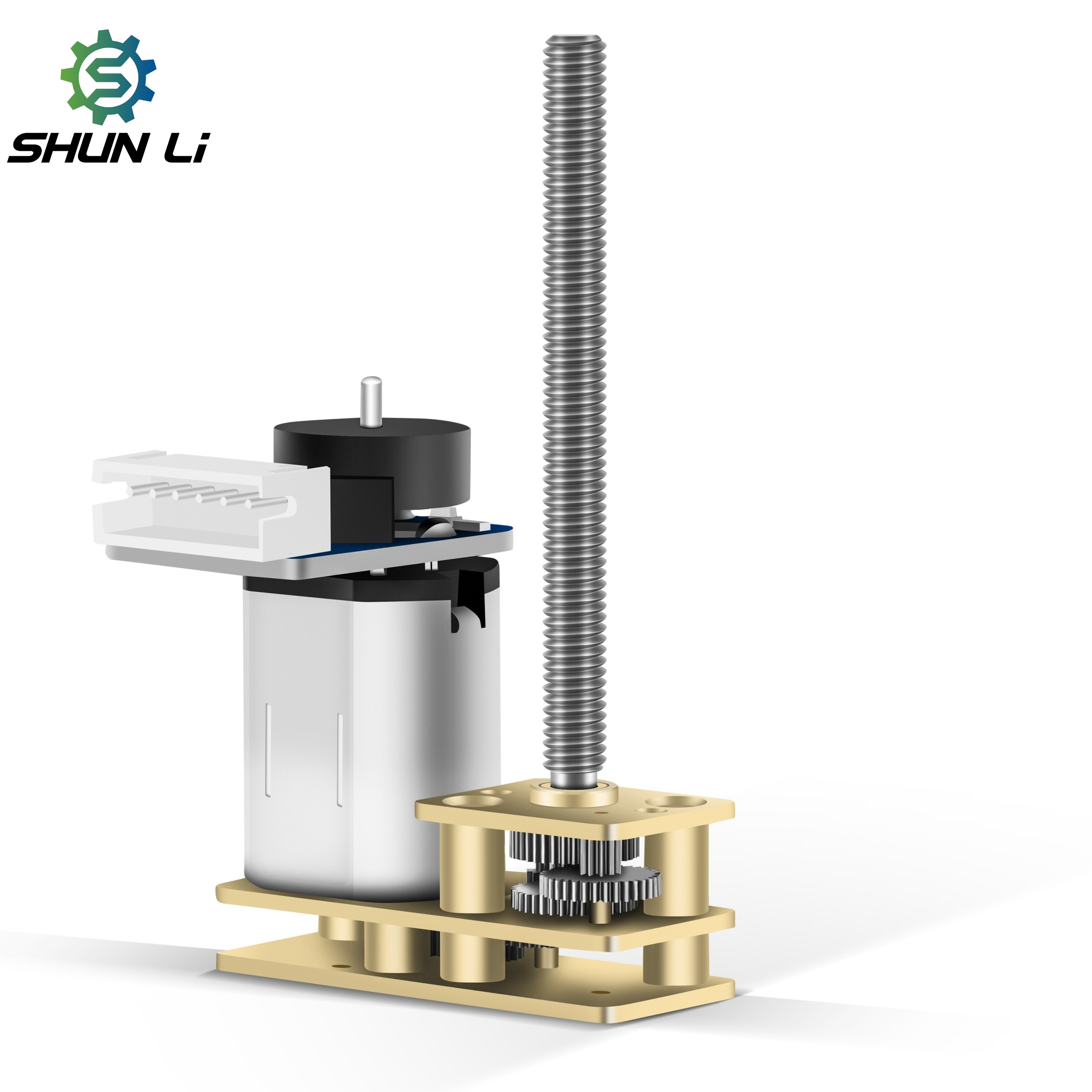

📸 Product Display
❓ Frequently Asked Questions
1.   Are you a trading company or a manufacturer?
We're a factory specializing in micro DC motors and DC gear motors for more than 14 years.
2.   What is the payment term for new customers?
We can draw up an Assurance Order online which can be paid via Master Card, Visa, etc. Customers can also pay with PayPal or TT.
3.   Can you customize a motor if I can't find a suitable one?
Yes, we can customize a suitable motor according to our customer's specific requirements.
4.   Do you have certificates for the motors?
Yes, we have CE, FCC, ISO, and other relevant certificates. We can also apply for other specific certificates if required.
5.   How is your Quality Control managed?
We have professional checking staff on every production line process. After finishing the motor, we use professional machines for comprehensive testing.
6.   What testing equipment do you use for quality assurance?
We utilize various advanced machines including Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Test Machines, and Noise testers.
