Product Description

Micro DC Motor Overview
Product Specifications
DC Gear Motor Details
Product Model GM95SM545/555/575
Gearbox Length 95MM
Speed 14.5RPM~65RPM
Voltage 24V / 12V
Torque 1.2 N.m to 6 N.m
Customization Transmission dimensions and motor parameters can be fully customized
Technical Dimensions

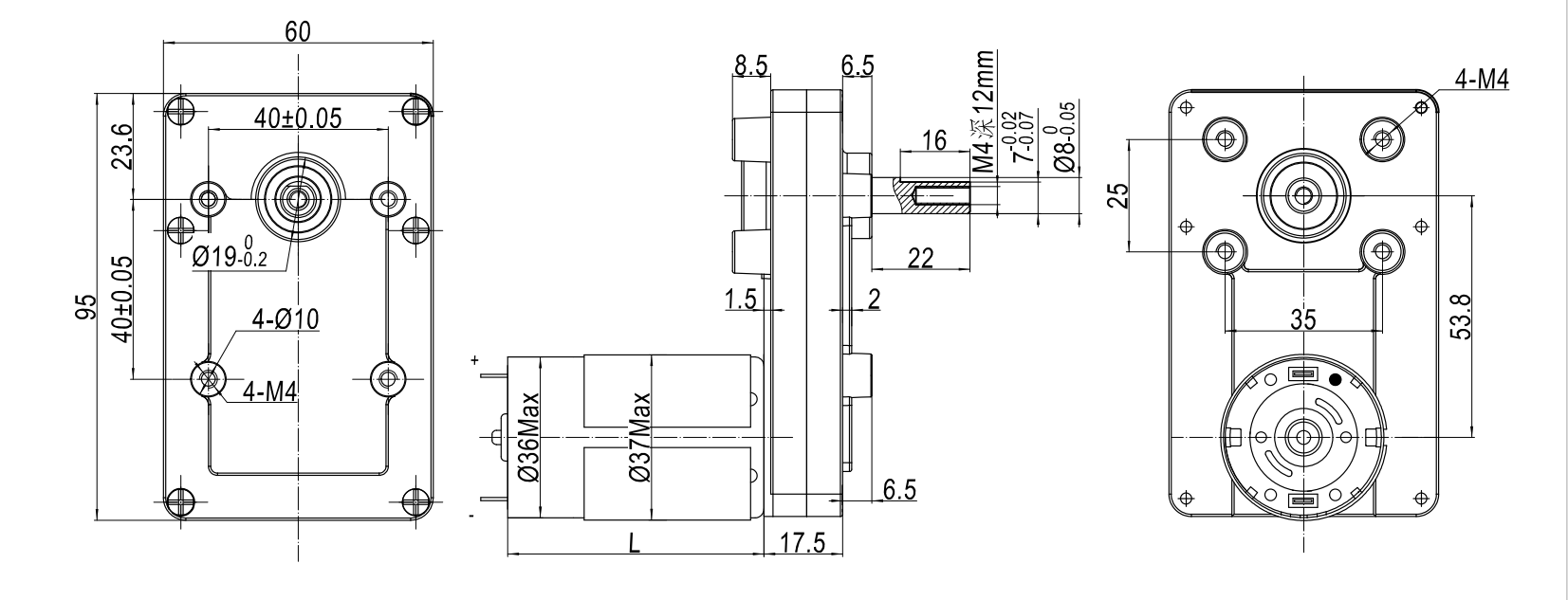

Motor Technical Drawing 1

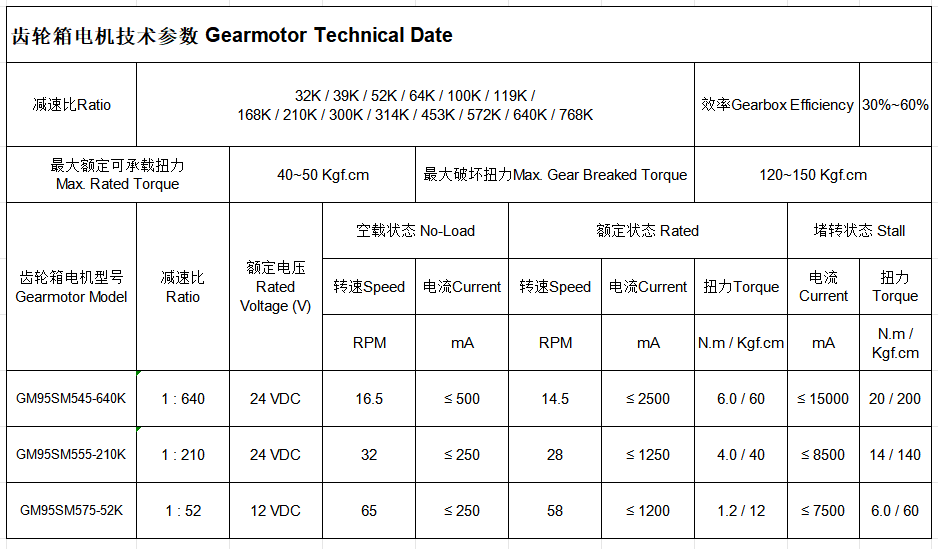

Motor Technical Drawing 2
Product Showcase
Production View 1 Production View 2 Production View 3 Production View 4 Production View 5 Production View 6
Frequently Asked Questions
Are you a trading company or a manufacturer?
We are a factory specializing in micro DC motors and DC gear motors with over 14 years of industry experience.
What are the available payment terms for new customers?
We support online assurance orders which can be paid via MasterCard or Visa. Additionally, we accept payments through PayPal and TT (Telegraphic Transfer).
Can you provide customized motor solutions?
Yes, we can fully customize motor parameters and transmission dimensions to meet your specific technical requirements.
Do your products carry any quality certifications?
Our motors are certified with CE, FCC, and ISO standards. We can also apply for other specific certifications if required by your project.
How do you ensure product quality?
We employ professional inspection staff on every production line. Our facility is equipped with advanced testing machinery including Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, and Noise Testers.
What kind of reliability testing do you perform?
Each motor undergoes rigorous testing using Life Testers and Temperature Test Machines to ensure long-term durability and performance stability.
