Home > DC Worm Gear Motor > OEM Customized 12v 24 v 2.4w/28.8w Self-locking Function Drive Dc Worm Gear Motor

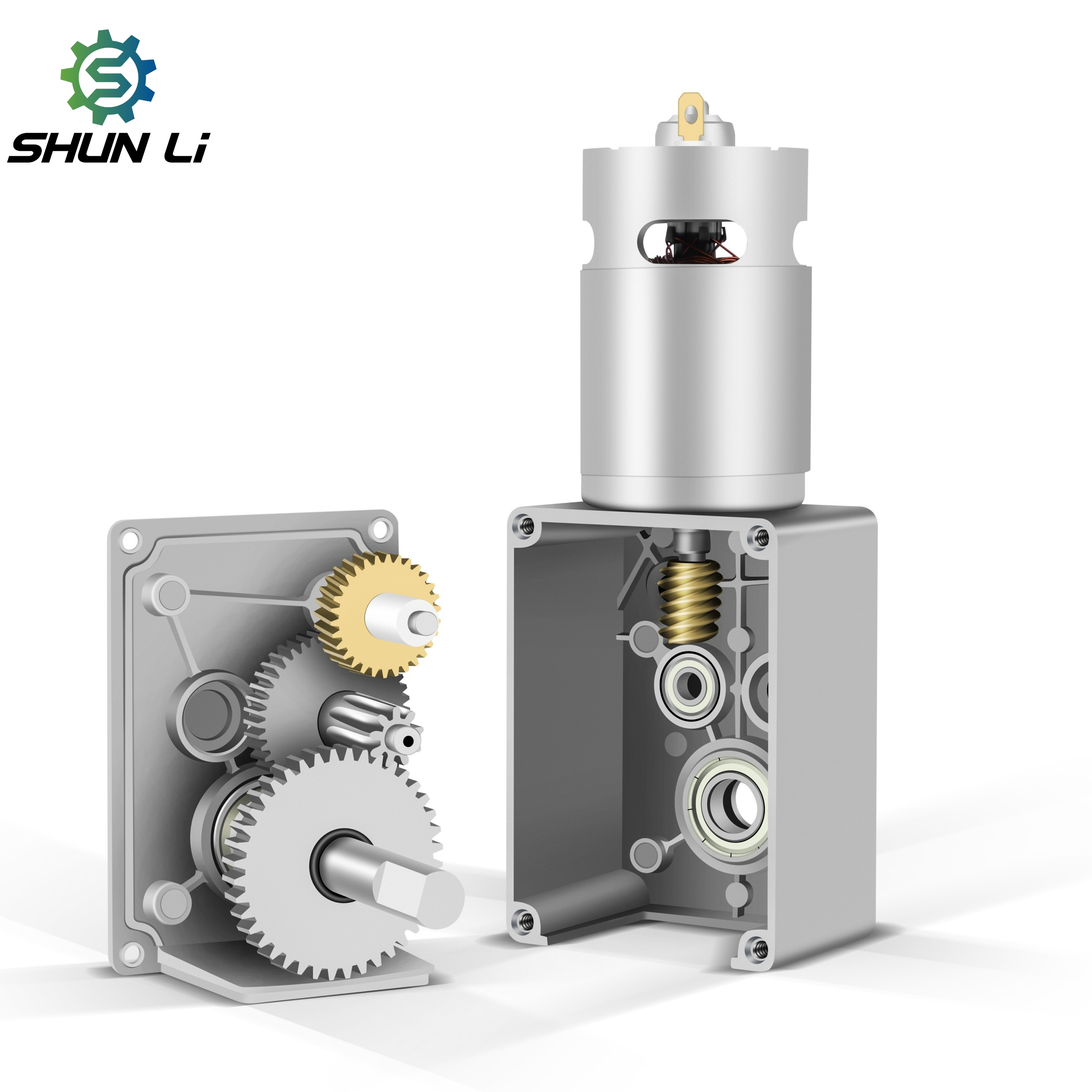

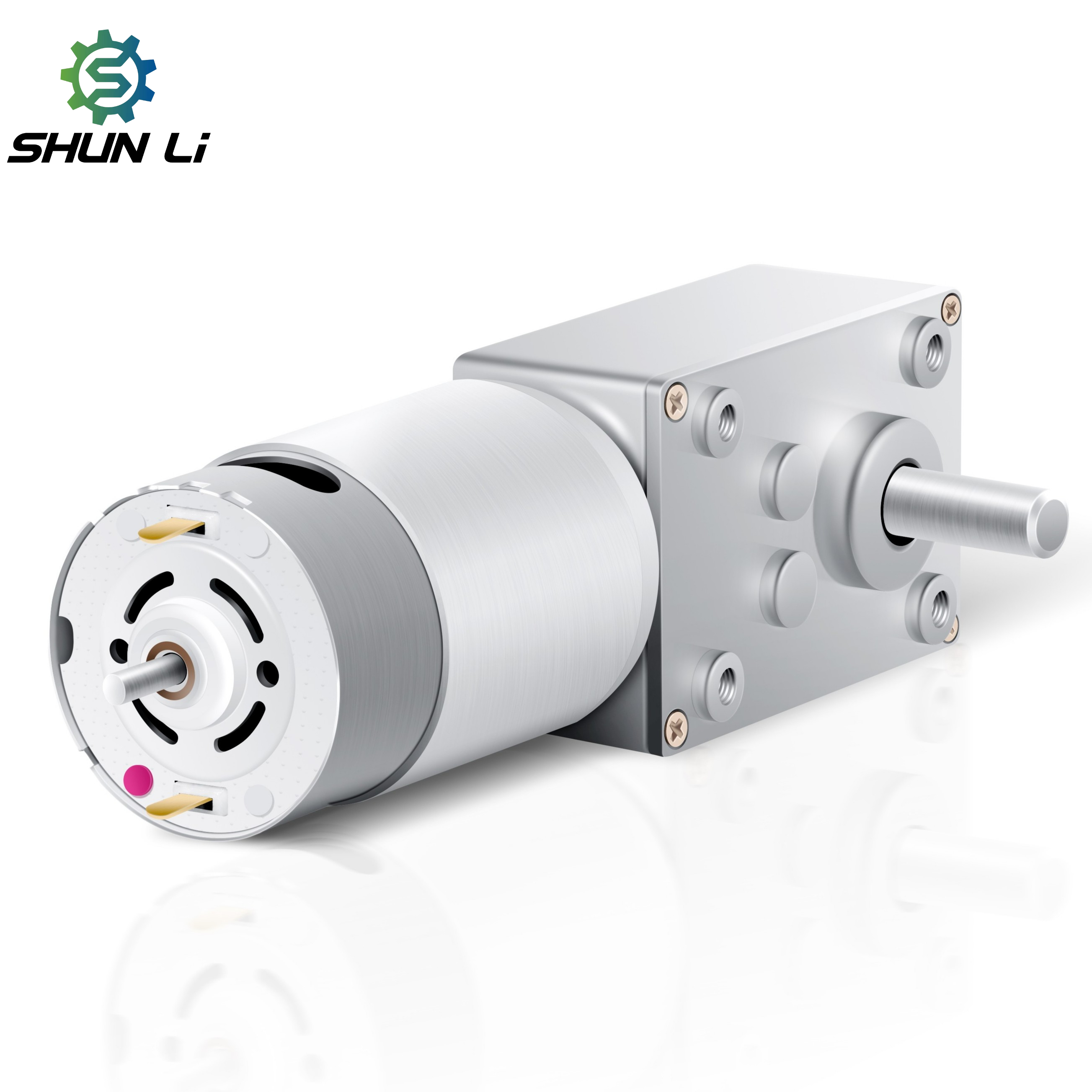

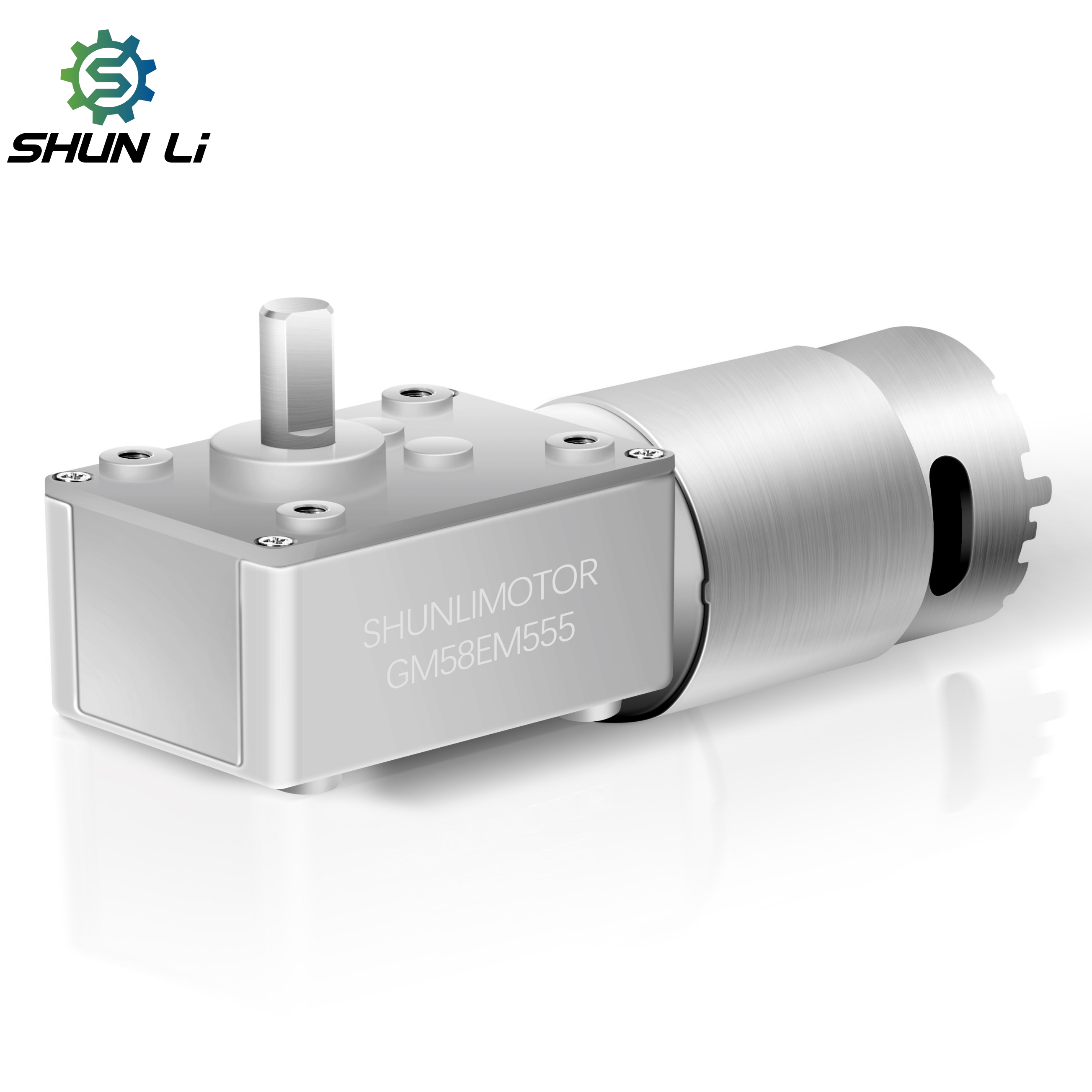

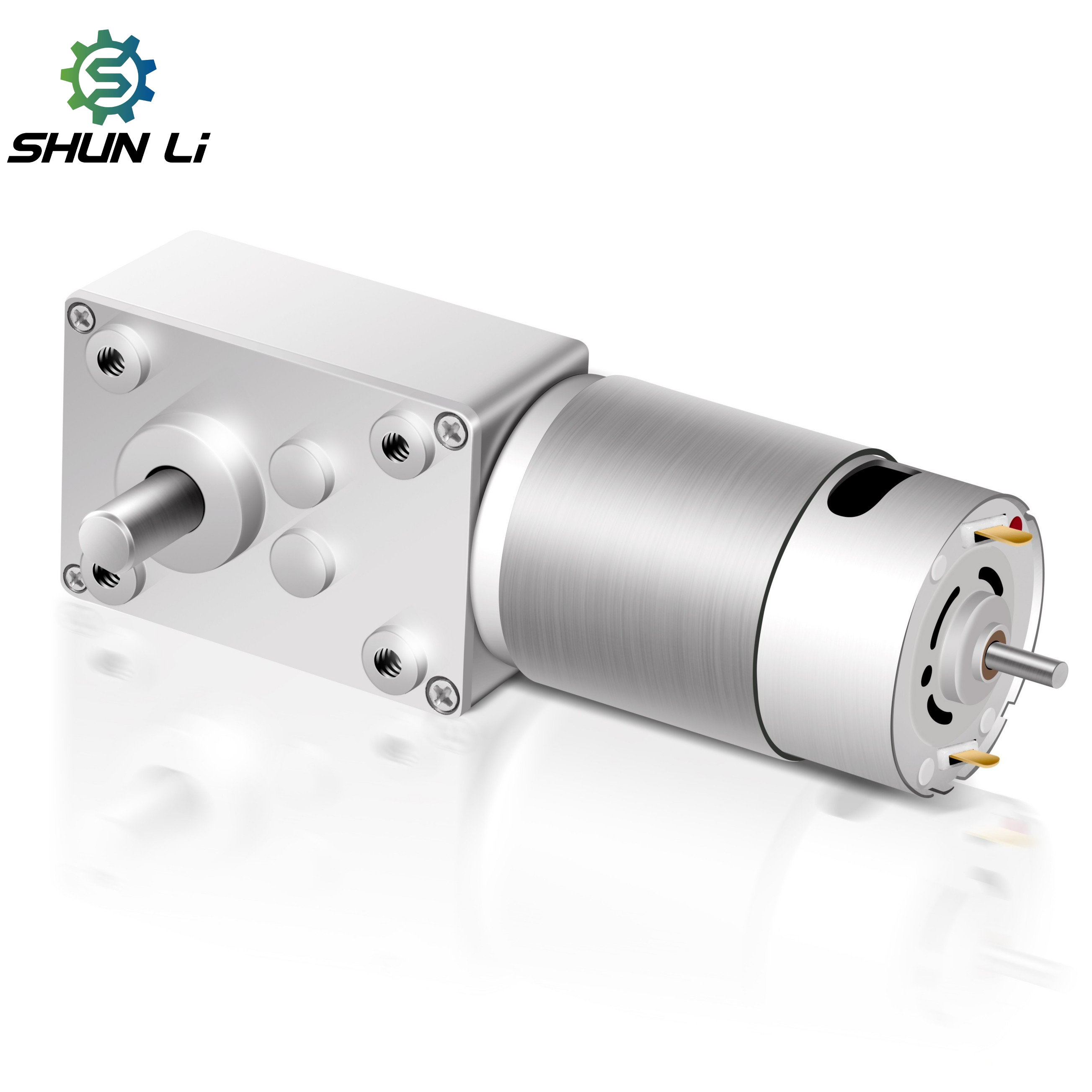

OEM Customized 12v 24 v 2.4w/28.8w Self-locking Function Drive Dc Worm Gear Motor
OEM Customized 12v 24 v 2.4w/28.8w Self-locking Function Drive Dc Worm Gear Motor
OEM Customized 12v 24 v 2.4w/28.8w Self-locking Function Drive Dc Worm Gear Motor
OEM Customized 12v 24 v 2.4w/28.8w Self-locking Function Drive Dc Worm Gear Motor
OEM Customized 12v 24 v 2.4w/28.8w Self-locking Function Drive Dc Worm Gear Motor
1 / 5
OEM Customized 12v 24 v 2.4w/28.8w Self-locking Function Drive Dc Worm Gear Motor
OEM Customized 12v 24 v 2.4w/28.8w Self-locking Function Drive Dc Worm Gear Motor
OEM Customized 12v 24 v 2.4w/28.8w Self-locking Function Drive Dc Worm Gear Motor
OEM Customized 12v 24 v 2.4w/28.8w Self-locking Function Drive Dc Worm Gear Motor
OEM Customized 12v 24 v 2.4w/28.8w Self-locking Function Drive Dc Worm Gear Motor

OEM Customized 12v 24 v 2.4w/28.8w Self-locking Function Drive Dc Worm Gear Motor

Send Inquiry

Product Description

Product Display
Technical Drawing
⚙️Product Specifications
Product Model GM58EM545/555/575
Gearbox Length 58±0.5MM
Speed 92RPM~190RPM
Voltage 24V
Torque 0.65N.m / 0.35N.m
Customization Dimensions and Parameters can be customized
📐Technical Dimensions & Performance

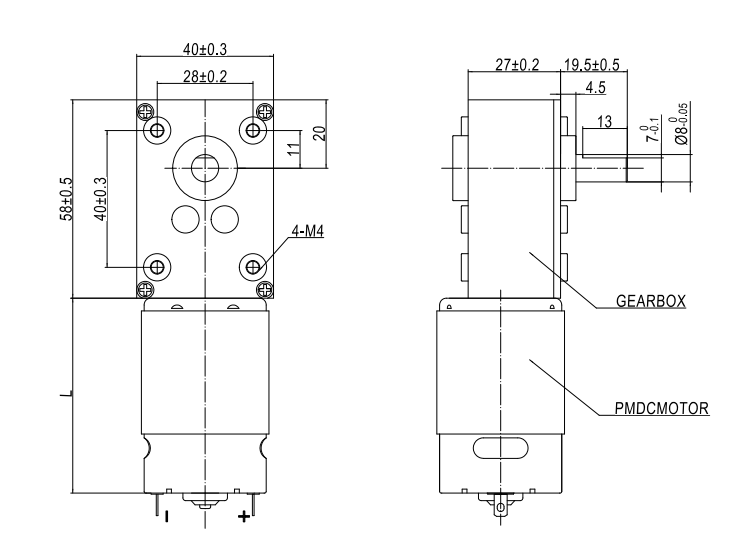

Dimensions

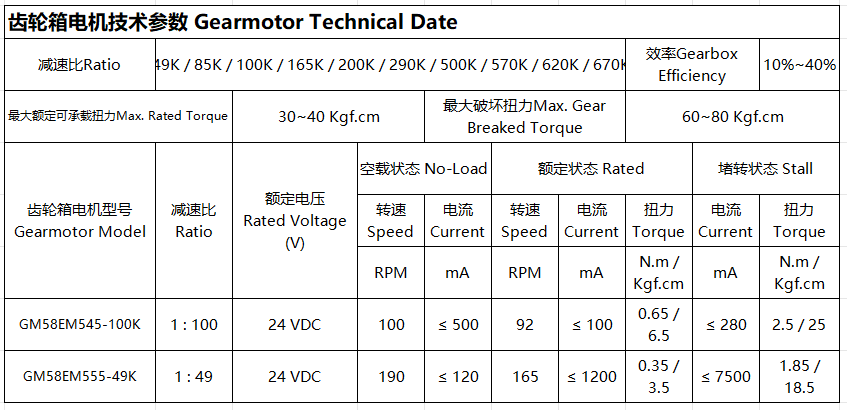

Performance Curve

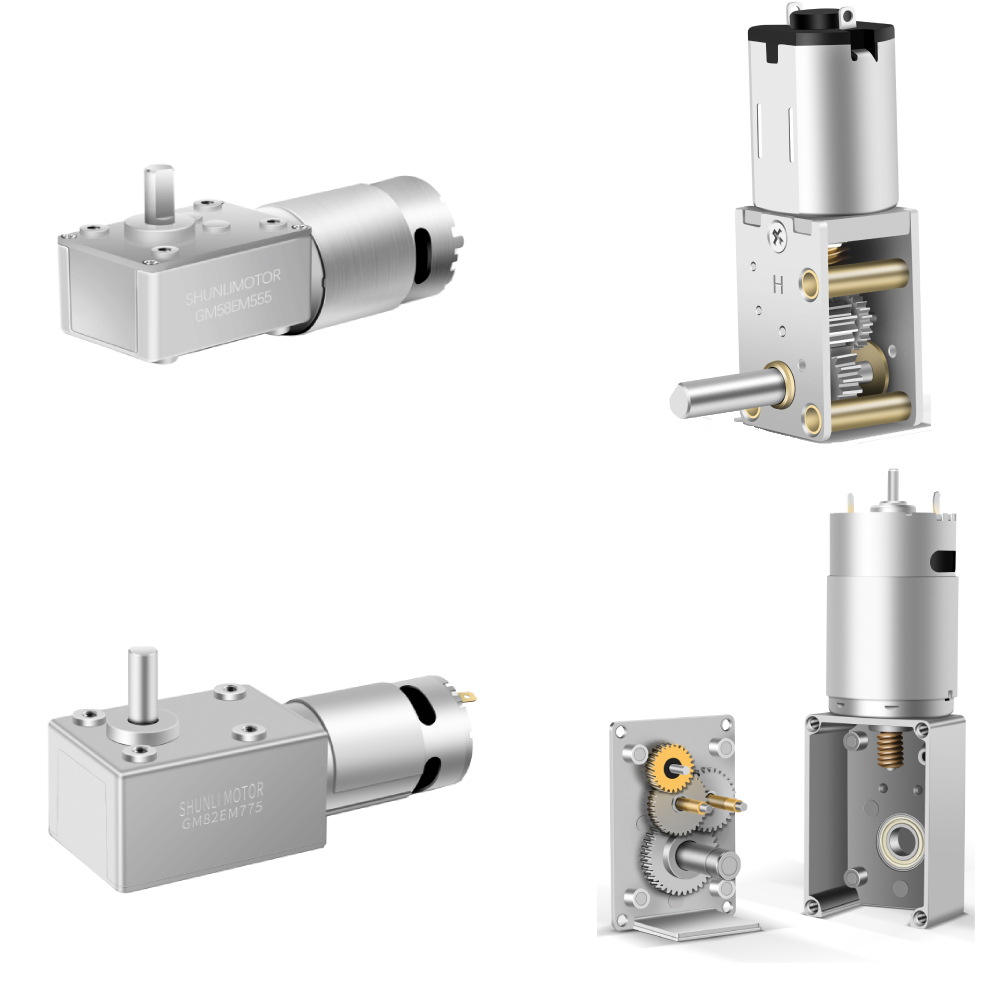

📸Product Details Gallery
Frequently Asked Questions
🔹 1. Are you a trading company or a manufacturer?
We are a professional factory specializing in micro DC motors and DC gear motors for more than 14 years.
🔹 2. What are the payment terms for new customers?
We support online assurance orders (MasterCard, Visa, etc.), as well as PayPal and TT payment methods.
🔹 3. Can you provide customization if I can't find a suitable motor?
Yes, we can fully customize motor parameters and dimensions according to your specific requirements.
🔹 4. Do your motors come with official certifications?
Yes, our products are certified with CE, FCC, ISO, and other relevant standards as required.
🔹 5. How do you ensure quality control during production?
We utilize professional checking staff on every production line and perform comprehensive testing using Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, and Life Testers.
🔹 6. What kind of specialized testing equipment do you use?
Our quality assurance process includes Temperature Test Machines, Noise Testers, and high-precision measurement tools to ensure every motor meets standard performance.
