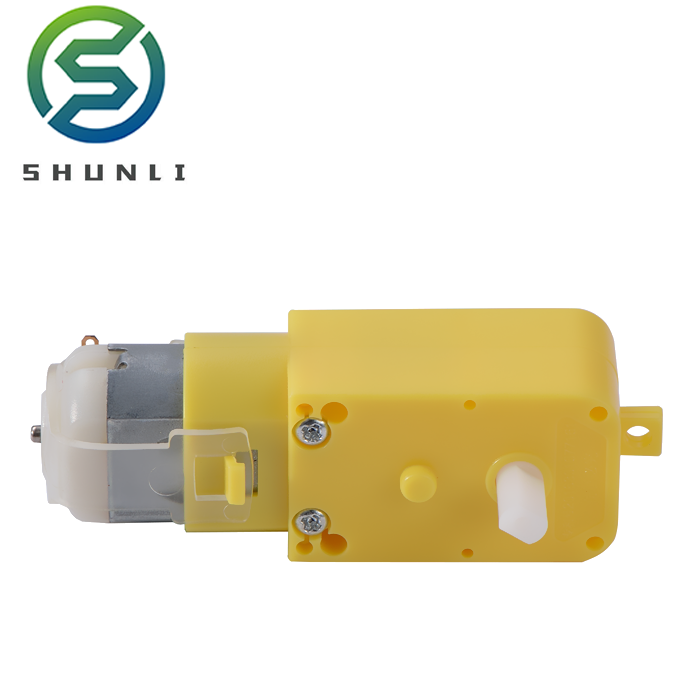

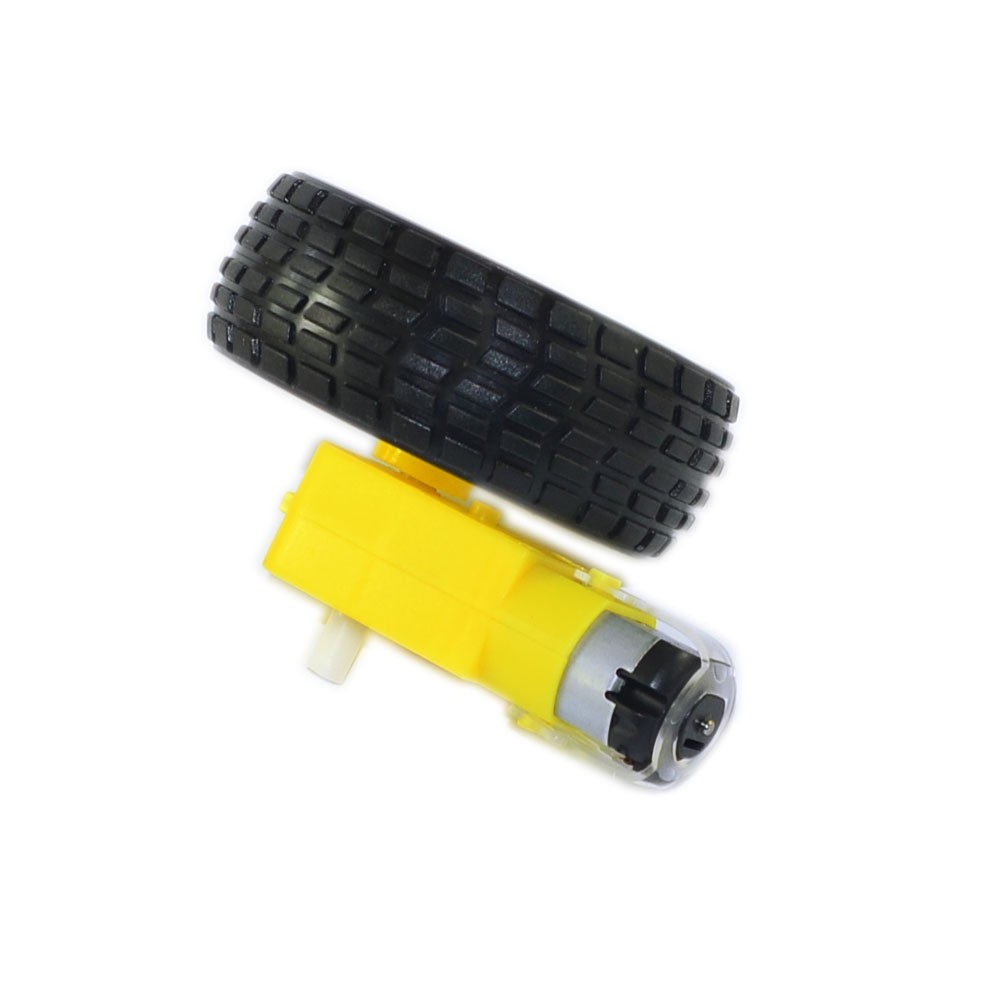

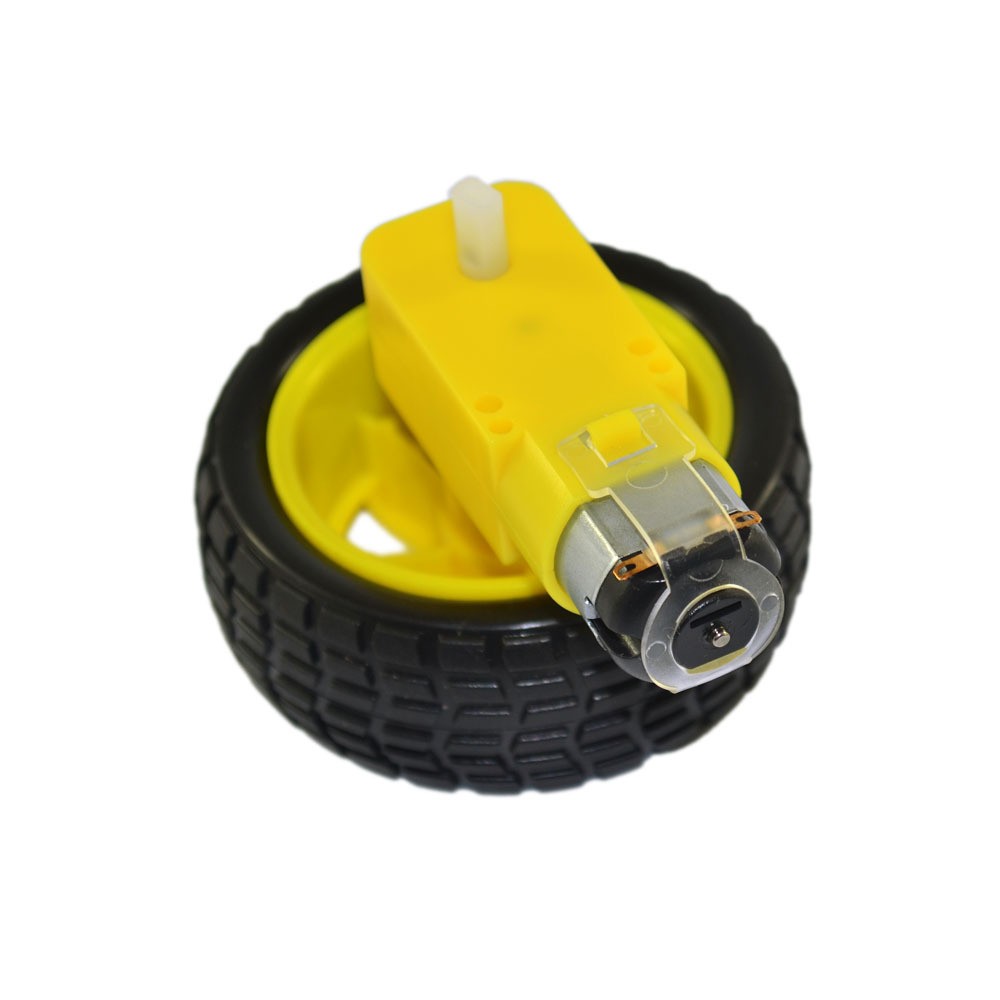

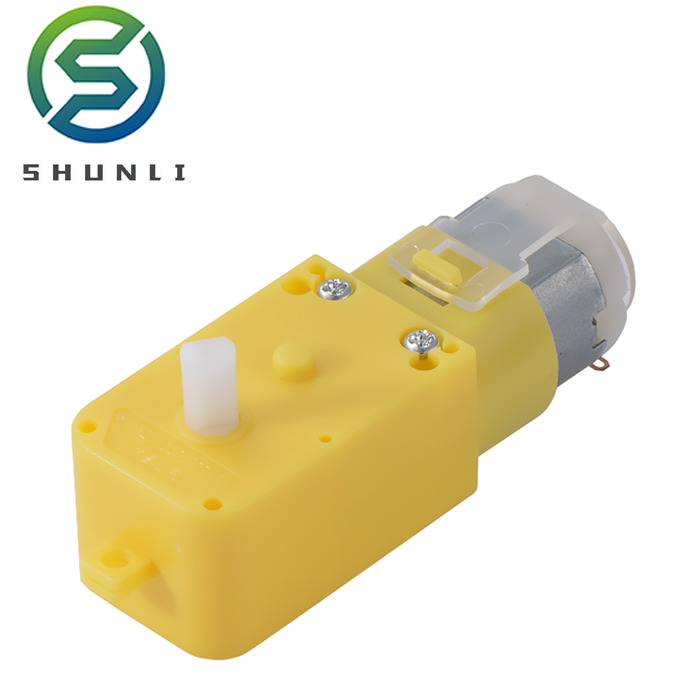

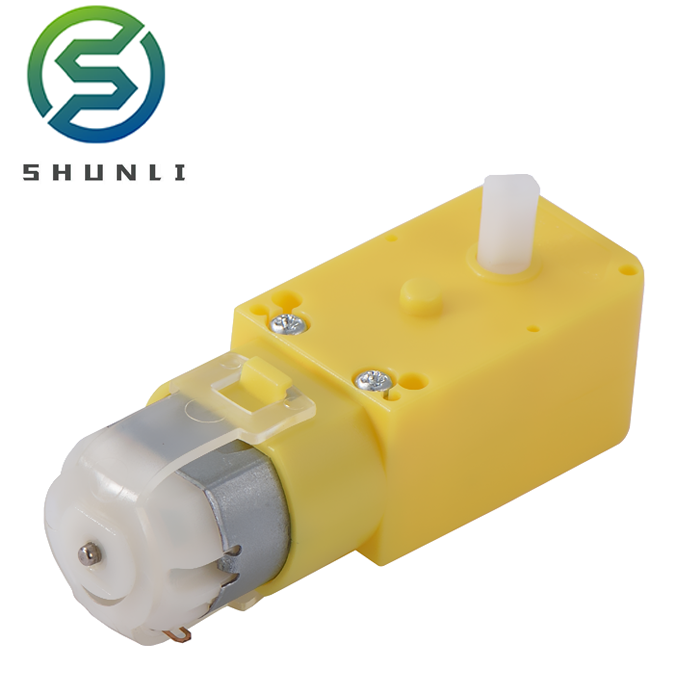

1.5v 3v 4.5v Mini Dc Gear Toy Motor with Reduction Plastic Gearbox for Toy / Toy Car / Robot
1.5v 3v 4.5v Mini Dc Gear Toy Motor with Reduction Plastic Gearbox for Toy / Toy Car / Robot
1.5v 3v 4.5v Mini Dc Gear Toy Motor with Reduction Plastic Gearbox for Toy / Toy Car / Robot
1.5v 3v 4.5v Mini Dc Gear Toy Motor with Reduction Plastic Gearbox for Toy / Toy Car / Robot
1.5v 3v 4.5v Mini Dc Gear Toy Motor with Reduction Plastic Gearbox for Toy / Toy Car / Robot
1 / 5
1.5v 3v 4.5v Mini Dc Gear Toy Motor with Reduction Plastic Gearbox for Toy / Toy Car / Robot
1.5v 3v 4.5v Mini Dc Gear Toy Motor with Reduction Plastic Gearbox for Toy / Toy Car / Robot
1.5v 3v 4.5v Mini Dc Gear Toy Motor with Reduction Plastic Gearbox for Toy / Toy Car / Robot
1.5v 3v 4.5v Mini Dc Gear Toy Motor with Reduction Plastic Gearbox for Toy / Toy Car / Robot
1.5v 3v 4.5v Mini Dc Gear Toy Motor with Reduction Plastic Gearbox for Toy / Toy Car / Robot

1.5v 3v 4.5v Mini Dc Gear Toy Motor with Reduction Plastic Gearbox for Toy / Toy Car / Robot

Send Inquiry

Product Description

1.5v 3v 4.5v Mini DC Gear Toy Motor with Reduction Plastic Gearbox
Mini DC Gear Toy Motor
⚙️
Our motors have long life, high efficiency and good stability. Insert the drive inside the motor to capture data more accurately.
Motor Overview Plastic Gearbox Detail
📋 Specifications & Characters
Model Voltage No-load Load Stall
Working (V) Rated (V) Speed (rpm) Current (A) Speed (rpm) Current (A) Torque (N.m) Torque (Kg.m) Power (W) Torque (N.m) Torque (Kg.m) Current (A)
SGP01S-A130-14150-120 3-12.0V 4.5 100 0.2 87 0.5 0.066 0.675 0.4 0.265 2.7 1.25
SGP01S-A130-18100-220 3-12.0V 3.0 50 0.2 40 0.3 0.120 1.233 0.6 0.393 4.003 2.15
📐 Technical Dimensions
Motor Dimensions
Production Display 1 Production Display 2 Production Display 3 Production Display 4 Production Display 5
❓ Frequently Asked Questions
Are you a trading company or a manufacturer?
We are a specialized factory focused on micro DC motors and DC gear motors with over 14 years of industry experience.
What are the available payment terms?
We accept various payment methods including Online Secure Orders (MasterCard, Visa), PayPal, and TT (Telegraphic Transfer) to ensure convenience for our customers.
Can you provide customized motor solutions?
Yes, if you cannot find a suitable motor on our list, we can customize a motor based on your specific voltage, speed, torque, and dimension requirements.
What certifications do your products hold?
Our motors are compliant with CE, FCC, and ISO standards. We can also apply for additional certifications if required by your specific market.
How do you ensure product quality?
We maintain a rigorous quality control process with professional inspectors on every production line. Final products undergo comprehensive testing using Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, and Noise Testers.
What is the typical application for these motors?
These mini DC gear motors are ideal for educational toys, robot kits, DIY toy cars, and small electronic devices requiring high-torque reduction gearboxes.
