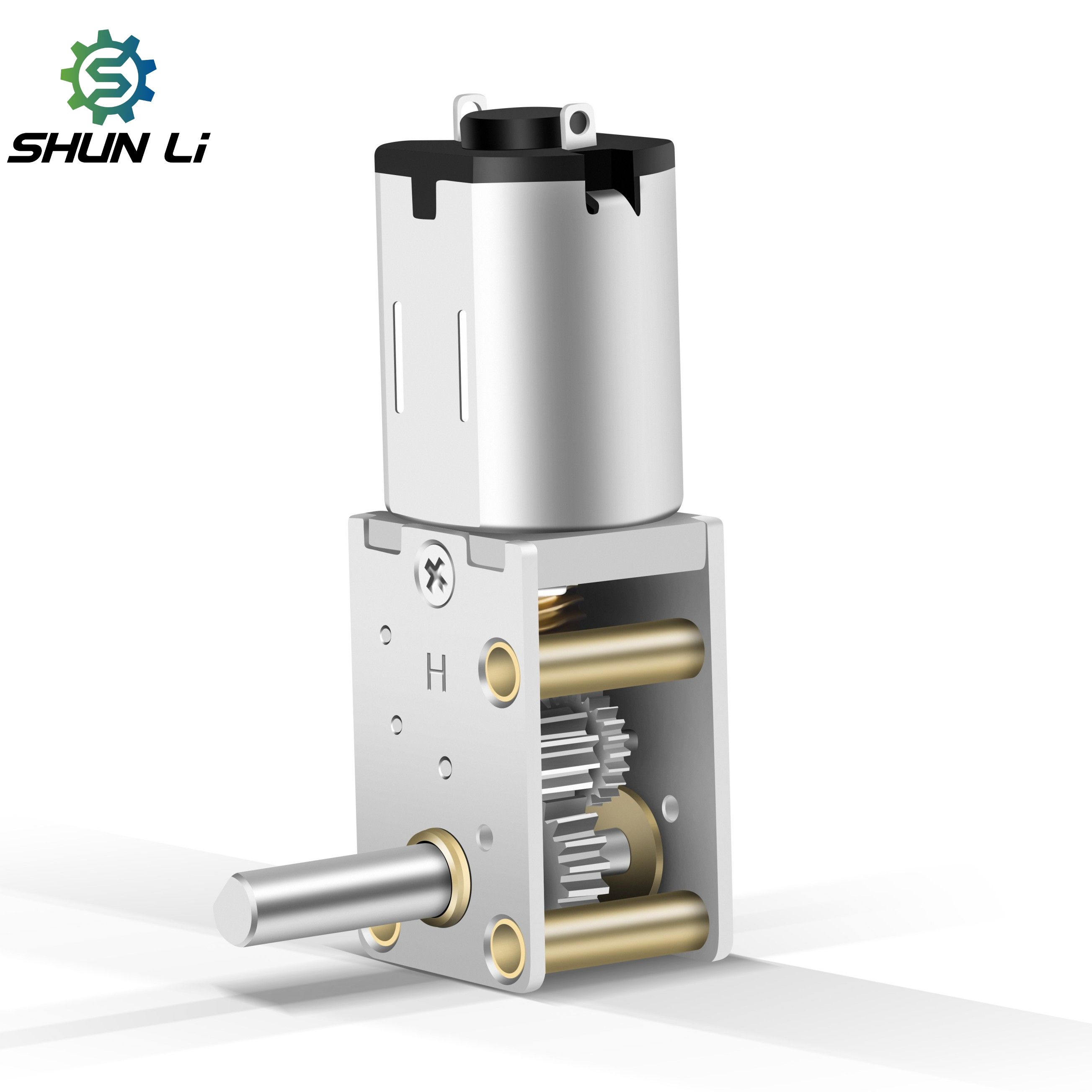

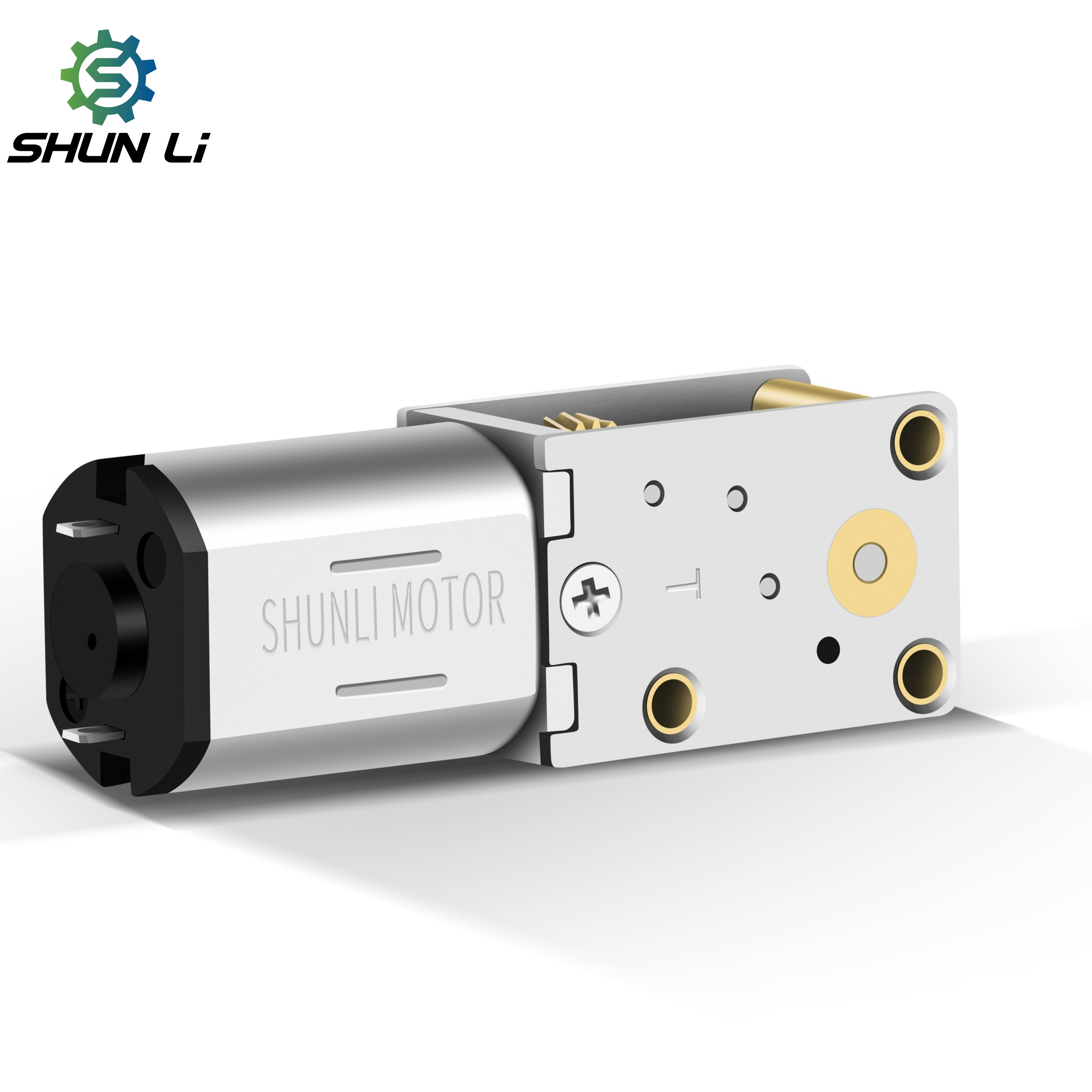

TWG1220-N20 N20 Mini Dc Worm Gear Motor 5v for 3D Printing Pen
TWG1220-N20 N20 Mini Dc Worm Gear Motor 5v for 3D Printing Pen
TWG1220-N20 N20 Mini Dc Worm Gear Motor 5v for 3D Printing Pen
TWG1220-N20 N20 Mini Dc Worm Gear Motor 5v for 3D Printing Pen
1 / 4
TWG1220-N20 N20 Mini Dc Worm Gear Motor 5v for 3D Printing Pen
TWG1220-N20 N20 Mini Dc Worm Gear Motor 5v for 3D Printing Pen
TWG1220-N20 N20 Mini Dc Worm Gear Motor 5v for 3D Printing Pen
TWG1220-N20 N20 Mini Dc Worm Gear Motor 5v for 3D Printing Pen

TWG1220-N20 N20 Mini Dc Worm Gear Motor 5v for 3D Printing Pen

Send Inquiry

Product Description

Product Overview

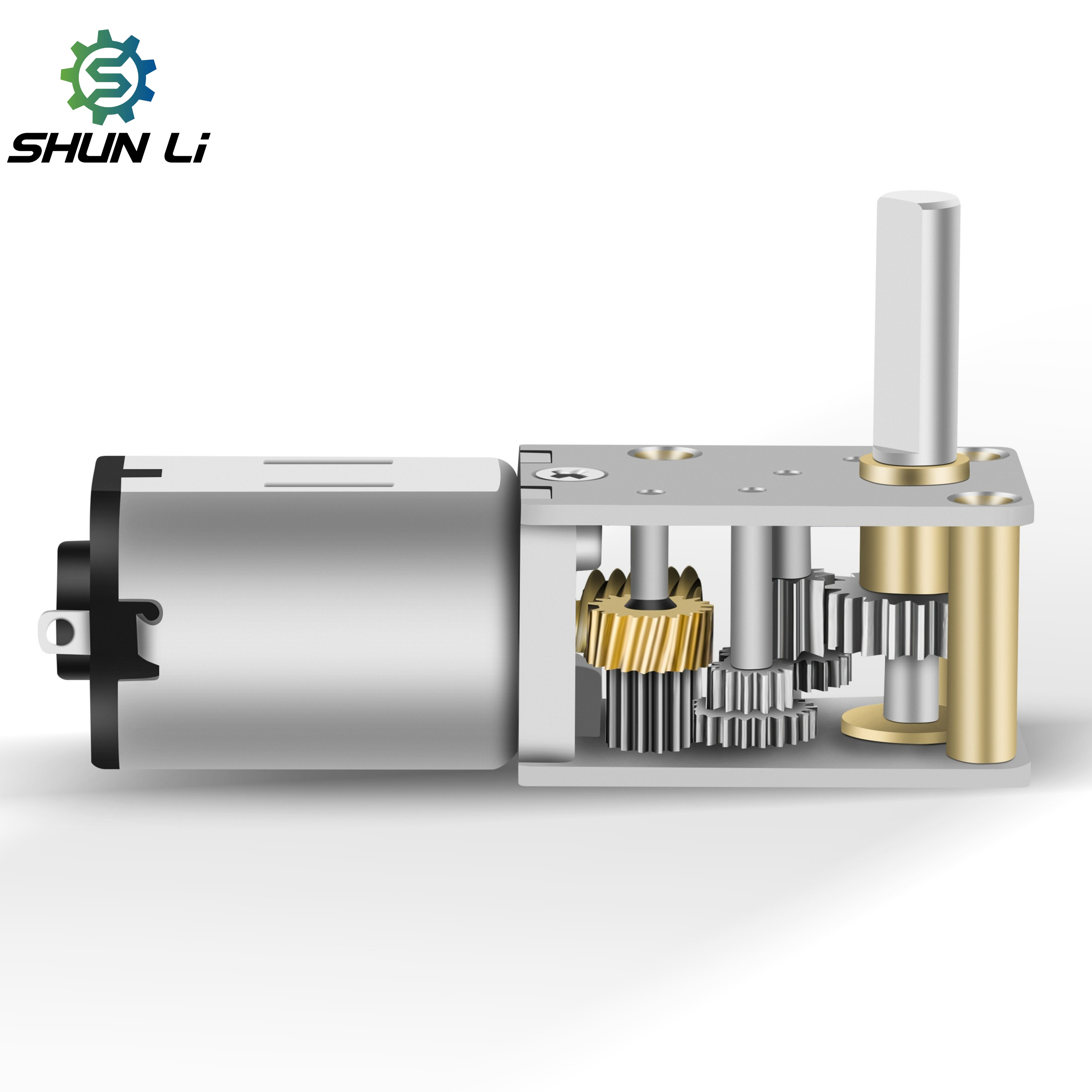

Product Detail
Product Model GM1220EMN20/N30
Gearbox Length 20±0.2mm
Speed 22RPM-145RPM
Voltage 4.5V~12V
Rated Torque 8 mN.m/120 mN.m
Support Customization Transmission dimensions and motor parameters can be customized

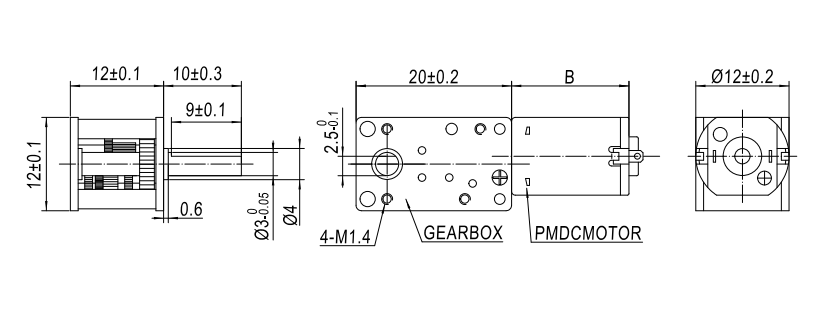

Technical Drawing

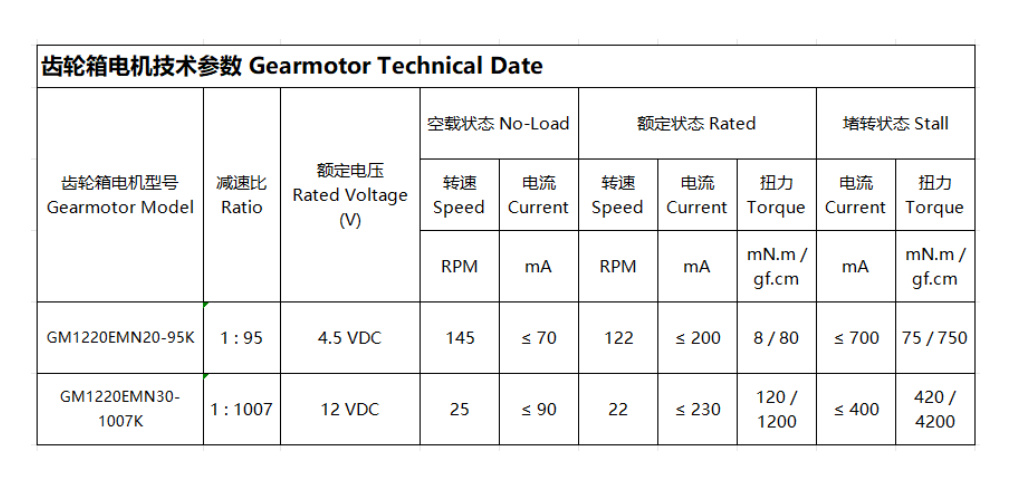

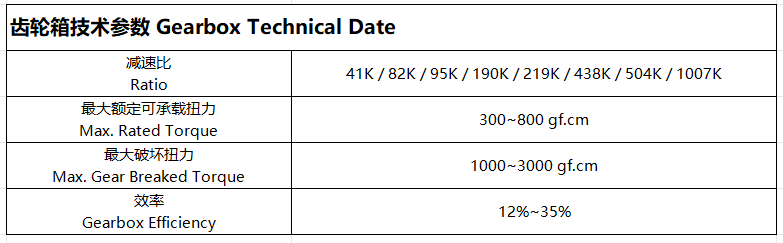

Performance Chart
Application Scene
Gallery Image 1 Gallery Image 2 Gallery Image 3 Gallery Image 4 Gallery Image 5 Gallery Image 6

Frequently Asked Questions

Are you a trading company or a manufacturer?
We are a factory specializing in micro DC motors and DC gear motors for more than 14 years.
What is the payment term for a new customer?
We can draw up an Online Assurance Order, which supports payment via Master Card, Visa, etc. Customers can also pay via PayPal or TT.
Can you customize a motor if I can't find a suitable one on your website?
Yes, we can customize a suitable motor according to our customer's specific technical requirements.
Do you have certificates for your motors?
Yes, we hold CE, FCC, ISO, and other relevant certificates. If you require other specific certifications, we can apply for them for you.
How do you manage Quality Control?
We have professional inspection staff on every production line. Finished motors undergo comprehensive testing using equipment like Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, and Noise Testers.
Is technical support available for motor selection?
Our engineering team provides full support to help you determine the optimal motor parameters, including speed, voltage, and torque specifications for your application.
