Shunli Motor 2215 Smart Lock Motor Steering Gear Automatic Door Lock Micro Motor Gearbox Reduction of Smart Lock
Shunli Motor 2215 Smart Lock Motor Steering Gear Automatic Door Lock Micro Motor Gearbox Reduction of Smart Lock
Shunli Motor 2215 Smart Lock Motor Steering Gear Automatic Door Lock Micro Motor Gearbox Reduction of Smart Lock
Shunli Motor 2215 Smart Lock Motor Steering Gear Automatic Door Lock Micro Motor Gearbox Reduction of Smart Lock
Shunli Motor 2215 Smart Lock Motor Steering Gear Automatic Door Lock Micro Motor Gearbox Reduction of Smart Lock
1 / 5
Shunli Motor 2215 Smart Lock Motor Steering Gear Automatic Door Lock Micro Motor Gearbox Reduction of Smart Lock
Shunli Motor 2215 Smart Lock Motor Steering Gear Automatic Door Lock Micro Motor Gearbox Reduction of Smart Lock
Shunli Motor 2215 Smart Lock Motor Steering Gear Automatic Door Lock Micro Motor Gearbox Reduction of Smart Lock
Shunli Motor 2215 Smart Lock Motor Steering Gear Automatic Door Lock Micro Motor Gearbox Reduction of Smart Lock
Shunli Motor 2215 Smart Lock Motor Steering Gear Automatic Door Lock Micro Motor Gearbox Reduction of Smart Lock

Shunli Motor 2215 Smart Lock Motor Steering Gear Automatic Door Lock Micro Motor Gearbox Reduction of Smart Lock

Send Inquiry

Product Description

Product Banner
Product Description
2215 smart lock motor steering gear automatic door lock micro motor gearbox reduction motor
Main Product View
Reference Drawing

GM2215 & GM2219 Series

GM2215 Drawing
Reference GM2215

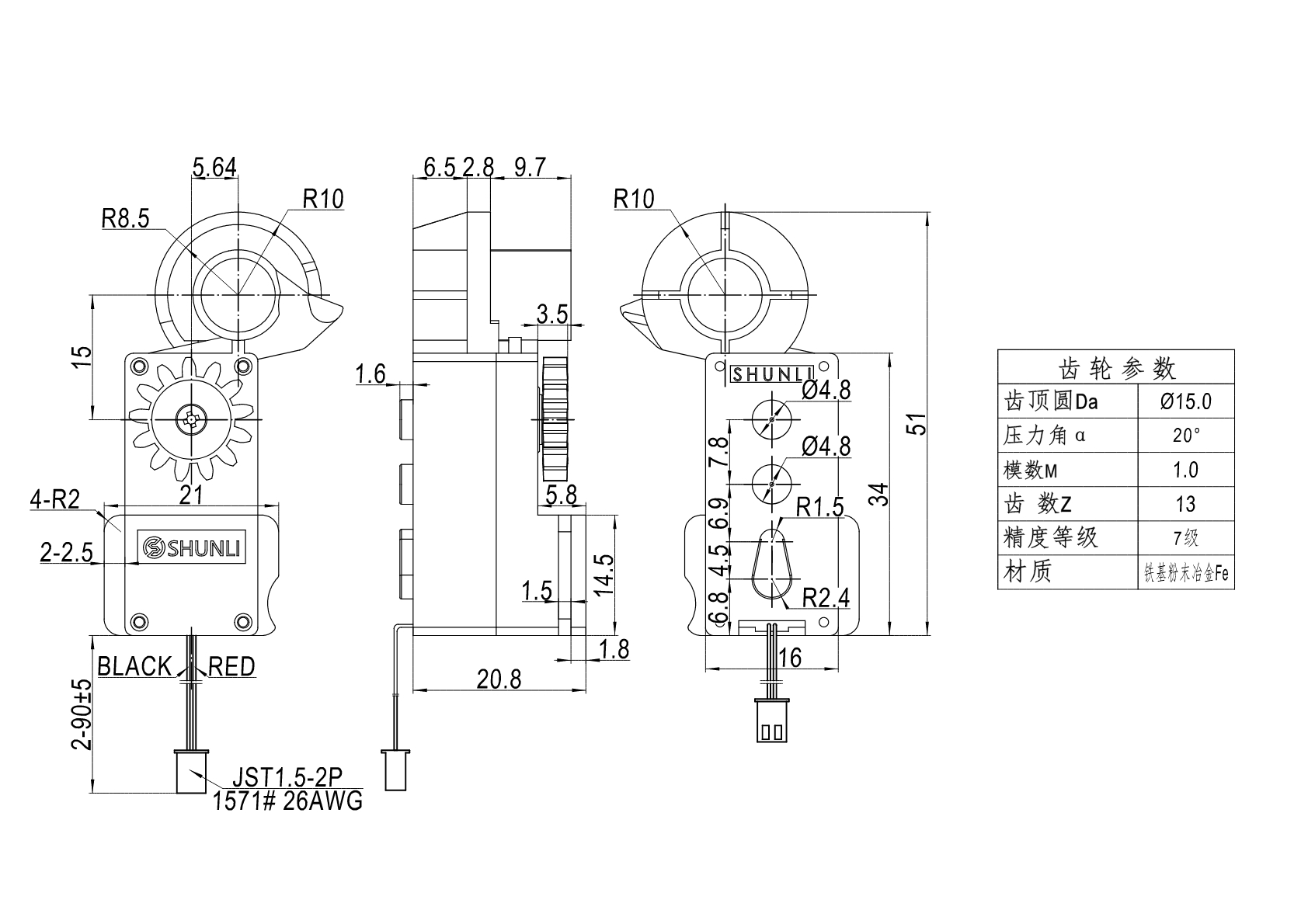

GM2219 Drawing
Reference GM2219
Reference Datasheet

Gearbox Technical Data

Ratio 199K / 241K / 265K
Max. Rated Torque 1.5 ~ 2.5 Kgf.cm
Max. Gear Breaked Torque 4 ~ 5 Kgf.cm
Gearbox Efficiency 45% ~ 60%

Gearmotor Technical Data

Model Ratio Voltage (VDC) No-Load Rated Stall
Speed (RPM) Current (mA) Speed (RPM) Current (mA) Torque (gf.cm) Current (mA) Torque (Kgf.cm)
GM2215FMN20-199K 1:199 4.5 52 ≤ 50 40 ≤ 120 180 ≤ 350 0.18 / 1.8
GM2222FMN20-230K 1:230 4.5 58 ≤ 78 49 ≤ 135 240 ≤ 450 0.2 / 2.0
GM2219FMN20-265K (A) 1:241 4.5 58 ≤ 65 50 ≤ 130 240 ≤ 680 0.2 / 2.0
GM2219FMN20-265K (B) 1:241 4.5 62 ≤ 75 51 ≤ 140 350 ≤ 750 0.22 / 2.2
Product Gallery
Gear Motor Options
Mini DC Motors
Production Detail 1

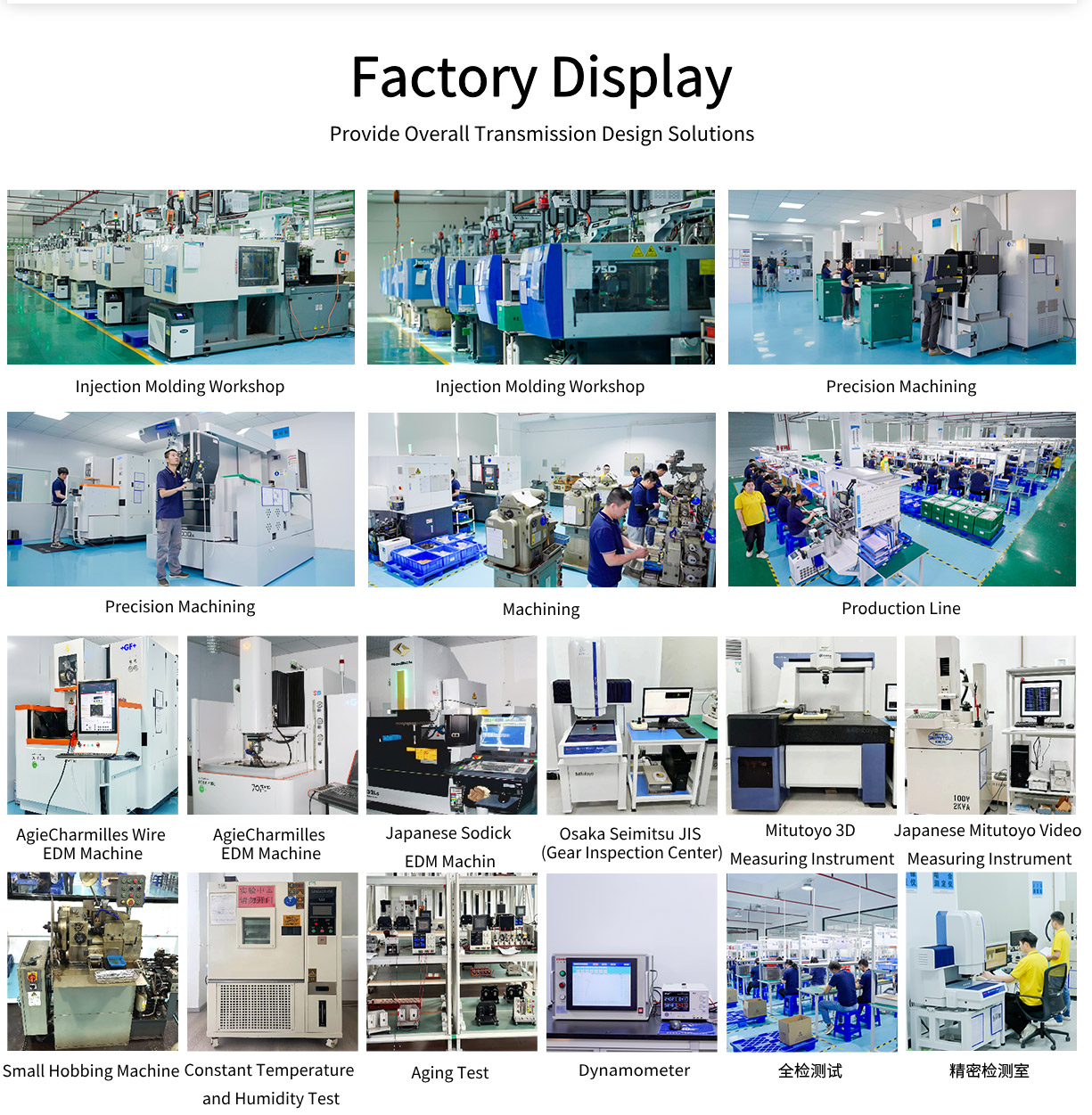

Production Detail 2
Production Detail 3
Production Detail 4
Testing Equipment
Frequently Asked Questions
Are you a trading company or a manufacturer?
We are a factory specializing in micro DC motors and DC gear motors for more than 14 years.
What are the payment terms for new customers?
We support multiple payment methods including Online Assurance Orders (Credit Card, Visa, etc.), PayPal, and TT.
Can you customize a motor if I can't find a suitable one on the website?
Yes, we provide full customization services to meet specific requirements for your applications.
Do your motors have official certifications?
Yes, our motors carry CE, FCC, ISO, and other relevant certificates. We can also apply for specific certificates upon request.
How do you ensure product quality?
We have professional QC staff at every production stage. Finished products undergo rigorous testing with Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, and Noise Testers.
Do you provide technical support?
Yes, we offer technical feedback and professional guidance to ensure the best performance of our motors in your products.
