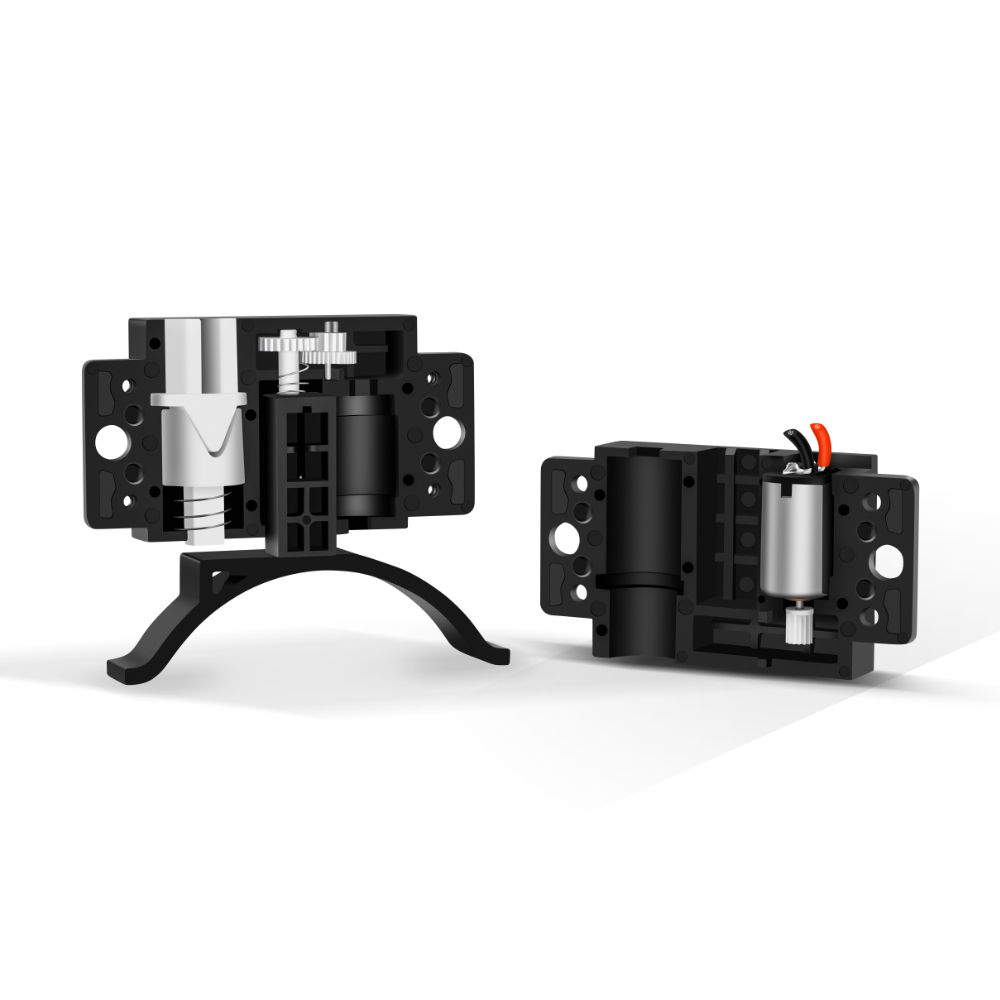

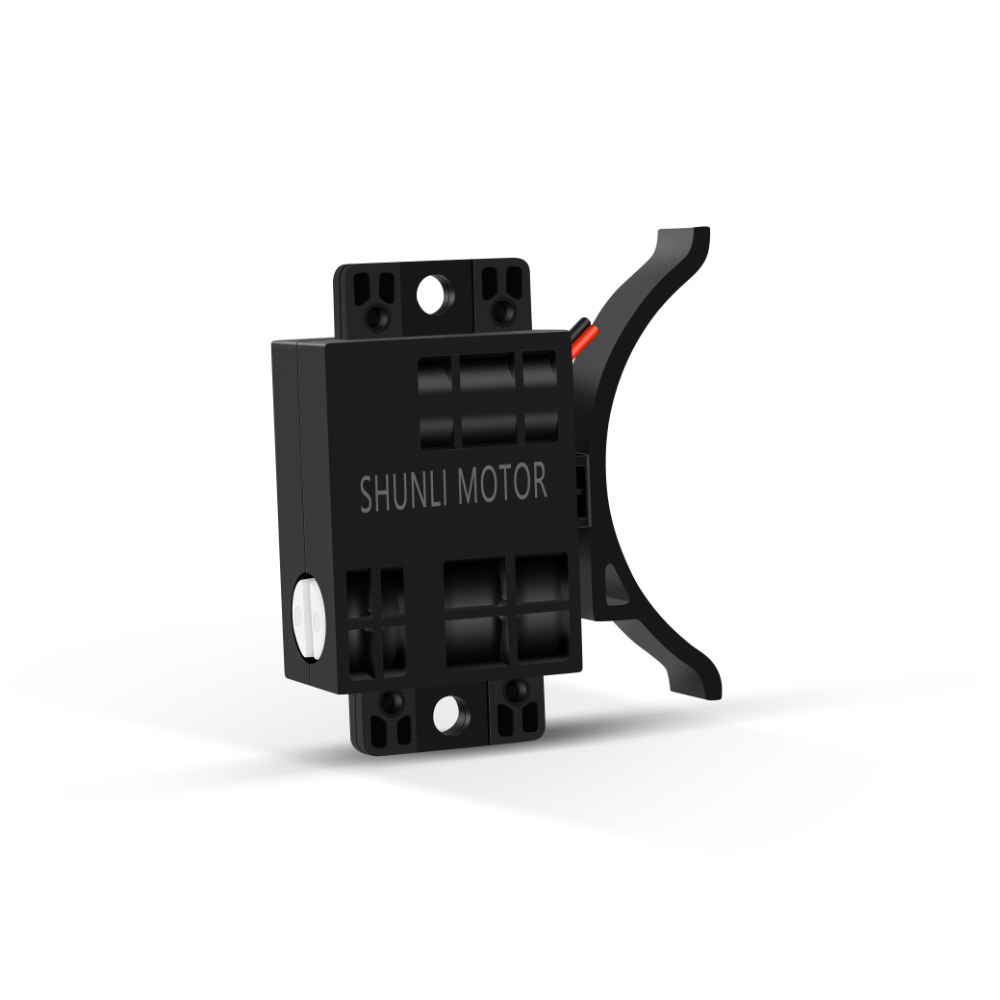

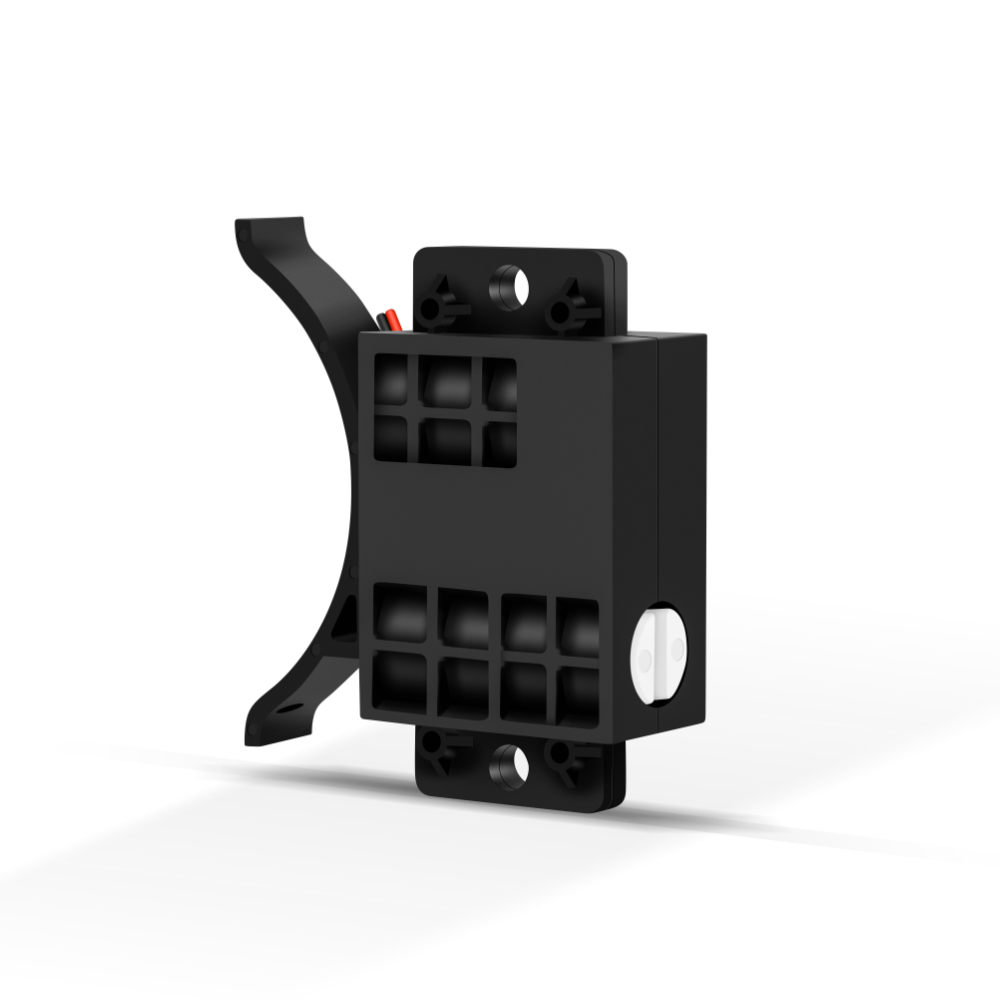

Strata Motor
Strata Motor
Reliable performance with 3V, 6V, and 12V options, ranging from 65RPM to 85RPM. Designed for precision and high torque applications like smart locks and automated coin-operated systems.
| Ratio | Max. Rated Torque | Max. Gear Breaked Torque | Gearbox Efficiency |
|---|---|---|---|
| 241k | 1.5 ~ 2.0 Kgf.cm | 4 ~ 5 Kgf.cm | 45% ~ 60% |
| Model | Ratio | Voltage (VDC) | No-Load | Rated | Stall | ||||
|---|---|---|---|---|---|---|---|---|---|
| Speed(RPM) | Current(mA) | Speed(RPM) | Current(mA) | Torque(Kgf.cm) | Current(mA) | Torque(Kgf.cm) | |||
| GM2240 | 1 : 241 | 4.5 | 52 | ≤ 50 | 40 | ≤ 120 | 1.8 | ≤ 350 | 0.18 |
| 58 | ≤ 65 | 50 | ≤ 130 | 2.4 | ≤ 680 | 2.0 | |||
| 68 | 75 | 56 | ≤ 140 | 2.6 | ≤ 750 | 2.2 | |||
| Model | Voltage (VDC) | No-Load Speed (RPM) | No-Load Current (mA) | Rated Torque (gf.cm) | Stall Current (mA) |
|---|---|---|---|---|---|
| SL-N20-04510500 | 4.5 | 10500 | ≤ 30 | 2.0 | ≤ 300 |
| SL-N20-04514000 | 4.5 | 14000 | ≤ 40 | 2.5 | ≤ 680 |
| SL-N20-04516500 | 4.5 | 16500 | ≤ 50 | 2.5 | ≤ 750 |
Professional R&D and Quality Control: With over 14 years of experience, we implement rigorous checks at every production stage. Quality is the basis of our development, utilizing advanced testing equipment like Hardness Testers, Salt Spray Chambers, and Noise Testers to ensure excellence.
